20785 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

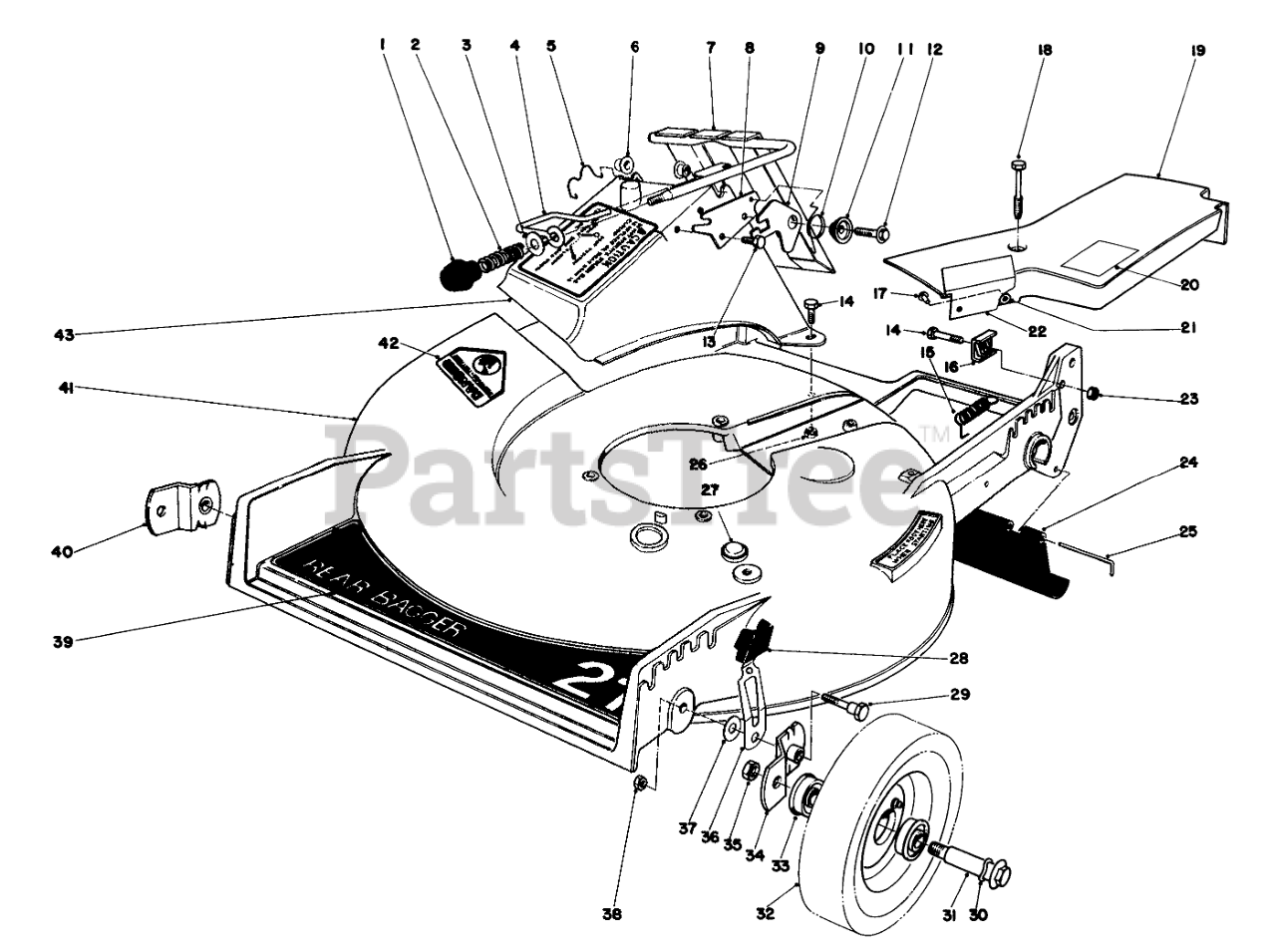

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$8.99

$

Usually ships in 3-6 days

0

3

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 33-4830

DOOR RETAINER

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 33-5660

DOOR & HANDLE WA

$

$

Not available

8

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

9

Toro 424010

Latch-Door

$

$

Currently unavailable

10

Toro 334860

Spring-Torsion

$

$

Currently unavailable

11

Toro 23-1180

Latch Spacer

$

$

Not available

12

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

14

Toro 321-7

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

15

Toro 38-0040

IDLER SPRING

$24.99

$

Usually ships in 3-6 days

0

16

Toro 29-9550

CLAMP-CABLE

$

$

Not available

17

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

18

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

19

Toro 38-8741

Belt Cover (Incl. Ref. #17 & 21-22)
(Superseded to 52-7404)

$71.99

$

Usually ships in 3-6 days

0

20

Toro 3311-299

Sticker Grease

$

$

Not available

21

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 38-8730

HEAT SHIELD

$

$

Not available

23

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

24

Toro 29-9180

SHIELD - TRAILING

$59.99

$

Usually ships in 3-6 days

0

25

Toro 33-3203

Rod Shield
(Superseded to 47-4682)

$

$

Not available

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 2410-54

PLUG

$

$

Not available

28

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

29

Toro 25-3440

PIVOT SCREW

$

$

Not available

30

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

31

Toro 3-2652

Bolt

$

$

Not available

32

Toro 38-6000

Wheel & Tire Assembly (Incl. Ref. #33)

$

$

Not available

33

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

34

Toro 24-7710

PIVOT ARM ASM A

$147.99

$

Usually ships in 3-6 days

0

35

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

36

Toro 33-4850

SPRING ARM ASM (R&S)

$

$

Not available

37

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

38

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

39

Toro 40-2250

Decal-Deck
(Superseded to 44-0450)

$

$

Not available

40

Toro 23-9120

PIVOT ARM ASM B

$

$

Not available

41

Toro 11-0199

Housing
(Superseded to 11-4089)

$

$

Not available

42

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

43

Toro 36-1350

DISCHARGE CHUTE B

$356.99

$

Usually ships in 3-6 days

0
