20785 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

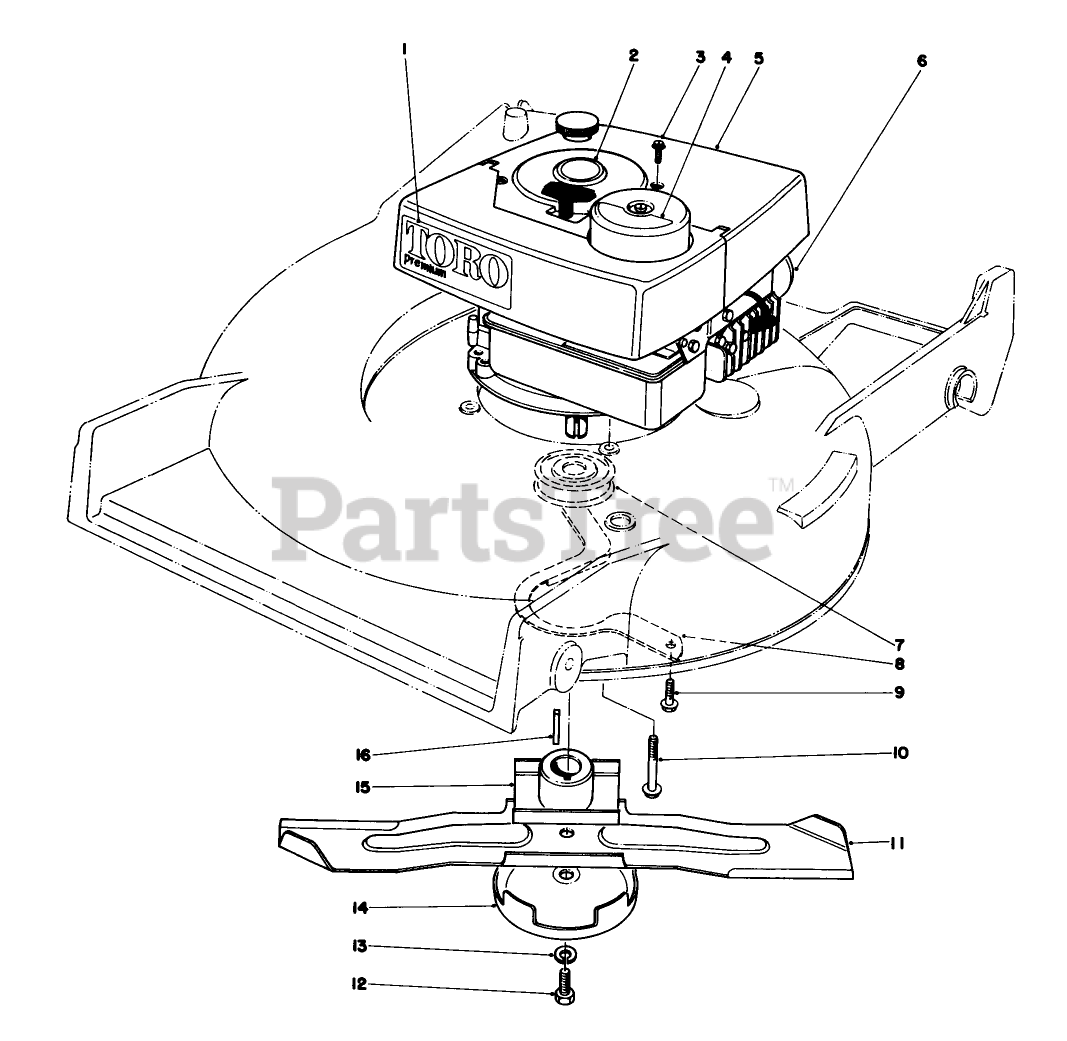

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 40-2570

Decal
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 38-0790

Decal-Shroud

$

$

Not available

3

Toro 3210494

Screw

$

$

Currently unavailable

4

Toro 38-0780

Decal Air Filter

$

$

Not available

5

Toro 37-9831

SHROUD

$

$

Not available

6

Toro 221-603

Engine

$

$

Currently unavailable

7

Toro 21-5580

DRIVER PULLEY

$

$

Not available

8

Toro 39-1840

BELT GUIDE

$

$

Not available

9

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

10

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

12

Toro 26-0670

SCREW-BLADE

$

$

Not available

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

14

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$16.99

$

Usually ships in 3-6 days

0

15

Toro 26-0770

Blade Retainer
(Superseded to 46-3490)

$109.99

$

In Stock, only 1 left!

0

16

Toro 27-6300

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0
