20784 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) DECK AND WHEEL ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

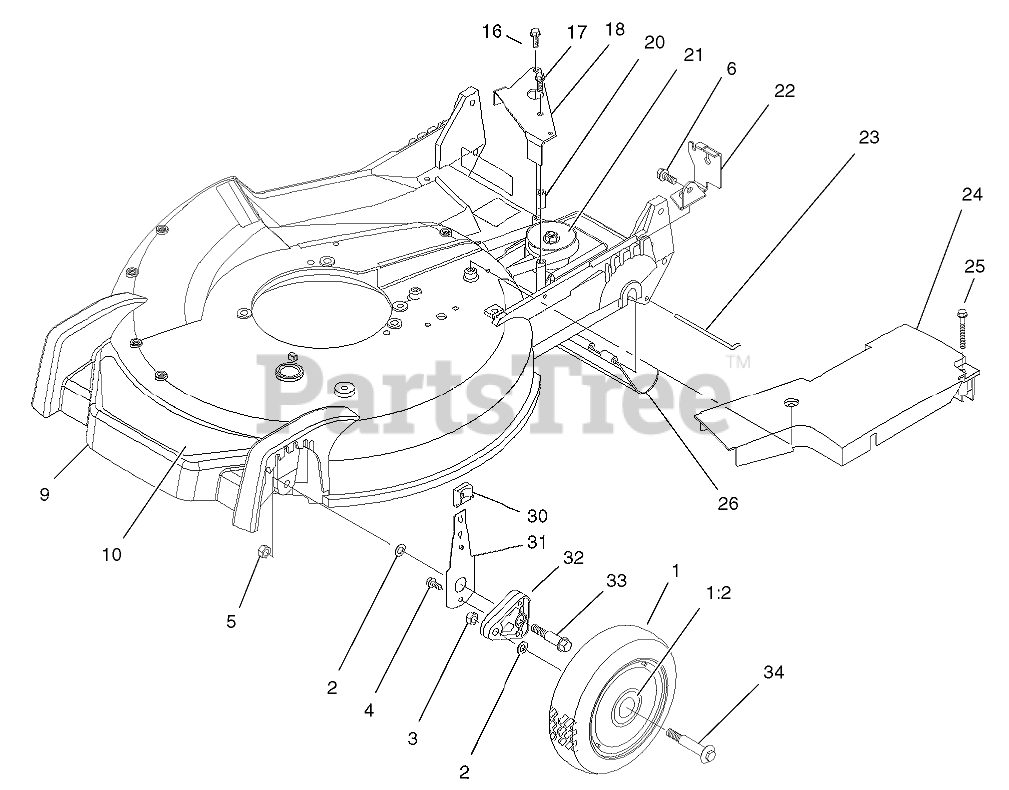

DECK AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 100-1516

WHEEL ASM

$32.99

$

Usually ships in 3-6 days

0

1:2

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

2

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

3

Toro 603773

NUT

$2.99

$

In Stock, Qty 10

0

4

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

5

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 105-1309

HOUSING ASM

$

$

Not available

10

Toro 100-5953

DECAL-DECK

$

$

Not available

16

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

18

Toro 99-1513-03

BRACKET-TRANSMISSION ACTUATOR

$11.99

$

Usually ships in 3-6 days

0

20

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

21

Toro 104-7618

GEAR CASE ASM

$320.99

$

Usually ships in 3-6 days

0

22

Toro 99-1512-03

BRACKET-CABLE, TRACTION

$

$

Not available

23

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

24

Toro 104-7906

COVER-BELT

$

$

Not available

25

Toro 37-7260

Screw-HH (only on: 20784)

$6.49

$

In Stock, only 2 left!

0

25

Toro 37-7260

Screw-HH (only on: 20783)

$6.49

$

In Stock, only 2 left!

0

26

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

30

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

31

Toro 66-0541

FRONT SPRING ARM ASM

$18.99

$

In Stock, Qty 6

0

32

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

33

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

34

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0
