20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) ENGINE ASSEMBLY Parts Diagram
53cm Super Recycler Walk-Behind Mower

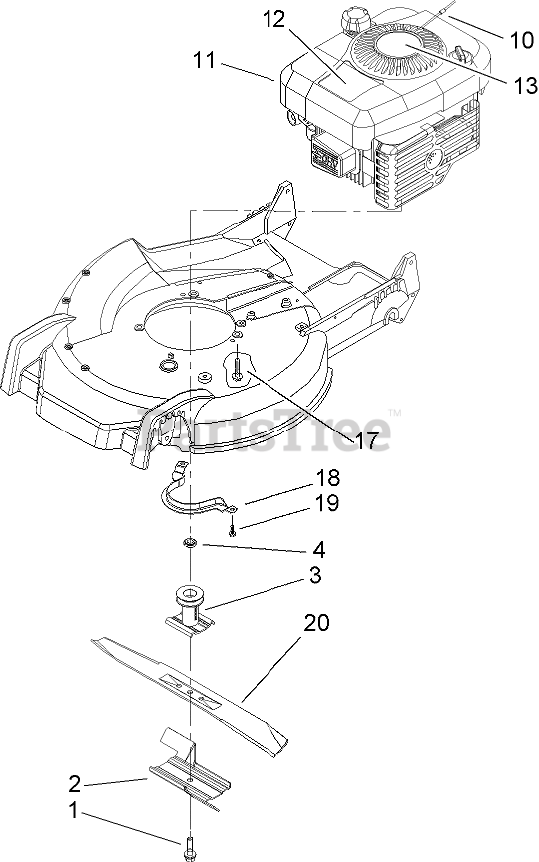

ENGINE ASSEMBLY Parts Diagram
$3.49
$
In Stock, Qty 20+
Toro 105-6848-03
Accelerator-Blade
$18.99
$
In Stock, only 1 left!
Toro 106-3987
DRIVER-BLADE
$31.99
$
In Stock, only 2 left!
Toro 106-3999
Spacer-Driver
$3.49
$
In Stock, only 4 left!
Toro 2210-316
STOP-ROPE
$7.99
$
Usually ships in 3-6 days
11
ENGINE-BRIGGS AND STRATTON NO. 122602-0120-E1
Note: Not serviced separately
$
$
Not available
Toro 99-6015
DECAL-RECOIL
$6.99
$
Usually ships in 3-6 days
Toro 107-8921
DECAL-RECOIL, RECYCLER
$
$
Not available
Toro 32144-102
SCREW-HWH
$3.49
$
Usually ships in 3-6 days
Toro 66-0570-03
BRACKET-GUIDE, BELT
$13.99
$
In Stock, only 2 left!
Toro 32144-70
SCREW-HWHTF
$2.99
$
In Stock, Qty 20+
$22.99
$
In Stock, Qty 20+
