20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 230002004 - 230999999) (2003) ENGINE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

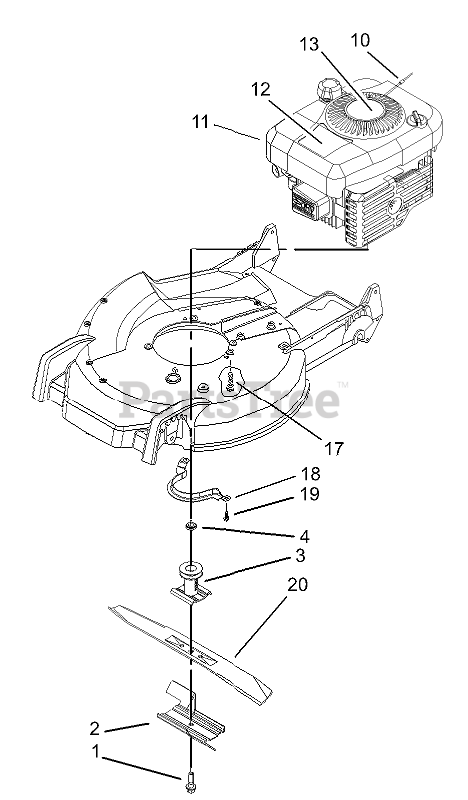

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

3

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

4

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

10

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

11

Engine-B & S Model 122602-0120-E1 (only on: 20783)

Note: Not serviced separately

$

$

Not available

11

Engine-B & S Model 122607-0116-E1 (only on: 20784)

Note: Not serviced separately

$

$

Not available

12

Toro 99-6015

DECAL-RECOIL

$6.99

$

Usually ships in 3-6 days

0

13

Toro 105-8573

Decal-Recoil

$

$

Not available

17

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0
