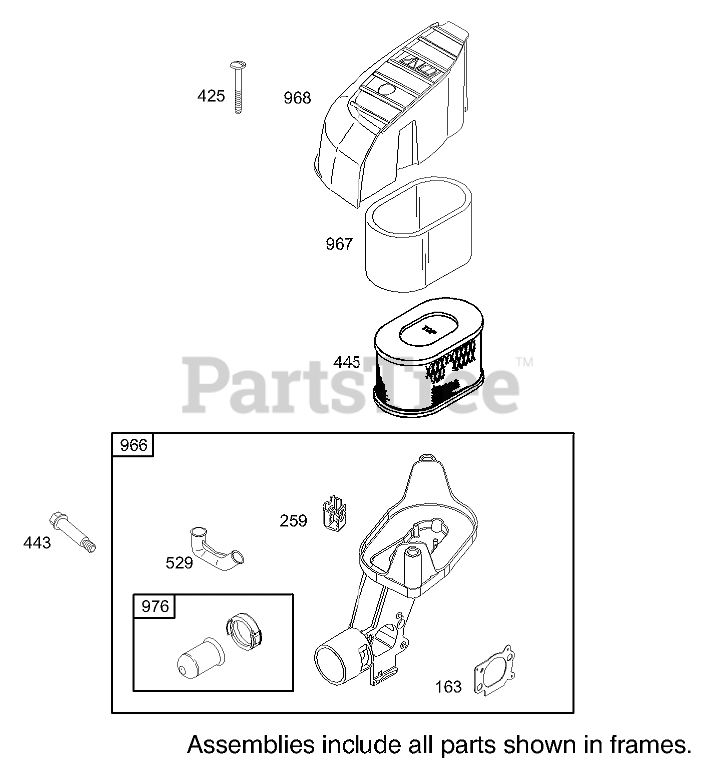

20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 230002004 - 230999999) (2003) AIR CLEANER ASSEMBLY BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

AIR CLEANER ASSEMBLY BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

  • Title
163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Valve Gasket Set-Ref. 1095.

$4.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, Qty 5

0

163

Briggs & Stratton 691894

Gasket?Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

259

Briggs & Stratton 691189

Bracket?Clamp, Casing

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

425

Briggs & Stratton 690244

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

443

Briggs & Stratton 690255

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 3 left!

0

445

Briggs & Stratton 690610

Filter?Air Cleaner Cartridge
(Superseded to 697029)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 20+

0

529

Briggs & Stratton 692937

Grommet

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 13

0

966

Briggs & Stratton 690243

Base?Primer, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

967

Briggs & Stratton 273356

Filter-Pre Cleaner
(Superseded to 273356S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 6

0

968

Briggs & Stratton 692692

Cover?Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

976

Briggs & Stratton 694395

Primer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0
