20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 230000001 - 230002003) (2003) CYLINDER ASSEMBLY BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

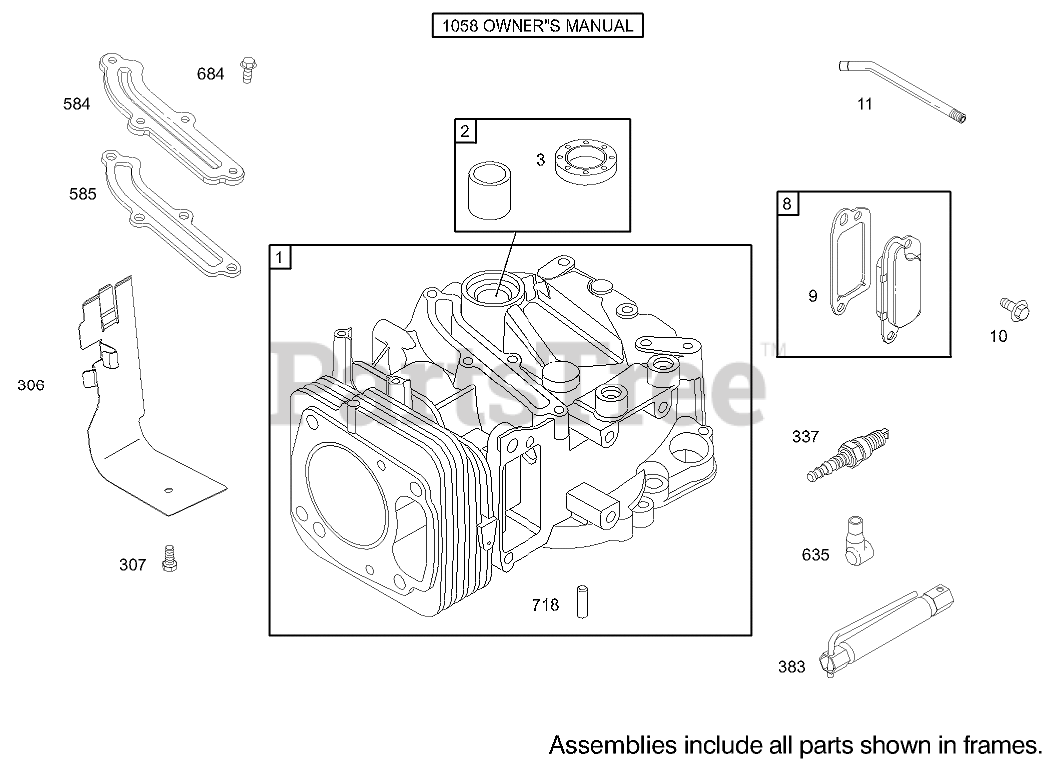

CYLINDER ASSEMBLY BRIGGS AND STRATTON MODEL 122607-0116-E1 Parts Diagram

  • Title

1

Briggs & Stratton 499678

Cylinder Assembly
(Superseded to 790363)

Note: Obtain parts from www.briggsandstratton.com

$219.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 13

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 13

0

8

Briggs & Stratton 495786

Breather ASM
(Superseded to 590395)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 691125

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691260

Tube?Breather
(Superseded to 691781)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 691232

Shield?Cylinder

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692051

Sparkplug
(Superseded to RC12YC)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 16

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

584

Briggs & Stratton 692342

Cover?Breather Passage
(Superseded to 697734)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 1 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

684

Briggs & Stratton 690345

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

1058

Toro 274979

Manual-Owner's

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
