20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

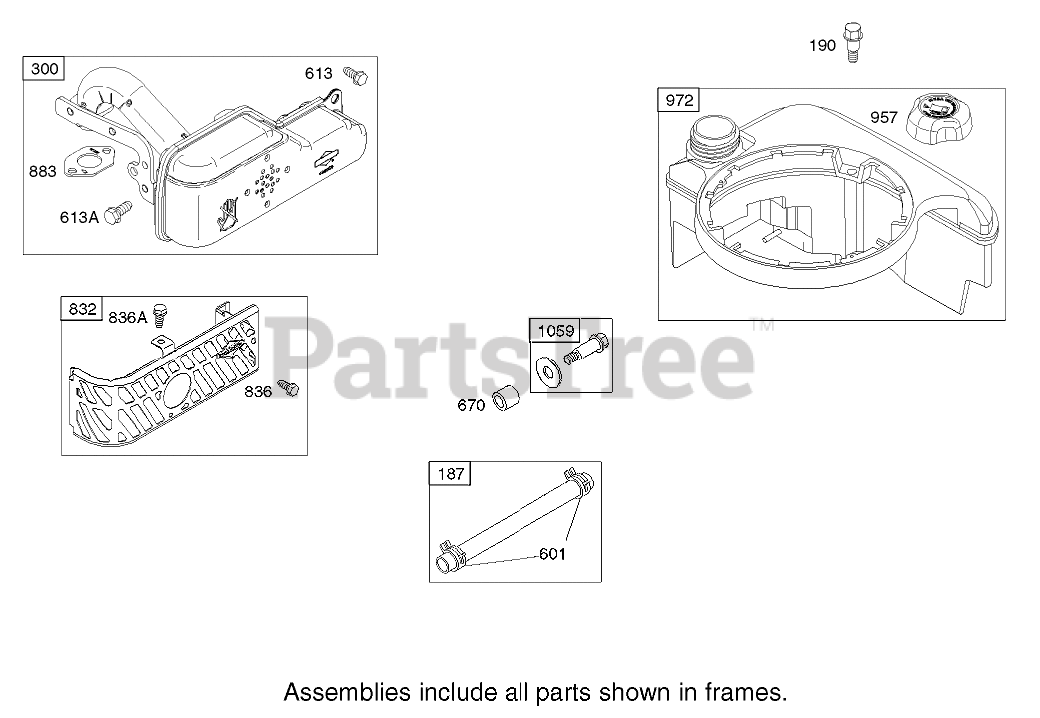

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

  • Title

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 690940

Screw

$3.99

$

In Stock, Qty 14

0

300

Briggs & Stratton 694248

Muffler
(Superseded to 692275)

$

$

Not available

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

613A

Briggs & Stratton 691140

Screw

$3.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 692294

Spacer-Tank, Fuel

$4.99

$

In Stock, Qty 5

0

832

Briggs & Stratton 691466

Guard?Muffler

$54.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

836A

Briggs & Stratton 691147

Screw

$3.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$4.49

$

In Stock, Qty 20+

0

957

Briggs & Stratton 692046

Cap-Tank, Fuel

$5.49

$

In Stock, Qty 10

0

972

Briggs & Stratton 499618

Tank?Fuel
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

1059

Briggs & Stratton 692311

Screw and Washer Kit

$7.49

$

In Stock, only 1 left!

0
