20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CRANKCASE ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

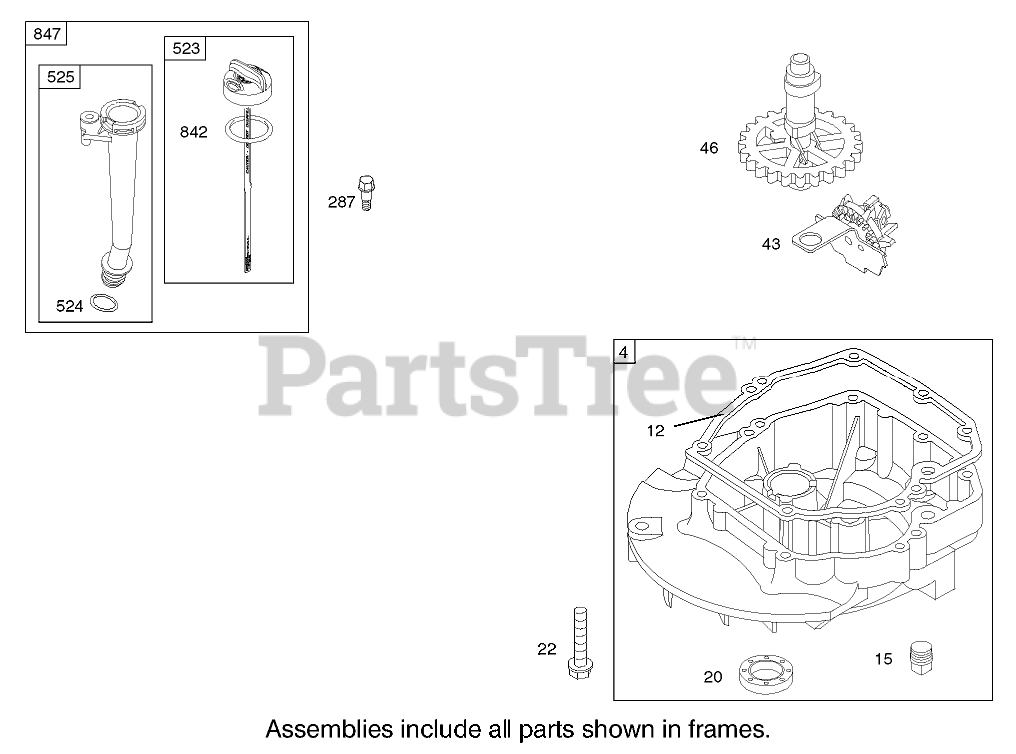

CRANKCASE ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

  • Title

4

Briggs & Stratton 499619

Sump?Engine
(Superseded to 493279)

$120.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

Plug-Drain, Oil

$5.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 691997

Slinger-Oil, Governor

$25.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 694039

Camshaft

$65.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 690940

Screw

$3.99

$

In Stock, Qty 14

0

523

Briggs & Stratton 499621

Dipstick

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, Qty 7

0

525

Briggs & Stratton 495265

Tube-Dipstick

$

$

Not available

842

Briggs & Stratton 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 692047

Dipstick Tube ASM

$

$

Not available
