20783 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

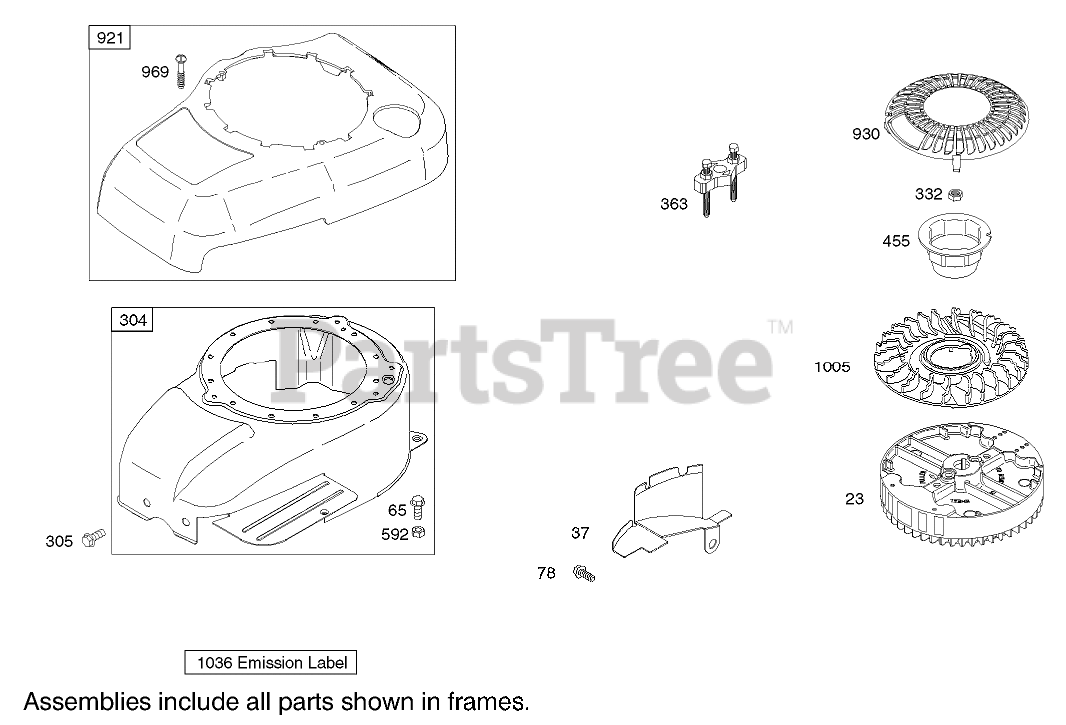

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON MODEL 122602-0120-E1 Parts Diagram

  • Title

23

Briggs & Stratton 696569

Flywheel
(Superseded to 697610)

$199.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 694086

Guard-Flywheel
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 690837

Screw

$3.49

$

In Stock, Qty 20+

0

78

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 499677

Housing?Blower

$

$

Not available

305

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690662

Nut

$5.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 695161

Cup/Screen ASM

$37.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 690800

Nut

$3.99

$

In Stock, Qty 13

0

921

Briggs & Stratton 692699

Cover?Housing, Blower

$55.99

$

Usually ships in 2-12 days

0

930

Briggs & Stratton 692691

Guard?Rewind

$22.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 691138

Screw

$3.99

$

In Stock, Qty 18

0

1005

Briggs & Stratton 691346

Fan?Flywheel

$26.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 696767

Label?Emission

$11.99

$

Usually ships in 2-12 days

0
