20781 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) GASKET ASSEMBLY BRIGGS AND STRATTON MODEL 12H802-1720-B1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

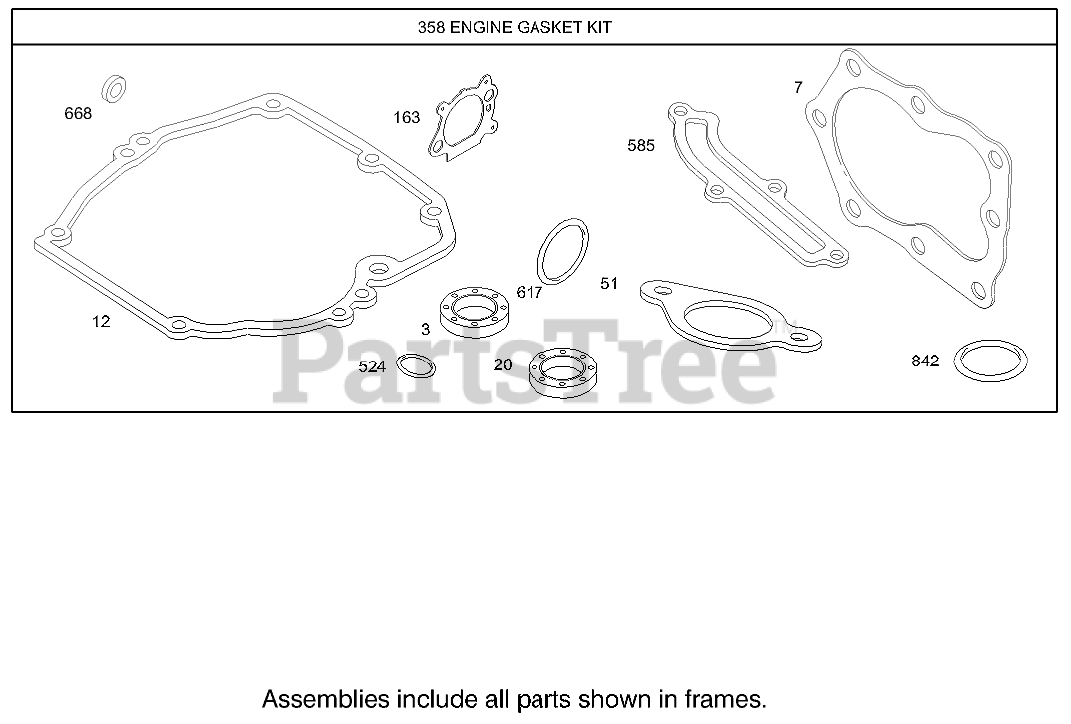

GASKET ASSEMBLY BRIGGS AND STRATTON MODEL 12H802-1720-B1 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 17

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 692249

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 497316

Engine Gasket Set
(Superseded to 590508)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 692296

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 3 left!

0

524

Briggs & Stratton 692296

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

In Stock, only 3 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set-Ref. 358.

$6.99

$

In Stock, only 1 left!

0

585

Briggs & Stratton 691879

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

668

Briggs & Stratton 493823

Spacer

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, only 1 left!

0

668

Briggs & Stratton 493823

Spacer

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0
