20781 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 230000001 - 230999999) (2003) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

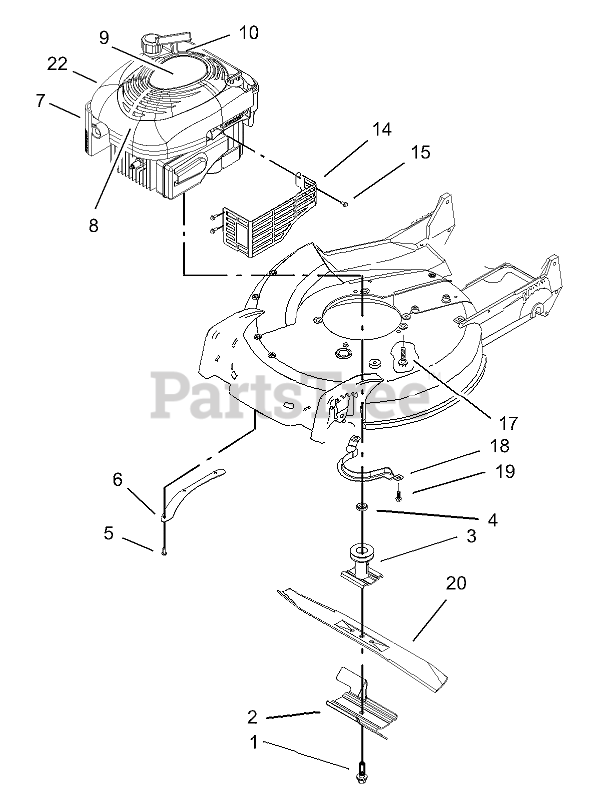

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

3

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

4

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

5

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

6

Toro 105-1316-03

SHEET-LIP

$8.99

$

Usually ships in 3-6 days

0

7

Engine-Briggs And Stratton Model No. 12h802-1720-B1

Note: Not serviced separately

$

$

Not available

8

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

9

Toro 105-8572

Decal-Recoil

$

$

Not available

10

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

14

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

15

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

17

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 66-0570-03

BRACKET-GUIDE, BELT

$13.99

$

In Stock, only 2 left!

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

20

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 17

0

22

Toro 105-8564

Shroud-Quantum

$

$

Not available

22

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0
