20781 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

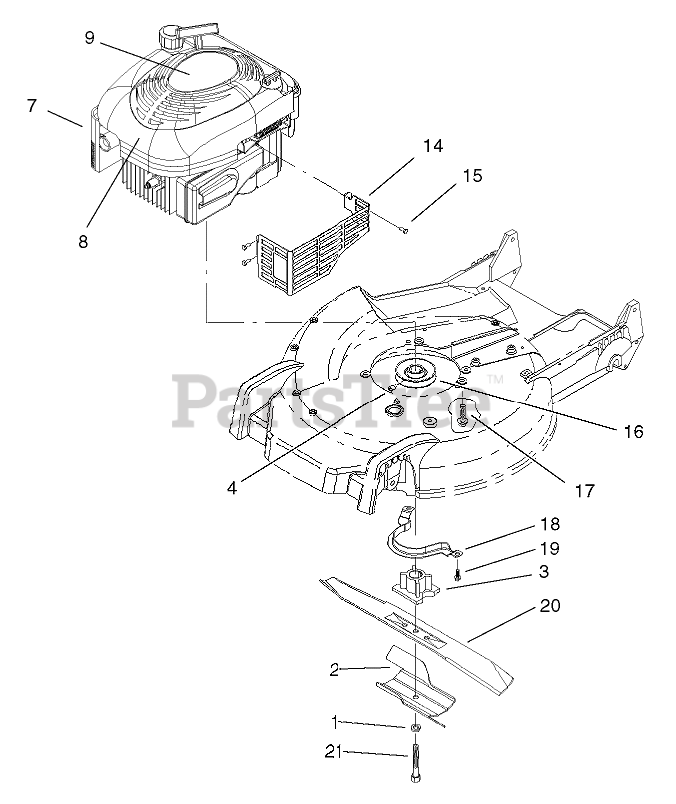

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$18.99

$

In Stock, Qty 9

0

3

Toro 104-1007

RETAINER-BLADE

$72.99

$

In Stock, only 1 left!

0

4

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

7

Engine-Quantum 6.0, (Briggs and Stratton 12h802-1720-B1)

Note: Not serviced separately

$

$

Not available

8

Toro 98-3206

Decal

$2.49

$

In Stock, only 1 left!

0

9

Toro 105-8572

Decal-Recoil

$

$

Not available

10

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

14

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

15

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

16

Toro 100-1102

PULLEY ASM

$120.99

$

Usually ships in 3-6 days

0

17

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 99-1526-03

GUIDE-BELT

$

$

Not available

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

21

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$21.99

$

In Stock, Qty 5

0

23

Toro 32144-4

SCREW-HWH

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

24

Toro 99-0905

GUARD-FLYWHEEL

Note: Not illustrated

$

$

Not available
