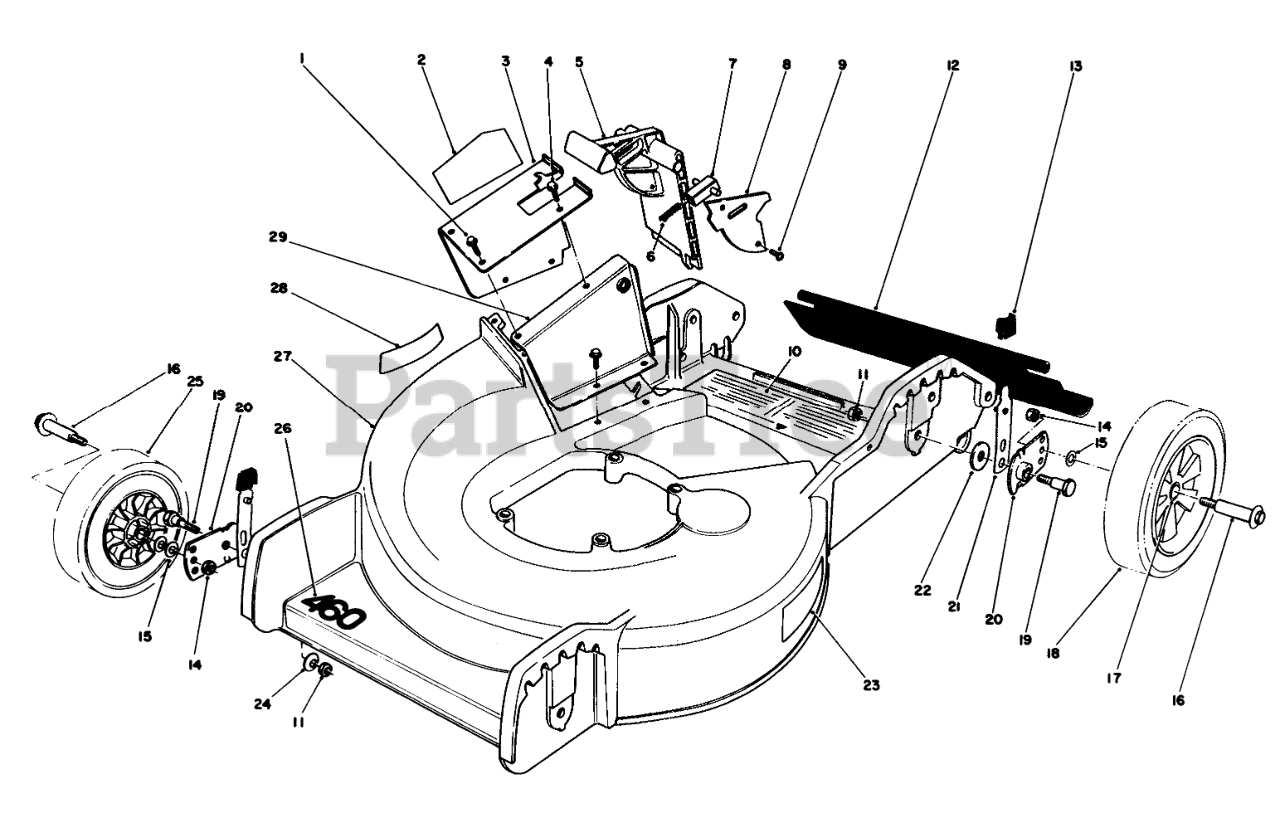

20780 C - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

2

Toro 46-2400

Decal-Danger

$

$

Not available

3

Toro 49-8040

Tunnel-Outer

$

$

Currently unavailable

4

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

5

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

6

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

7

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

8

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$14.99

$

Usually ships in 3-6 days

0

9

$2.99

$

Usually ships in 3-6 days

0

10

Toro 40-2940

Danger-Decal

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

13

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

14

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

17

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

18

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #17)

$

$

Not available

19

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

20

Toro 33-0400

PIVOT ARM ASSY

$38.99

$

Usually ships in 3-6 days

0

21

Toro 25-8000

SPRING ARM ASM

$

$

Not available

22

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

23

Toro 40-2730

Decal-Step

$

$

Not available

24

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

25

Toro 27-6210

Wheel & Tire Assembly (Inc. Ref. #17)

$

$

Not available

26

Toro 46-8330

Decal-460

$

$

Not available

27

Toro 12-1089

HSG & CARTON

$1078.99

$

Usually ships in 3-6 days

0

28

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

29

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available
