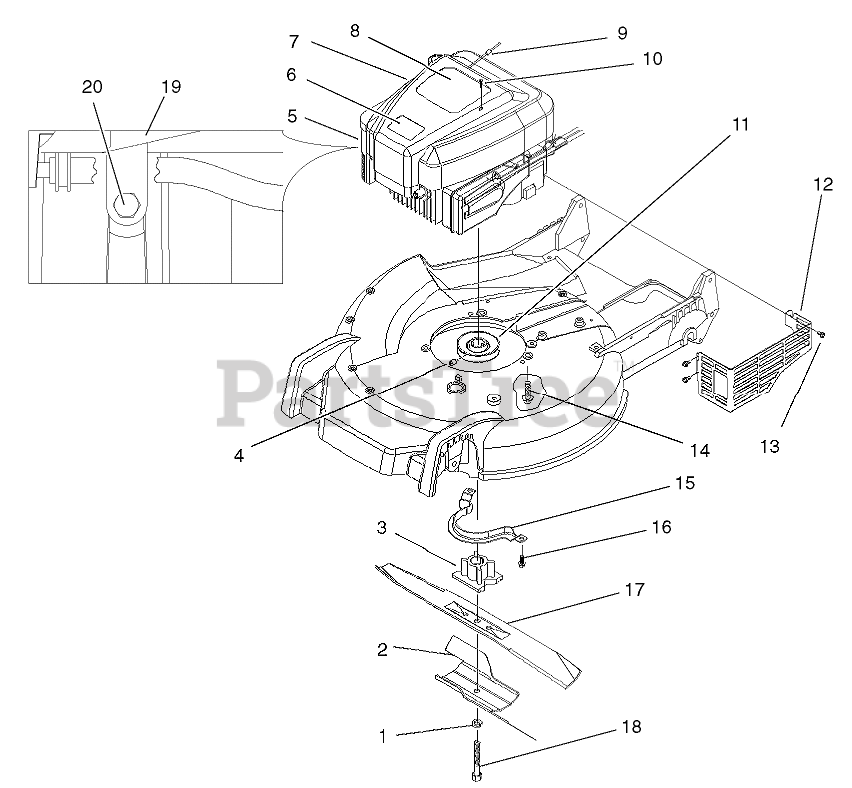

20779 - Toro 53cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) QUANTUM ENGINE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

QUANTUM ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$18.99

$

In Stock, only 1 left!

0

3

Toro 104-1007

RETAINER-BLADE

$72.99

$

In Stock, only 1 left!

0

4

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

5

Engine-Briggs and Stratton, 125K02-0189-E1

Note: Not serviced

$

$

Not available

6

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

7

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

8

Toro 100-5952

DECAL-ENGINE

$

$

Not available

9

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

10

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

11

Toro 100-1102

PULLEY ASM

$115.99

$

Usually ships in 3-6 days

0

12

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

13

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

14

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

15

Toro 99-1526-03

GUIDE-BELT

$

$

Not available

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

17

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 17

0

18

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0

19

Toro 99-0905

GUARD-FLYWHEEL

$

$

Not available

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
