20779 - Toro 53cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE & BLADE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

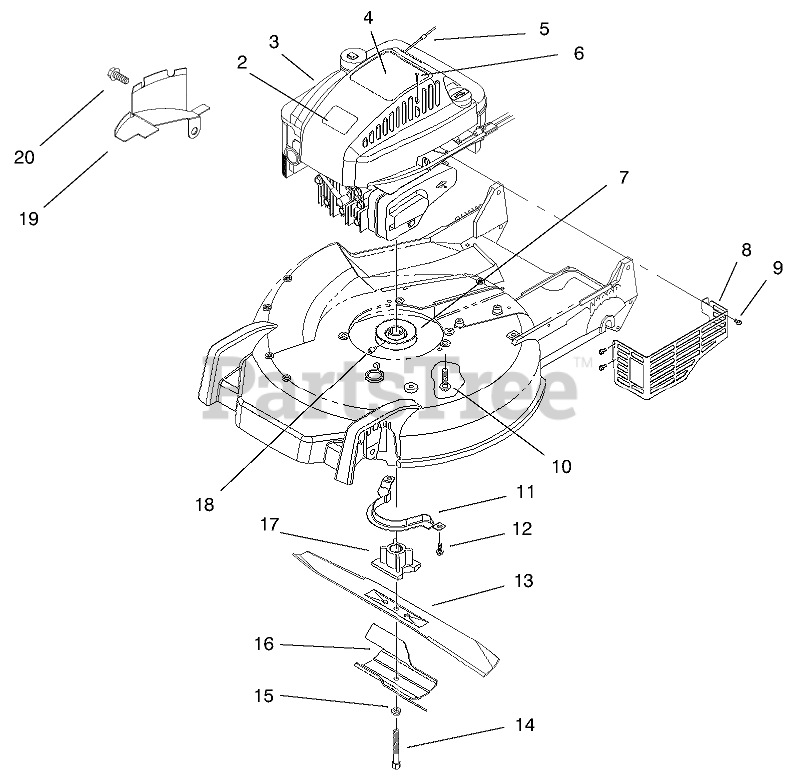

ENGINE & BLADE ASSEMBLY Parts Diagram

  • Title

2

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

3

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

4

Toro 100-5952

DECAL-ENGINE

$

$

Not available

5

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

6

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

7

Toro 100-1102

PULLEY ASM

$115.99

$

Usually ships in 3-6 days

0

8

Toro 82-8550-03

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

9

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

10

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

11

Toro 99-1526-03

GUIDE-BELT

$

$

Not available

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 93-4106

Blade
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 17

0

14

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0

15

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

16

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$18.99

$

In Stock, only 1 left!

0

17

Toro 100-1100

RETAINER-BLADE

$104.99

$

Usually ships in 3-6 days

0

18

Toro 613227

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

19

Toro 99-0905

GUARD-FLYWHEEL

$

$

Not available

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
