20778 - Toro 53cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

53cm Recycler Walk-Behind Mower

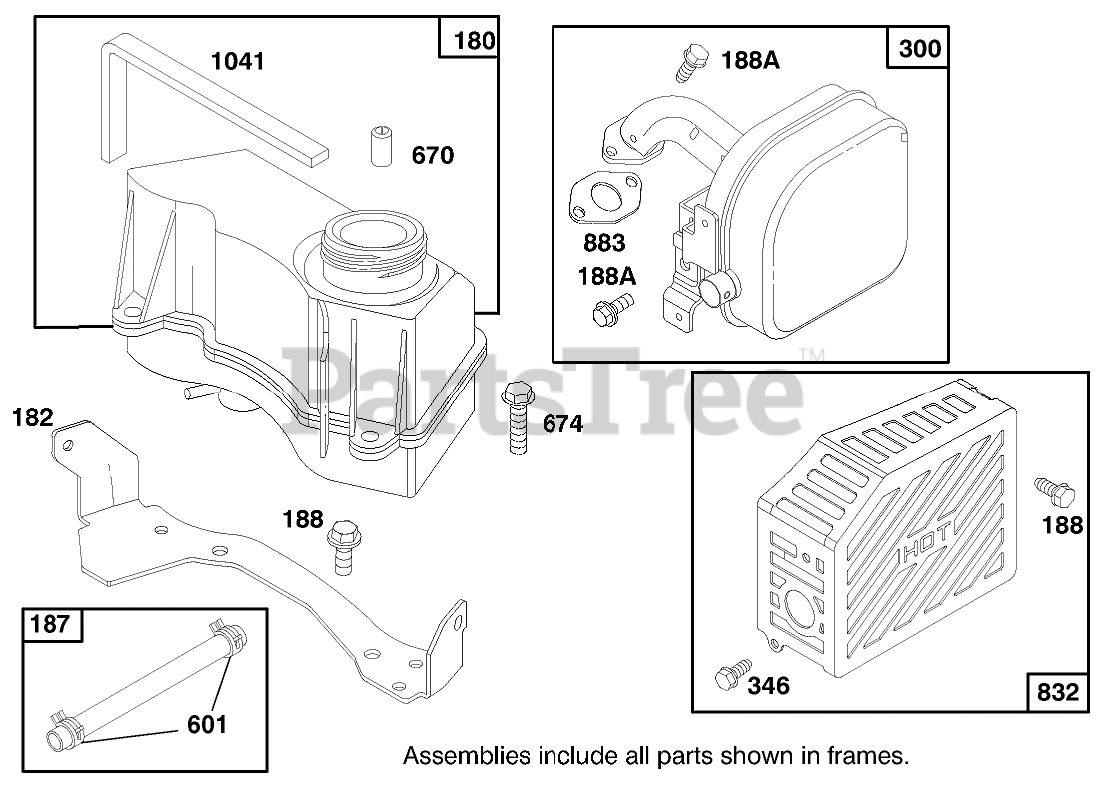

ENGINE GTS 150 Parts Diagram

  • Title
180

Toro 77-7580

PLUG - OIL DRAIN
(Superseded to 77-9240)

$

$

Not available

182

Toro 77-7170

BRACKET - FUEL TANK

$

$

Not available

187

$

$

Not available

188

Toro 94-1665

Plug-Pipe
(Superseded to 94-1652)

$

$

Not available

188A

Toro 94-1652

SCREW - HEX HEAD

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-8650

SCREW - SELF-TAPPING

$

$

Not available

601

Toro 78-4690

Clamp

$

$

Not available

670

Toro 77-9030

Spacer-Fuel Tank (Includes 2)

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

832

Toro 77-9290

MUFFLER GUARD BLACK

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available
