20778 - Toro 53cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE FTS 150 Parts Diagram

53cm Recycler Walk-Behind Mower

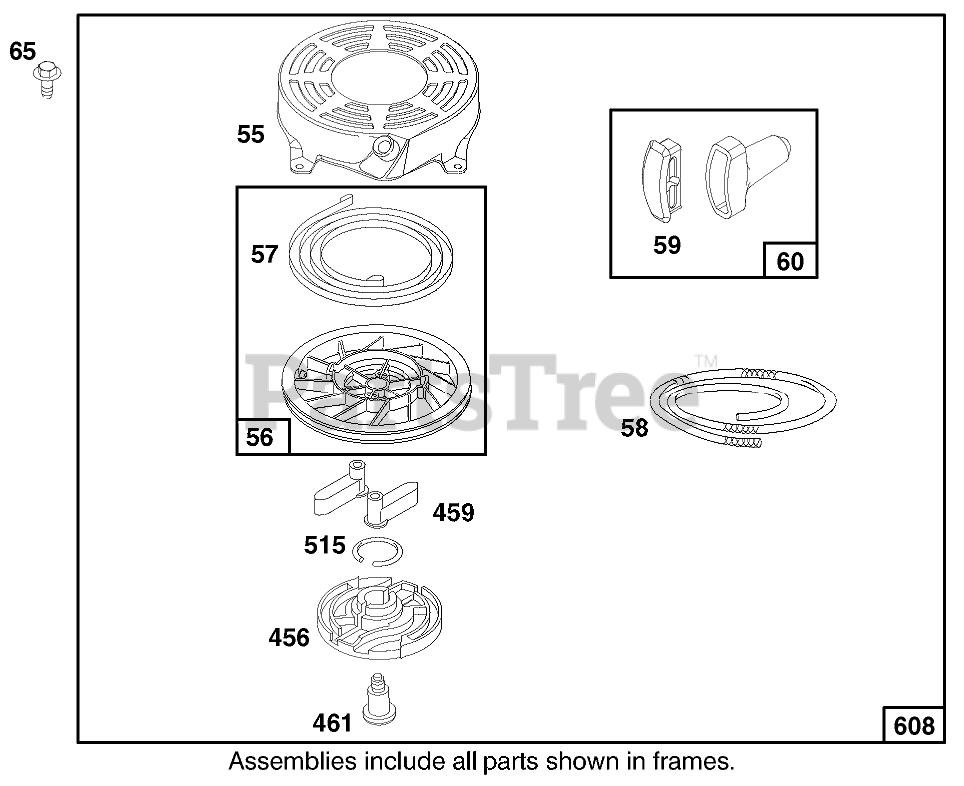

ENGINE FTS 150 Parts Diagram

  • Title

55

Toro 94-1666

HSG - REWIND STARTER

$

$

Not available

56

Toro 94-1657

PULLEY-STARTER, REWIND

$67.99

$

Usually ships in 3-6 days

0

57

Toro 94-1667

Spring-Rewind
(Superseded to 94-1657)

$67.99

$

Usually ships in 3-6 days

0

58

Toro 94-1658

Rope-Starter (Cut To Suit)
(Superseded to 77-8480)

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$12.99

$

Usually ships in 3-6 days

0

60

Toro 77-8520

HANDLE-STARTER, REWIND

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

456

Toro 94-1659

RETAINER-STARTER, REWIND

$8.99

$

Usually ships in 3-6 days

0

459

Toro 94-1654

PAWL-STARTER

$

$

Not available

461

Toro 94-1660

SCREW-SHOULDER

$

$

Not available

515

Toro 94-1655

SPRING-TORSION

$

$

Not available

608

Toro 77-8450

Starter Assy-Rewind
(Superseded to 94-1678)

$

$

Not available
