20777 - Toro 53cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

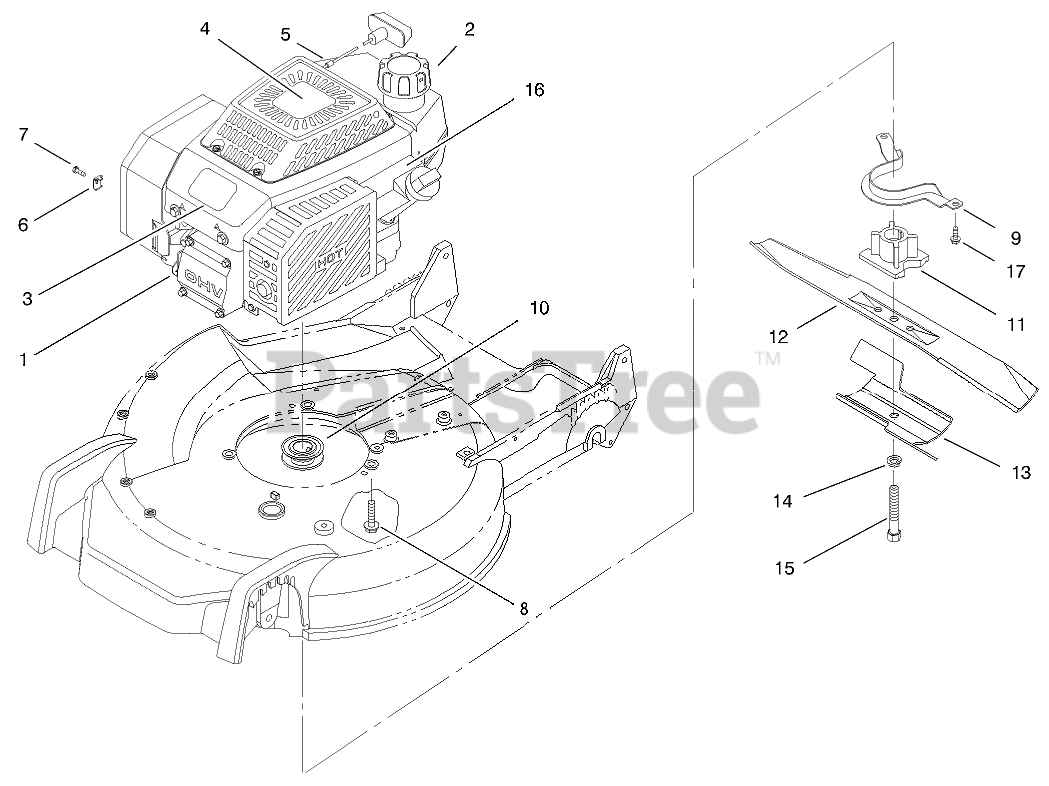

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-1604

Engine
(Superseded to 77-9020)

$

$

Not available

2

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

3

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

4

Toro 93-4355

DECAL - ENGINE

$

$

Not available

5

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

6

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

7

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

8

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

9

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

10

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

11

Toro 93-4107

RETAINER - BLADE

$81.99

$

Usually ships in 3-6 days

0

12

Toro 93-4106

Blade
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

13

Toro 94-1608

Stiffener-Blade
(Superseded to 94-1608-03)

$17.99

$

In Stock, only 1 left!

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

15

Toro 26-0670

SCREW-BLADE

$

$

Not available

16

Toro 77-9550

COVER - BRAKE F/W

$

$

Not available

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
