20775 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

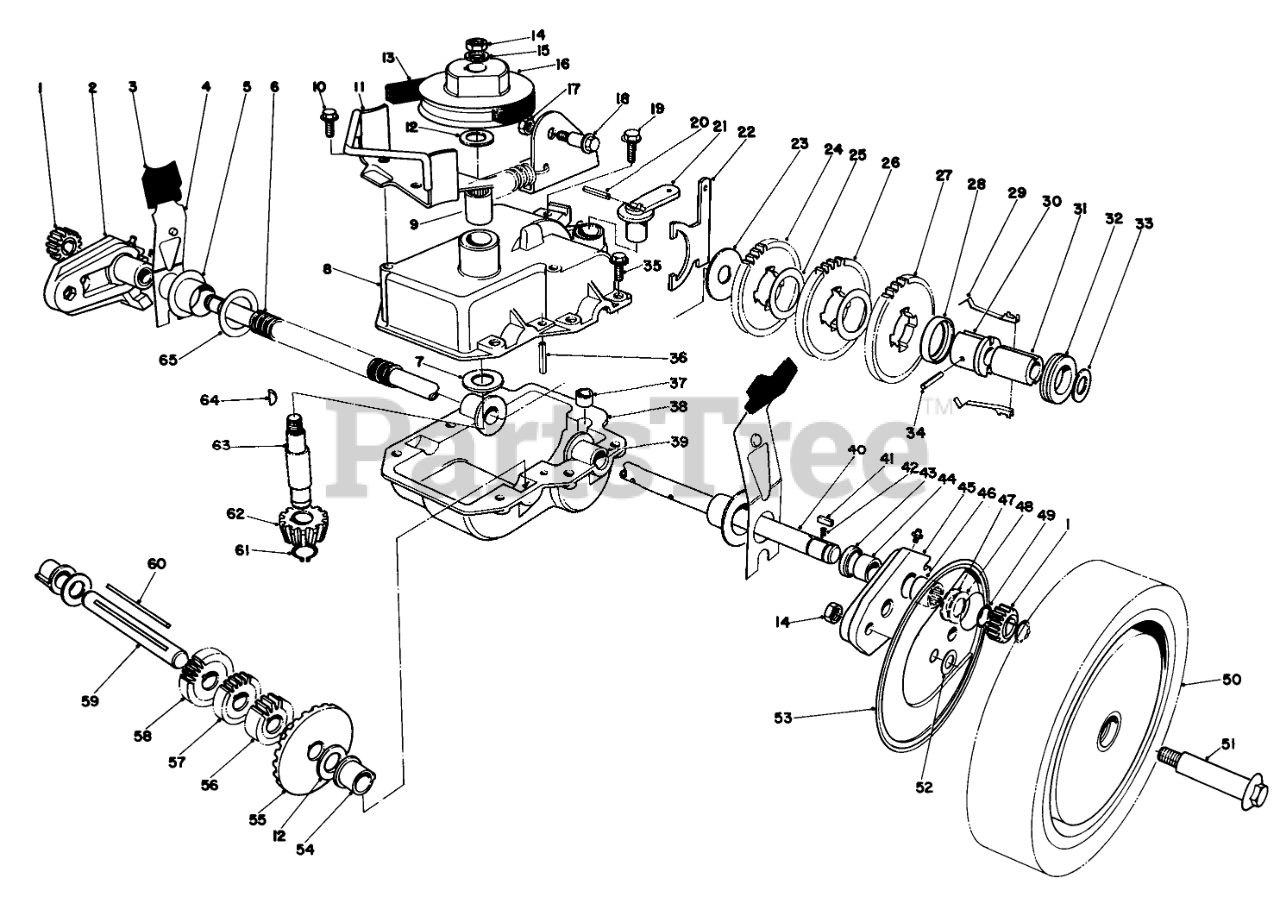

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

2

Toro 29-9590

Pivot Arm R.H. (Incl. Ref. #43, 44 & 46)
(Superseded to 49-7720)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 44-1010

SPRING ARM ASM SP

$45.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 256-196

Thrust Washer
(Superseded to 47-2910)

$13.99

$

In Stock, only 1 left!

0

8

Toro 39-7282

Case-Upper

$

$

Not available

9

Toro 252-99

Bearing
(Superseded to 47-6720)

$40.99

$

Usually ships in 3-6 days

0

10

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

11

Toro 40-9730

Belt Guide Bracket

$

$

Not available

12

Toro 36-4790

WASHER-THRUST

$3.49

$

In Stock, only 2 left!

0

13

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 15

0

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

16

Toro 39-6740

PULLEY

$54.99

$

Usually ships in 3-6 days

0

17

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

18

Toro 43-7260

SHOULDER BOLT

$17.99

$

Usually ships in 3-6 days

0

19

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

20

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

21

Toro 29-9560

LEVER-SHIFT

$16.99

$

Usually ships in 3-6 days

0

22

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$23.99

$

In Stock, only 2 left!

0

23

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

24

Toro 42-4740

GEAR-38T

$84.99

$

In Stock, only 2 left!

0

25

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

26

Toro 42-4730

Gear-40 Tooth
(Superseded to 14-2009)

$

$

Not available

27

Toro 29-9271

GEAR-42T

$88.99

$

Usually ships in 3-6 days

0

28

Toro 39-7830

KEY RETAINER

$

$

Not available

29

Toro 39-6470

Key
(Superseded to 29-9330)

$27.99

$

In Stock, only 3 left!

0

30

Toro 39-6730

Body-Sleeve
(Superseded to 55-8010)

$19.99

$

In Stock, only 4 left!

0

31

Toro 39-6720

SLEEVE

$16.99

$

Usually ships in 3-6 days

0

32

Toro 29-9340

COLLAR-SHIFT

$40.99

$

Usually ships in 3-6 days

0

33

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

34

Toro 32121-106

PIN-SPRING
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

35

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

36

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

37

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

38

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

39

Toro 29-9310

Bushing
(Superseded to 47-5220)

$

$

Not available

40

Toro 44-0850

Output Shaft
(Superseded to 12-6659)

$267.99

$

Usually ships in 3-6 days

0

41

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

42

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 13

0

43

Toro 253-140

Seal
(Superseded to 47-6730)

$12.99

$

In Stock, Qty 20+

0

44

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

45

Toro 29-9640

Pivot Arm L.H. (Incl. Ref. #43, 44 & 46)
(Superseded to 49-7710)

$

$

Not available

46

Toro 252-96

Needle Baring
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

47

Toro 252-73

Washer
(Superseded to 60-8030)

$

$

Not available

48

Toro 46-2840

THRUST WASHER

$

$

Not available

49

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 6

0

50

Toro 44-0570

Wheel & Tire Assy.
(Superseded to 11-6359)

$62.99

$

In Stock, only 2 left!

0

51

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

52

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

53

Toro 44-0600

WHEEL COVER

$

$

Not available

54

Toro 29-9350

Botching Shaft
(Superseded to 52-5410)

$

$

Not available

55

Toro 39-6670

BEVEL GEAR

$

$

Not available

56

Toro 39-6630

14 T GEAR

$

$

Not available

57

Toro 39-6640

16 T GEAR

$

$

Not available

58

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

59

Toro 39-6680

Sort Shaft

$

$

Not available

60

Toro 39-7840

Key Square
(Superseded to 39-7842)

$2.99

$

In Stock, Qty 13

0

61

Toro 32151-57

RING-RETAINING

$5.49

$

In Stock, only 3 left!

0

62

Toro 39-6660

PINION-BEVEL

$39.99

$

In Stock, only 1 left!

0

63

Toro 39-6690

INPUT SHAFT

$

$

Not available

64

Toro 3257-1

KEY-WOODRUFF

$2.99

$

In Stock, Qty 14

0

65

Toro 364770

Washer

$

$

Currently unavailable

Toro 11-2249

Gear Case Assy.-Complete
(Superseded to 12-7179)

Note: Not illustrated

$

$

Not available
