20775 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) HANDLE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 0007001 & UP) Parts Diagram

Walk-Behind Mower

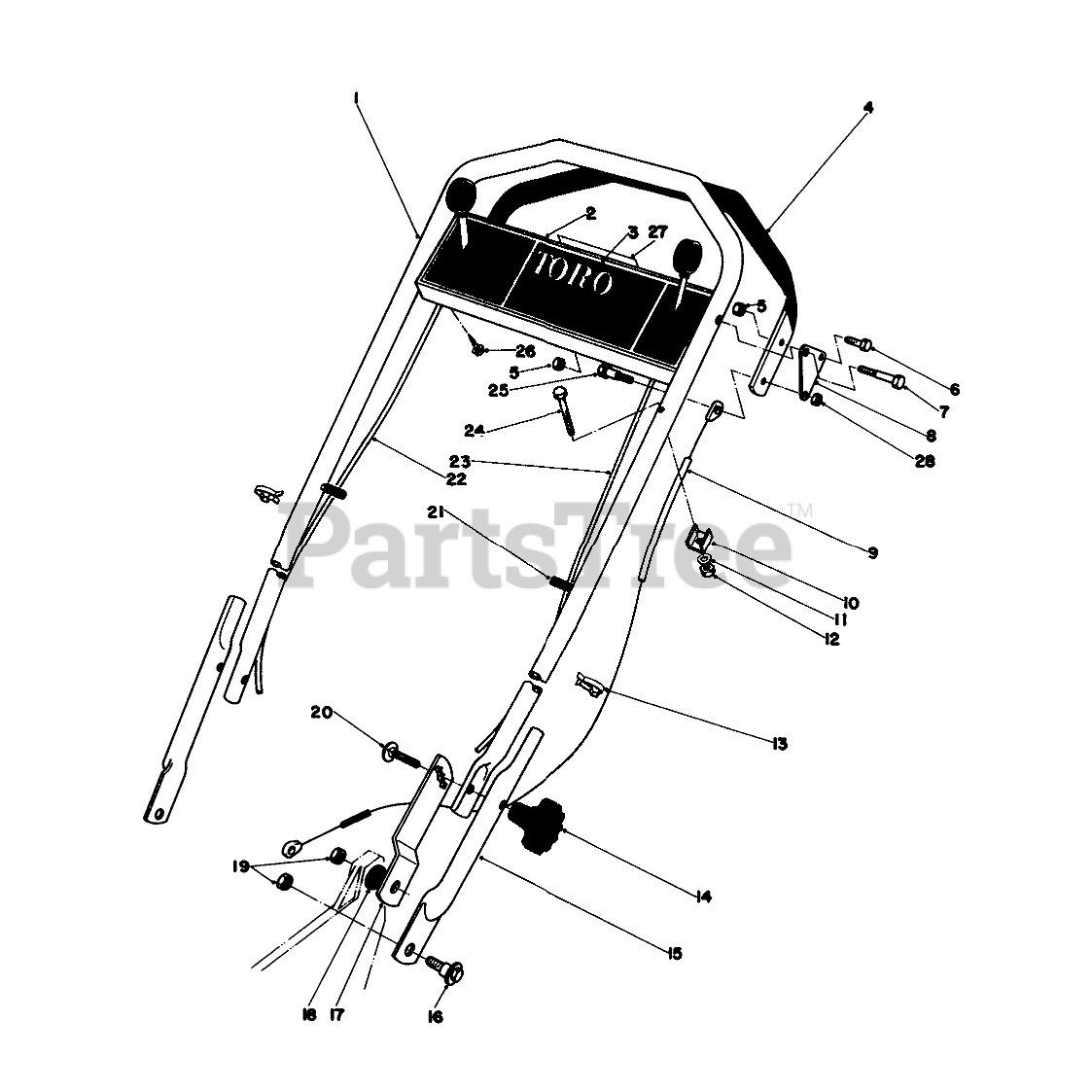

HANDLE ASSEMBLY (USED ON UNITS WITH SERIAL NO. 0007001 & UP) Parts Diagram

  • Title
1

Toro 40-4860

Upper Handle

$

$

Not available

2

Toro 40-3391

Control Plate

$

$

Not available

3

Toro 40-8680

Decal-Control Panel

$

$

Not available

4

Toro 40-4840

DEMAND HANDLE ASM

$

$

Not available

5

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 36-2250

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

8

Toro 40-4850

Bracket Demand

$

$

Not available

9

Toro 29-9502

DEMAND HAND CABLE

$

$

Not available

10

Toro 29-9550

CLAMP-CABLE

$

$

Not available

11

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 218-465

BOWDEN CLIP

$

$

Not available

14

$17.99

$

In Stock, only 2 left!

0

15

Toro 29-9160

LOWER HANDLE

$

$

Not available

16

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

17

Toro 36-8080

Handle Latch L.H.
(Superseded to 44-0590)

$43.99

$

Usually ships in 3-6 days

0

Toro 36-8090

Handle Latch R.H.
(Superseded to 44-0590)

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0

18

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

19

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 20+

0

21

Toro 2410-49

CAP-VINYL
(Superseded to 42452)

$1.49

$

Usually ships in 3-6 days

0

22

Toro 37-4721

GROUND SPEED CONTROL

$135.99

$

Usually ships in 3-6 days

0

23

Toro 37-4712

Throttle Control
(Superseded to 46-6010)

$72.99

$

Usually ships in 3-6 days

0

24

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

25

Toro 26-5620

Shoulder Bolt
(Superseded to 43-7260)

$17.99

$

Usually ships in 3-6 days

0

26

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 41-8060

Decal-Select-a-Pace

$

$

Not available

28

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0
