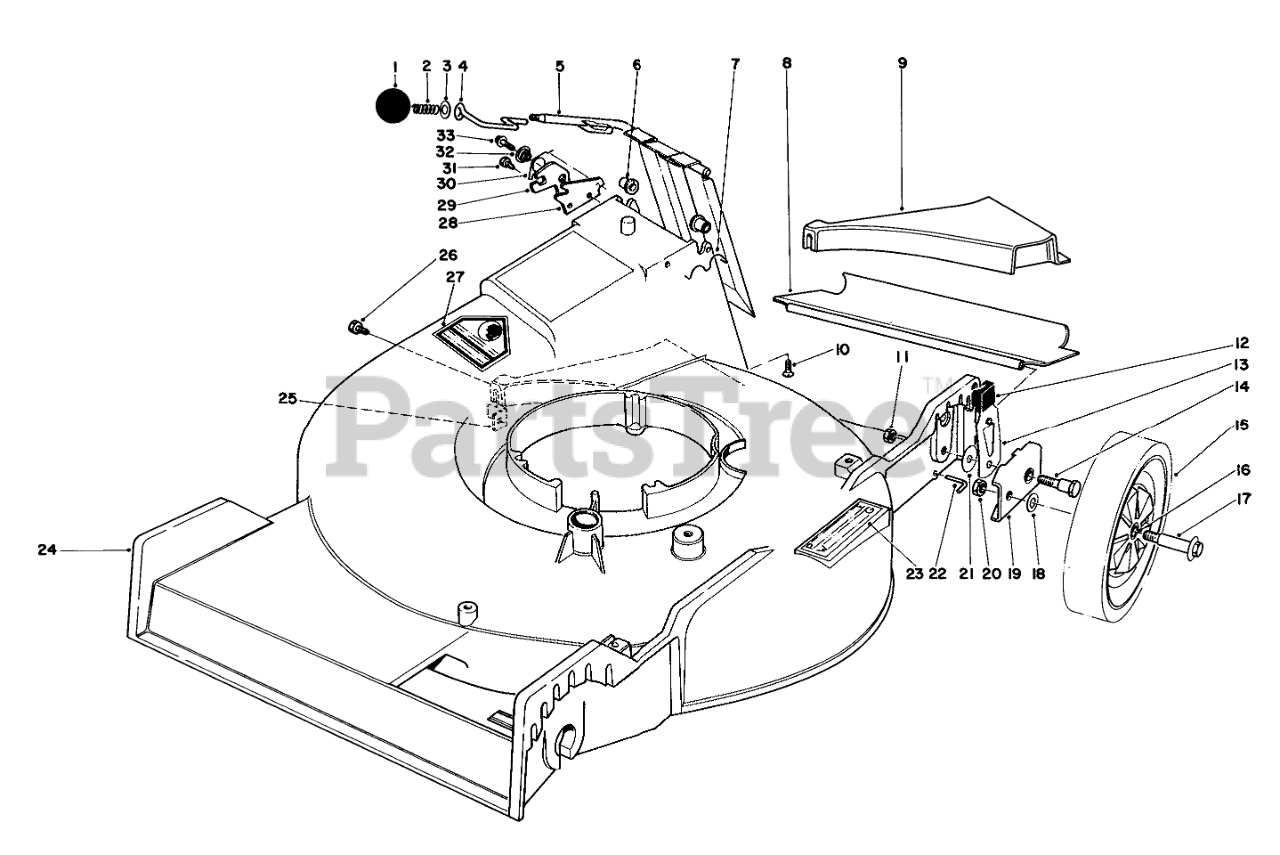

20773 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title
1

$13.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 23-1120

WASHER

$20.99

$

Usually ships in 3-6 days

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 43-7900

DOOR HANDLE WA

$

$

Not available

6

Toro 23-0880

BUSHING-NYLON

$

$

Not available

7

Toro 33-4830

DOOR RETAINER

$

$

Not available

8

Toro 23-0560

REAR SAFETY SHIELD

$

$

Not available

9

Toro 23-0360

REAR INSERT

$

$

Not available

10

Toro 32144-17

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Toro 44-1020

SPRING ARM ASM HP

$

$

Not available

14

Toro 44-5270

PIVOT SCREW

$10.99

$

In Stock, Qty 8

0

15

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #16)

$

$

Not available

16

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

17

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

19

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

20

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

21

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

22

Toro 33-3202

ROD-SHIELD

$8.99

$

In Stock, only 1 left!

0

23

Toro 46-9050

Decal-Step Pad

$

$

Not available

24

Toro 11-5099

Housing (Incl. Ref. #23 & 27)

$

$

Not available

25

Toro 26-0660

SPECIAL NUT

$

$

Not available

26

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

27

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

28

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

29

Toro 42-4010

SAFETY LATCH

$

$

Not available

30

Toro 23-1200

TORSION SPRING

$

$

Not available

31

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

32

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

33

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0
