20773 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) FRONT WHEEL & PIVOT ARM ASSEMBLY Parts Diagram

Walk-Behind Mower

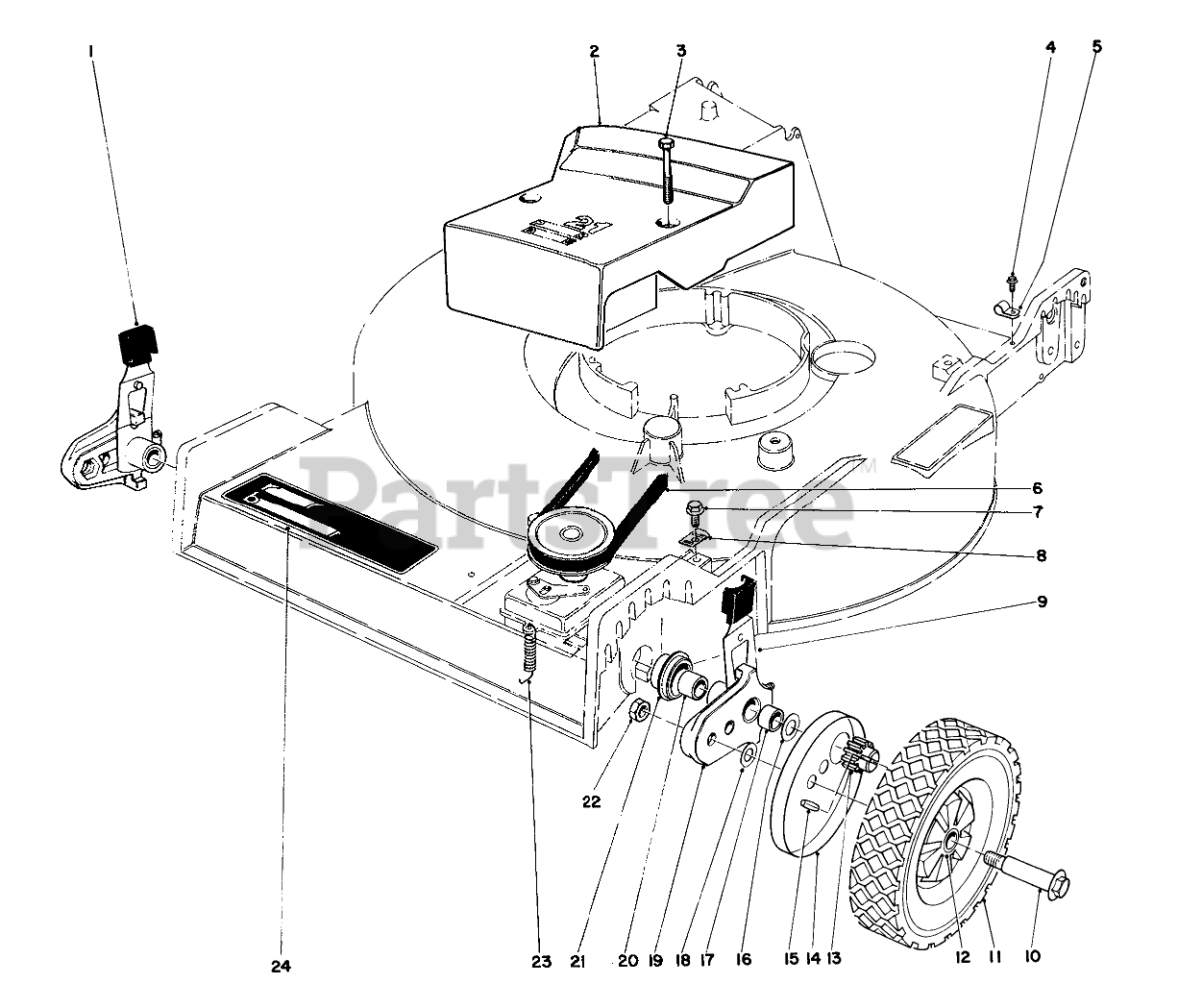

FRONT WHEEL & PIVOT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

2

Toro 46-8780

Cover-Belt

$

$

Not available

3

Toro 37-7261

Screw-Thread Cutting

$

$

Not available

4

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

5

Toro 2412-83

CLAMP-CABLE

$

$

Not available

6

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

7

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

8

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

9

Toro 44-1030

SPRING ARM ASM SP

$

$

Not available

10

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

11

Toro 11-1419

Wheel Assembly (Incl. Ref. #12)

$

$

Not available

12

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 3 left!

0

13

Toro 46-6520

PINION GEAR 15T

$27.99

$

In Stock, Qty 6

0

14

Toro 36-5630

Cover-Wheel
(Superseded to 36-5630-03)

$36.99

$

Usually ships in 3-6 days

0

15

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

16

Toro 46-6510

THRUST WASHER

$

$

Not available

17

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 42-3510

Pivot Arm (Incl. Ref. #17 & 20)

$

$

Not available

20

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, Qty 20+

0

21

Toro 23-0380

End Cap
(Superseded to 36-9040)

$11.99

$

In Stock, only 1 left!

0

22

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

23

Toro 17-4490

TENSION SPRING

$21.99

$

In Stock, only 1 left!

0

24

Toro 44-0460

Decal-Deck

$

$

Not available
