20772 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

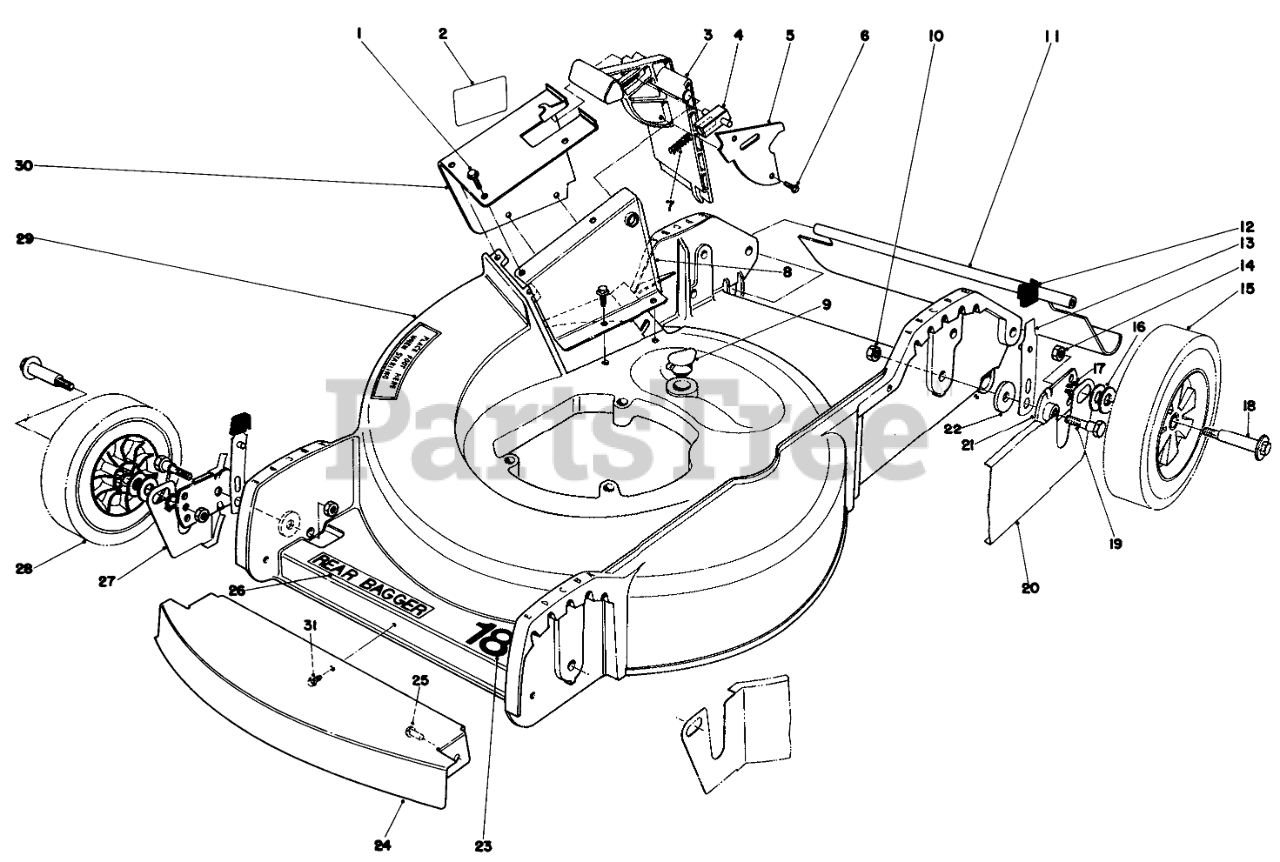

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

2

Toro 39-3020

Decal-Caution

$

$

Not available

3

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

4

Toro 33-0470

Door Latch
(Superseded to 47-5551)

$

$

Not available

5

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$14.99

$

Usually ships in 3-6 days

0

6

$2.99

$

Usually ships in 3-6 days

0

7

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

8

Toro 33-0430

Inner Tunnel

$

$

Not available

9

Toro 6-4500

WASHOUT PLUG

$

$

Not available

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Toro 25-7890

SPRING ARM ASM

$

$

Not available

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 174120

Wheel & Tire Assembly

$

$

Currently unavailable

16

Toro 29-8910

WASHER

$0.99

$

In Stock, only 1 left!

0

17

Toro 32120-94

Grip Ring

$

$

Currently unavailable

18

Toro 26-4430

WHEEL BOLT

$54.99

$

Usually ships in 3-6 days

0

19

Toro 25-3440

PIVOT SCREW

$

$

Not available

20

Toro 39-2350

Shield Left

$

$

Not available

21

Toro 33-0400

PIVOT ARM ASSY

$38.99

$

Usually ships in 3-6 days

0

22

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

23

Toro 33-0500

Decal

$

$

Not available

24

Toro 39-2340

Shield Front

$

$

Not available

25

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

26

Toro 33-2320

DECK DECAL

$

$

Not available

27

Toro 39-2360

Shield Right

$

$

Not available

28

Toro 17-4140

Wheel Assembly

$

$

Not available

29

Toro 29-6624

Housing

$

$

Not available

30

Toro 33-0420

Tunnel Outer
(Superseded to 13-5829)

$

$

Not available

31

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

Toro 8-6309

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
