20771 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

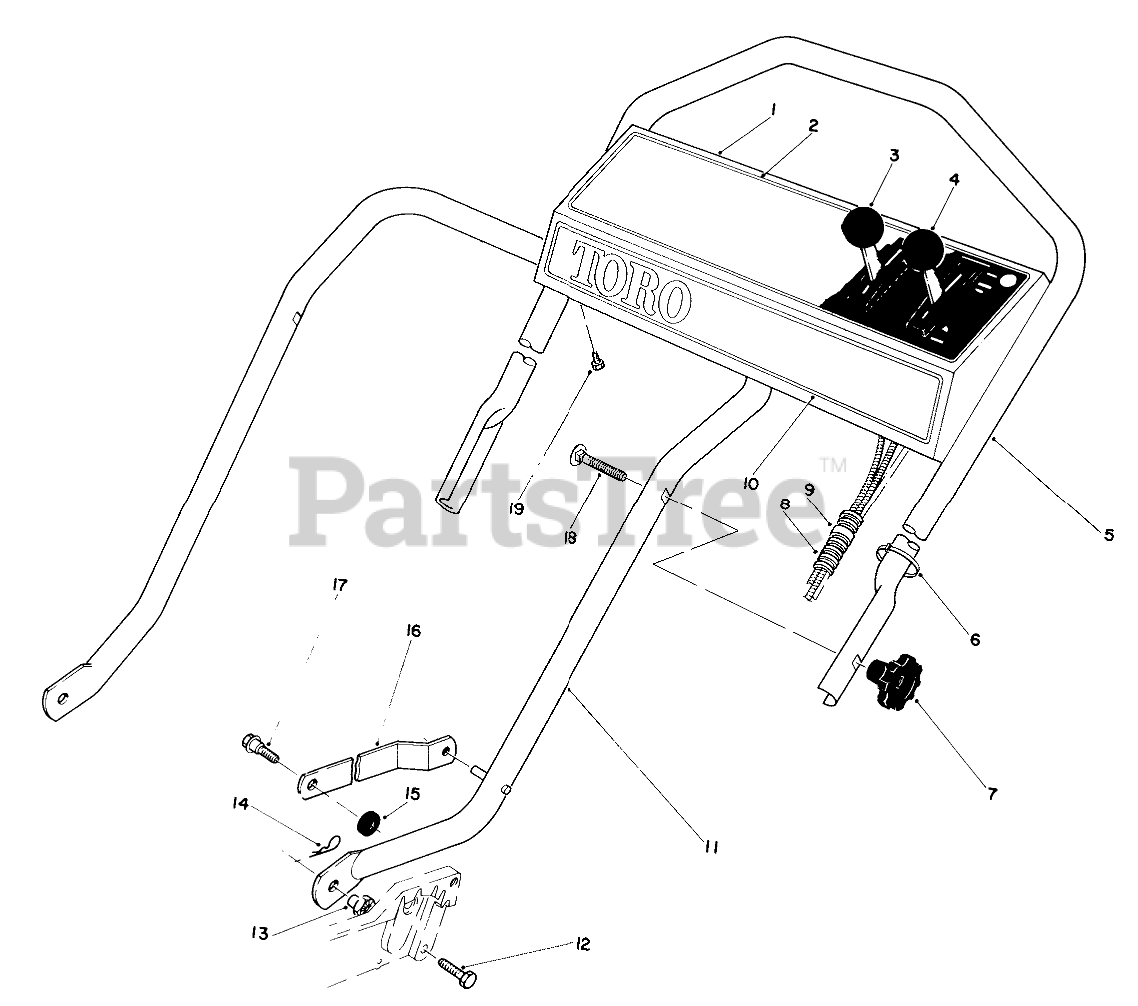

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-4699

Panel-Control (Incl. Ref. #2)

$

$

Not available

2

Toro 46-7390

Decal-Instruction

$

$

Not available

3

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

4

Toro 46-6010

SERVICE THROTTLE CONTRO

$72.99

$

Usually ships in 3-6 days

0

5

Toro 46-4990

Handle-Upper

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

8

Toro 46-6442

CONTROL CABLE COVER

$

$

Not available

9

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

10

Toro 46-7380

Decal-Toro
(Superseded to 66-1770)

$

$

Not available

11

Toro 33-4340

LOWER HANDLE ASM

$

$

Not available

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

14

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

15

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

16

Toro 26-0760

HANDLE LATCH

$

$

Not available

17

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

18

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
