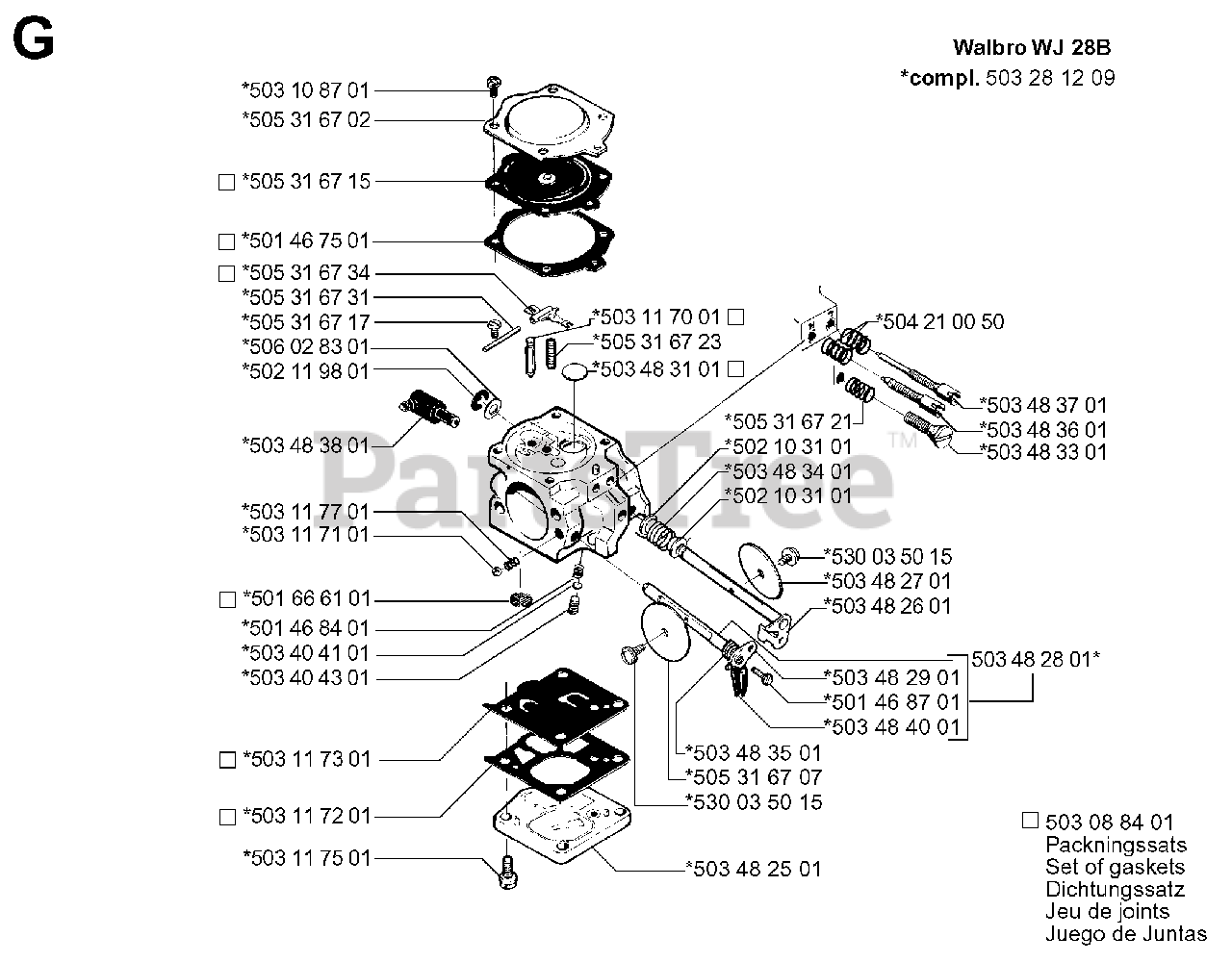

2077 - Jonsered Chainsaw (1998-03) CARBURETOR DETAILS Parts Diagram

Chainsaw

CARBURETOR DETAILS Parts Diagram

  • Title
503108701

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

505316702

Jonsered 505316702

DIAPHRAM COVER

$7.99

$

Usually ships in 3-10 days

0

505316715

Jonsered 505316715

MAIN DIAPHRAGM

Note: 503 08 84 01 SET OF GASKETS

$91.99

$

Usually ships in 3-10 days

0

501467501

Jonsered 501467501

GASKET

Note: 503 08 84 01 SET OF GASKETS

$10.99

$

In Stock, only 3 left!

0

505316734

Jonsered 505316734

LEVER

Note: 503 08 84 01 SET OF GASKETS

$13.99

$

In Stock, Qty 7

0

505316731

$7.99

$

Usually ships in 3-10 days

0

505316717

$7.99

$

In Stock, Qty 6

0

506028301

$13.99

$

Usually ships in 3-10 days

0

502119801

$9.49

$

Usually ships in 3-10 days

0

503483801

Jonsered 503483801

FUELNIPPE

$

$

Not available

503117701

Jonsered 503117701

SPRING 394

$9.49

$

Usually ships in 3-10 days

0

503117101

$11.99

$

Usually ships in 3-10 days

0

501666101

Jonsered 501666101

FUEL INLET SCREEN

Note: 503 08 84 01 SET OF GASKETS

$14.99

$

In Stock, Qty 5

0

501468401

$7.99

$

In Stock, only 1 left!

0

503404101

$

$

Not available

503404301

$

$

Not available

503117301

Jonsered 503117301

DIAPHRAGM/PUMP

Note: 503 08 84 01 SET OF GASKETS

$28.99

$

Usually ships in 3-10 days

0

503117201

Jonsered 503117201

GASKET

Note: 503 08 84 01 SET OF GASKETS

$11.99

$

In Stock, only 1 left!

0

503117501

Jonsered 503117501

SCREW W/ WASHER

$9.49

$

Usually ships in 3-10 days

0

503482501

$

$

Not available

530035015

Jonsered 530035015

SCREW SHUTTERS

$

$

Not available

505316707

Jonsered 505316707

CHOKE FLAP

$3.49

$

Usually ships in 3-10 days

0

503483501

Jonsered 503483501

SPRING/FAST IDLE

$

$

Not available

503484001

Jonsered 503484001

LEVER/FAST IDLE

$

$

Not available

501468701

$7.99

$

In Stock, only 1 left!

0

503482901

$6.91

$

Usually ships in 3-10 days

0

503482801

Jonsered 503482801

CHOKE SHAFT

$19.61

$

Usually ships in 3-10 days

0

503482601

Jonsered 503482601

THROTTLE SHAFT

$31.15

$

Usually ships in 3-10 days

0

503482701

Jonsered 503482701

THOTTLE SHUTTER

$12.68

$

Usually ships in 3-10 days

0

530035015

Jonsered 530035015

SCREW SHUTTERS

$

$

Not available

502103101

Jonsered 502103101

No Description Available

$11.99

$

Usually ships in 3-10 days

0

503483401

$

$

Not available

502103101

Jonsered 502103101

No Description Available

$11.99

$

Usually ships in 3-10 days

0

505316721

Jonsered 505316721

PRESSURE SPRING
(Superseded to 505316737)

$14.99

$

In Stock, only 2 left!

0

503483301

$

$

Not available

503483601

$12.99

$

Usually ships in 3-10 days

0

503483701

Jonsered 503483701

SCREW
(Superseded to 574871601)

$7.49

$

In Stock, only 1 left!

0

504210050

Jonsered 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

503483101

Jonsered 503483101

PLUG

Note: 503 08 84 01 SET OF GASKETS

$

$

Not available

505316723

Jonsered 505316723

LEVER SPRING

$

$

Not available

503117001

Jonsered 503117001

VALVE/INLET.

Note: 503 08 84 01 SET OF GASKETS

$22.99

$

In Stock, Qty 8

0

503281209

Jonsered 503281209

CARBURATOR
(Superseded to 503281220)

Note: WALBRO WJ 28B

$

$

Not available
