2077 - Jonsered Chainsaw (1994-09) CYLINDER PISTON Parts Diagram

Chainsaw

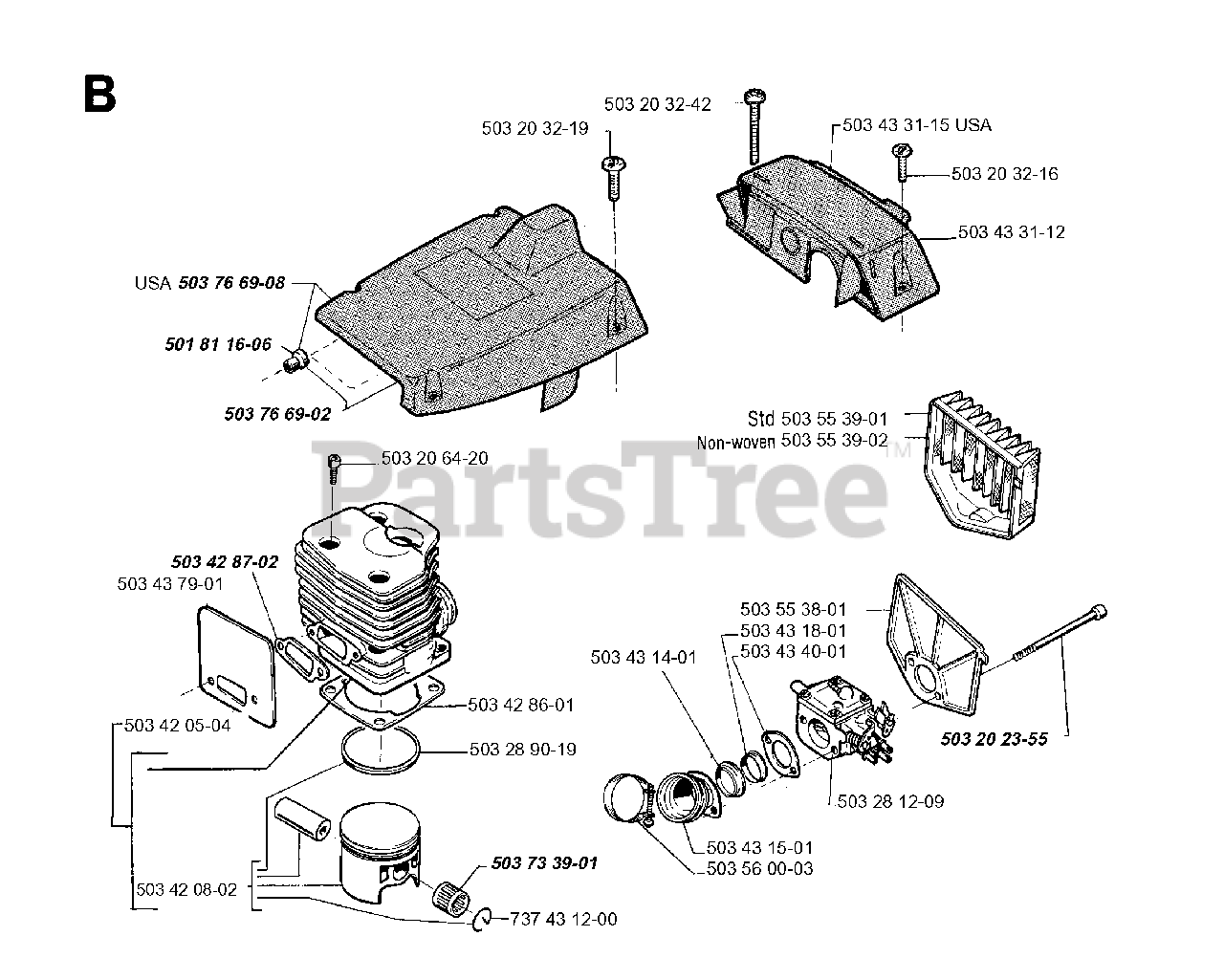

CYLINDER PISTON Parts Diagram

  • Title
5037669-08

Jonsered 503766908

REPL BY 503 76 69-02
(Superseded to 503766902)

Note: USA

$

$

Not available

5018116-06

$2.49

$

Usually ships in 3-10 days

0

5037669-02

Jonsered 503766902

CYLINDER COVER

$

$

Not available

5034287-02

$3.49

$

Usually ships in 3-10 days

0

5034379-01

$

$

Not available

5034205-04

Jonsered 503420504

2REPL BY 503 42 05-06
(Superseded to 503420506)

$

$

Not available

5034208-02

Jonsered 503420802

%PISTON CPL 52 MM
(Superseded to 503999271)

$

$

Not available

7374312-00

Jonsered 737431200

No Description Available

$7.49

$

Usually ships in 3-10 days

0

5037339-01

Jonsered 503733901

%SUPPORT BUSHING
(Superseded to 503255601)

$21.99

$

In Stock, only 1 left!

0

5032890-19

Jonsered 503289019

PISTON RING

$31.99

$

In Stock, only 1 left!

0

5034286-01

$5.76

$

Usually ships in 3-10 days

0

5032064-20

Jonsered 503206420

TORX SCREW MRT M5X20

$

$

Not available

5032032-19

$

$

Not available

5032032-42

$

$

Not available

5034314-01

$

$

Not available

5034315-01

$

$

Not available

5035600-03

Jonsered 503560003

CLAMP
(Superseded to 505283302)

$

$

Not available

5032812-09

Jonsered 503281209

CARBURATOR
(Superseded to 503281220)

$

$

Not available

5032023-55

$

$

Not available

5034340-01

$

$

Not available

5034318-01

$9.99

$

In Stock, Qty 9

0

5035538-01

Jonsered 503553801

FILTER HOLDER

$12.68

$

Usually ships in 3-10 days

0

5035539-02

Jonsered 503553902

AIR FILTER

Note: NON-WOVEN

$

$

Not available

5035539-01

Jonsered 503553901

AIR FILTER

Note: STD

$25.38

$

Usually ships in 3-10 days

0

5034331-12

Jonsered 503433112

FILTER COVER

$

$

Not available

5032032-16

$6.49

$

Usually ships in 3-10 days

0

5034331-15

Jonsered 503433115

REPL BY 503 43 31-12
(Superseded to 503433112)

Note: USA

$

$

Not available
