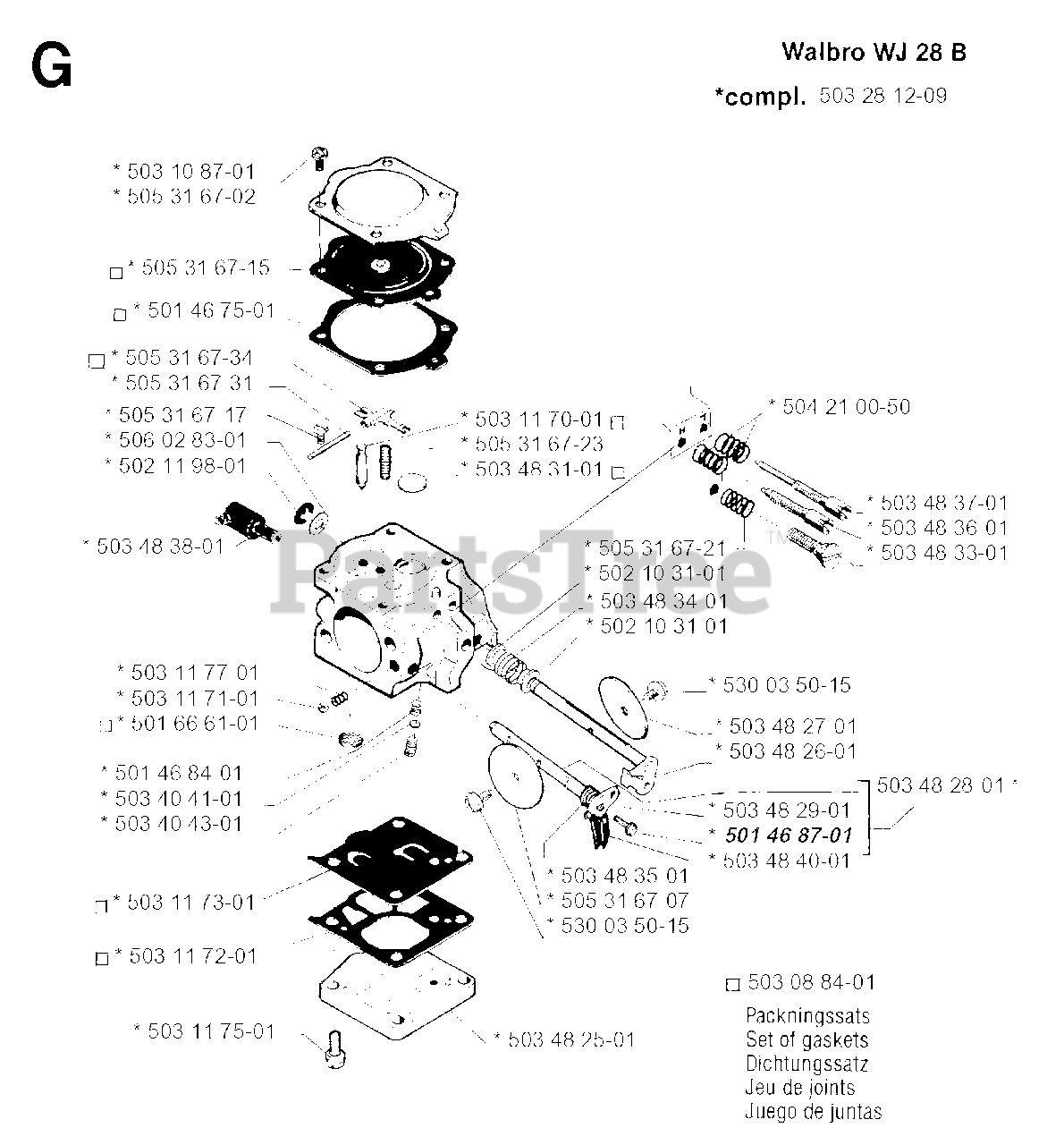

2077 - Jonsered Chainsaw (1994-09) CARBURETOR DETAILS Parts Diagram

Chainsaw

CARBURETOR DETAILS Parts Diagram

  • Title
5031087-01

Jonsered 503108701

SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

5053167-02

Jonsered 505316702

DIAPHRAM COVER

$7.99

$

Usually ships in 3-10 days

0

5053167-15

Jonsered 505316715

MAIN DIAPHRAGM

Note: 503 08 84-01 SET OF GASKETS

$91.99

$

Usually ships in 3-10 days

0

5014675-01

Jonsered 501467501

GASKET

Note: 503 08 84-01 SET OF GASKETS

$10.99

$

In Stock, only 2 left!

0

5053167-34

Jonsered 505316734

LEVER

Note: 503 08 84-01 SET OF GASKETS

$13.99

$

In Stock, Qty 7

0

5053167-31

$7.99

$

Usually ships in 3-10 days

0

5053167-17

$7.99

$

In Stock, Qty 6

0

5060283-01

$13.99

$

Usually ships in 3-10 days

0

5021198-01

$9.49

$

Usually ships in 3-10 days

0

5034838-01

Jonsered 503483801

FUELNIPPE

$

$

Not available

5031177-01

Jonsered 503117701

SPRING 394

$9.49

$

Usually ships in 3-10 days

0

5031171-01

$11.99

$

Usually ships in 3-10 days

0

5016661-01

Jonsered 501666101

FUEL INLET SCREEN

Note: 503 08 84-01 SET OF GASKETS

$14.99

$

Usually ships in 3-10 days

0

5014684-01

$7.99

$

In Stock, only 1 left!

0

5034041-01

$

$

Not available

5034043-01

$

$

Not available

5031173-01

Jonsered 503117301

DIAPHRAGM/PUMP

Note: 503 08 84-01 SET OF GASKETS

$28.99

$

Usually ships in 3-10 days

0

5031172-01

Jonsered 503117201

GASKET

Note: 503 08 84-01 SET OF GASKETS

$11.99

$

In Stock, only 1 left!

0

5031175-01

Jonsered 503117501

SCREW W/ WASHER

$9.49

$

Usually ships in 3-10 days

0

5034825-01

$

$

Not available

5300350-15

Jonsered 530035015

SCREW SHUTTERS

$

$

Not available

5053167-07

Jonsered 505316707

CHOKE FLAP

$3.49

$

Usually ships in 3-10 days

0

5034835-01

Jonsered 503483501

SPRING/FAST IDLE

$

$

Not available

5034840-01

Jonsered 503484001

LEVER/FAST IDLE

$

$

Not available

5014687-01

$7.99

$

Usually ships in 3-10 days

0

5034829-01

$6.91

$

Usually ships in 3-10 days

0

5034826-01

Jonsered 503482601

THROTTLE SHAFT

$31.15

$

Usually ships in 3-10 days

0

5034827-01

Jonsered 503482701

THOTTLE SHUTTER

$12.68

$

Usually ships in 3-10 days

0

5300350-15

Jonsered 530035015

SCREW SHUTTERS

$

$

Not available

5034828-01

Jonsered 503482801

CHOKE SHAFT

$19.61

$

Usually ships in 3-10 days

0

5021031-01

Jonsered 502103101

No Description Available

$11.99

$

Usually ships in 3-10 days

0

5034834-01

$

$

Not available

5021031-01

Jonsered 502103101

No Description Available

$11.99

$

Usually ships in 3-10 days

0

5053167-21

Jonsered 505316721

PRESSURE SPRING
(Superseded to 505316737)

$14.99

$

In Stock, only 2 left!

0

5034831-01

Jonsered 503483101

PLUG

Note: 503 08 84-01 SET OF GASKETS

$

$

Not available

5053167-23

Jonsered 505316723

LEVER SPRING

$

$

Not available

5031170-01

Jonsered 503117001

VALVE/INLET.

Note: 503 08 84-01 SET OF GASKETS

$22.99

$

In Stock, Qty 8

0

5034833-01

$

$

Not available

5034836-01

$12.99

$

Usually ships in 3-10 days

0

5034837-01

Jonsered 503483701

SCREW
(Superseded to 574871601)

$7.49

$

In Stock, only 1 left!

0

5042100-50

Jonsered 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

5032812-09

Jonsered 503281209

CARBURATOR
(Superseded to 503281220)

Note: WALBRO WJ 28 B

$

$

Not available
