20768 B - Toro 53cm Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

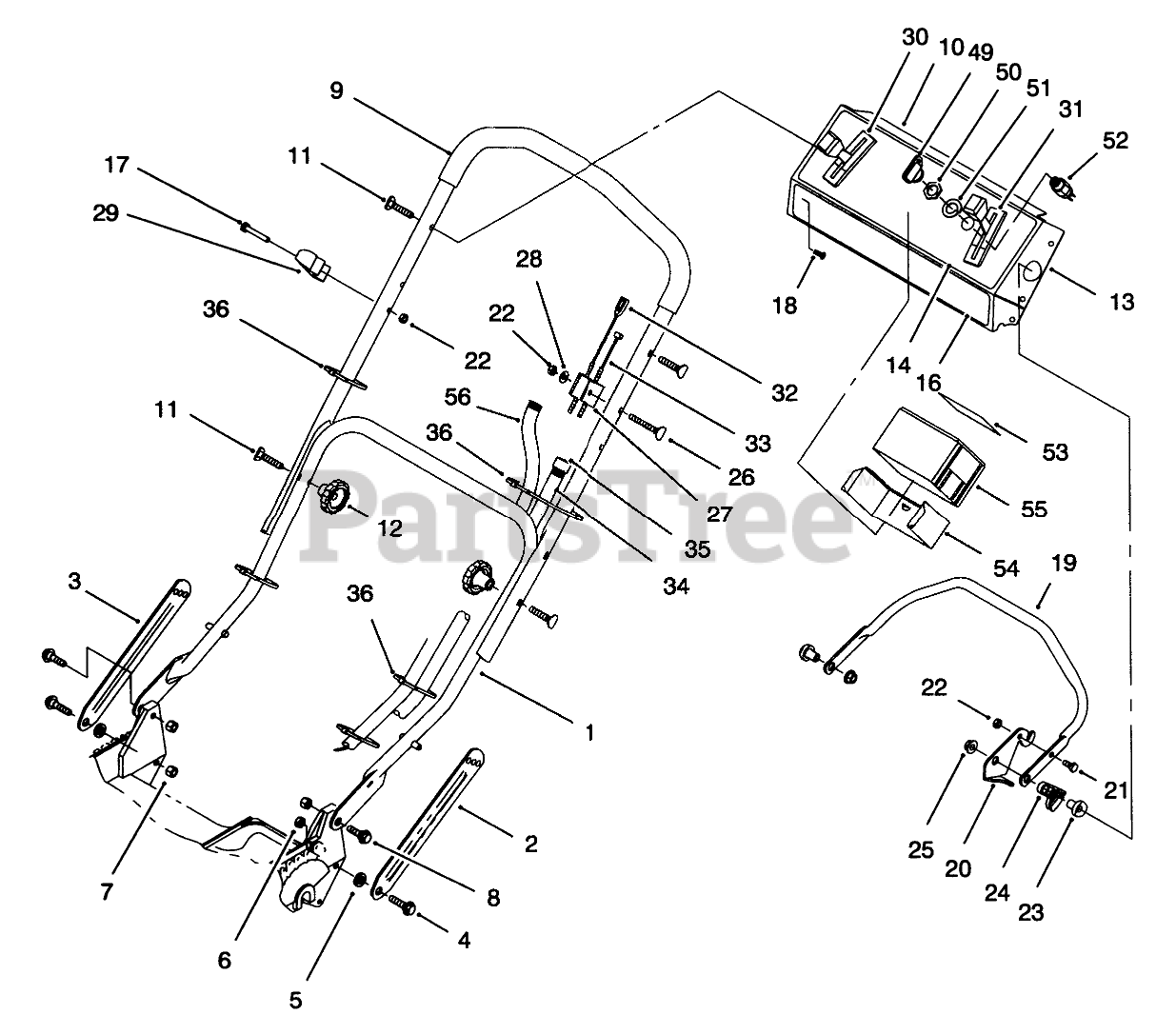

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 43-1362-05

ASM-Handle

$

$

Currently unavailable

2

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$9.49

$

In Stock, only 2 left!

0

3

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 6

0

4

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

5

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

7

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

9

Toro 94-4922

HANDLE - DIPPED

$150.99

$

Usually ships in 3-6 days

0

10

Toro 93-6655

DECAL-PANEL, REAR

$8.99

$

Usually ships in 3-6 days

0

11

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 11

0

12

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

13

Toro 16-8759

Panel-Control (Incl. Ref. #10, 14)

$102.99

$

Usually ships in 3-6 days

0

14

Toro 93-6660

DECAL - INSTRUCTION

$

$

Not available

16

Toro 92-7862

DECAL - PANEL

$

$

Not available

17

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available

18

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, only 4 left!

0

19

Toro 52-7430-05

BAR-CONTROL

$

$

Not available

20

Toro 66-5351

Lever-Control
(Superseded to 66-5351-03)

$9.99

$

Usually ships in 3-6 days

0

21

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

23

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

24

Toro 46-5520

LEVER-TRACTION

$

$

Not available

25

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

26

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

27

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

28

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

30

Toro 76-2712

CONTROL-SPEED, GROUND

$41.99

$

In Stock, only 1 left!

0

31

Toro 74-3892

THROTTLE CONTROL

$88.99

$

Usually ships in 3-6 days

0

32

Toro 76-4331

BRAKE CONTROL

$79.99

$

Usually ships in 3-6 days

0

33

Toro 46-5481

CABLE-TRACTION

$56.99

$

In Stock, only 1 left!

0

34

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

35

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

49

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

50

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

51

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

52

Toro 46-5780

Switch-Starter (Incl. Ref. #50, 51)

$29.99

$

In Stock, only 1 left!

0

53

Toro 93-6668

DECAL-BATTERY

$18.99

$

Usually ships in 3-6 days

0

54

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$35.99

$

Usually ships in 3-6 days

0

55

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

56

Toro 80-4796

WIRE HARNESS

$

$

Not available

Toro 22-4710

Charger
(Superseded to 98-2391)

Note: Not illustrated

$60.99

$

Usually ships in 3-6 days

0
