20766 B - Toro 53cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

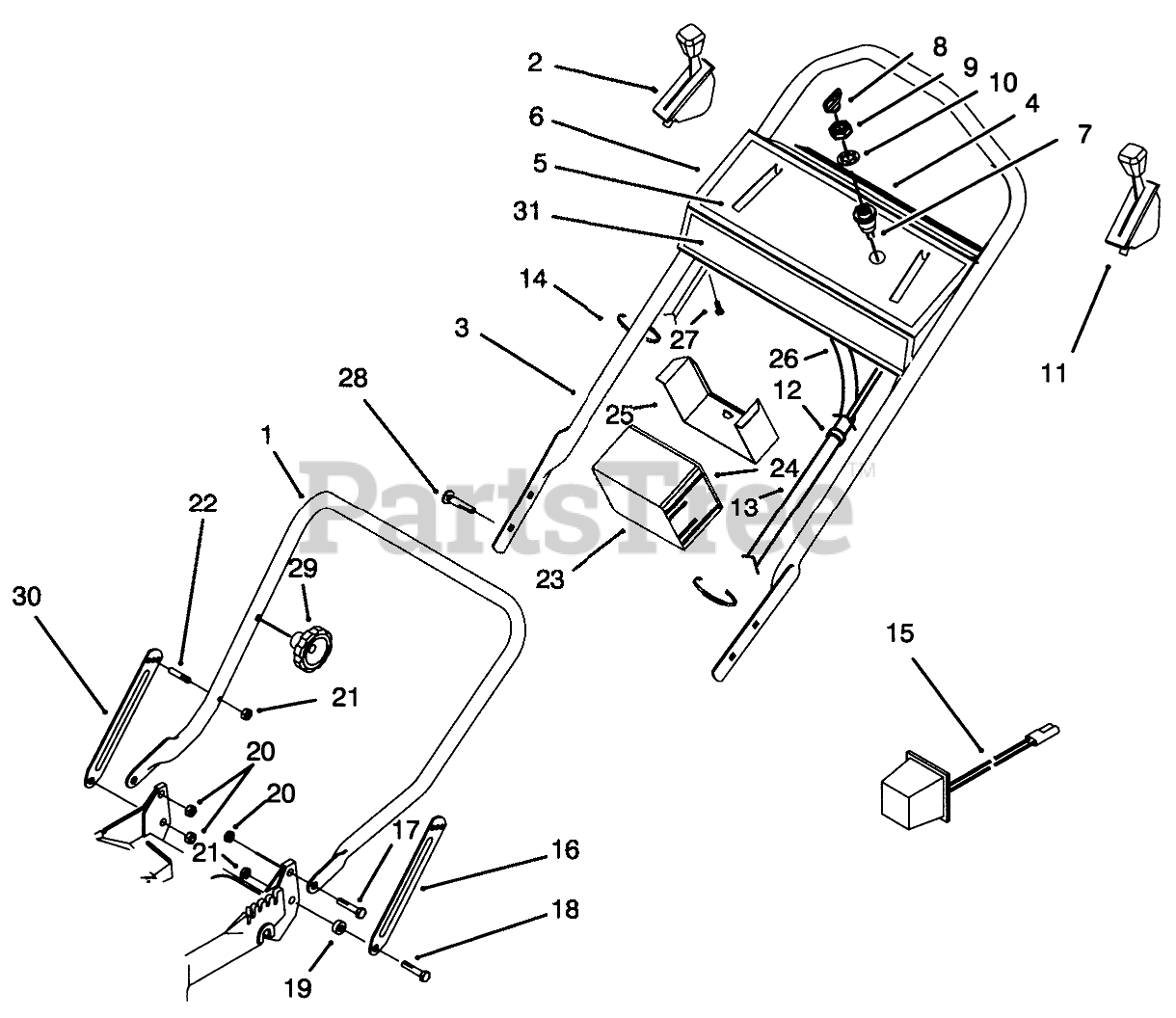

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 82-5530

LOWER HANDLE ASM

$

$

Not available

2

Toro 76-2712

CONTROL-SPEED, GROUND

$41.99

$

In Stock, only 1 left!

0

3

Toro 84-8330

UPPER HANDLE, PVC DIP

$

$

Not available

4

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$8.99

$

Usually ships in 3-6 days

0

5

Toro 66-0280

DECAL - INSTRUCTION

$

$

Not available

6

Toro 13-5859

Panel-Control (Incl. Ref. #4 & 5)

$

$

Not available

7

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

8

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

9

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

10

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

11

Toro 66-0236

THROTTLE CONTROL

$109.99

$

Usually ships in 3-6 days

0

12

Toro 2412-50

FITTING-RING

$8.99

$

Usually ships in 3-6 days

0

13

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

15

Toro 22-4710

Charger
(Superseded to 98-2391)

$60.99

$

Usually ships in 3-6 days

0

16

Toro 84-8360

LH HANDLE LATCH

$17.99

$

Usually ships in 3-6 days

0

17

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

18

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

19

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

21

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

22

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$32.99

$

Usually ships in 3-6 days

0

23

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

24

Toro 92-8659

DECAL - BATTERY

$13.99

$

Usually ships in 3-6 days

0

25

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$35.99

$

Usually ships in 3-6 days

0

26

Toro 80-4790

Harness-Wire
(Superseded to 80-4793)

$130.99

$

Usually ships in 3-6 days

0

27

Toro 32144-115

10-16X1/2 SHWH SCREW
(Superseded to 92-9665)

$1.99

$

In Stock, only 4 left!

0

28

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

29

$17.99

$

In Stock, only 3 left!

0

30

Toro 84-8400

RH HANDLE LATCH

$

$

Not available

31

Toro 92-7862

DECAL - PANEL

$

$

Not available
