20765 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

Walk-Behind Mower

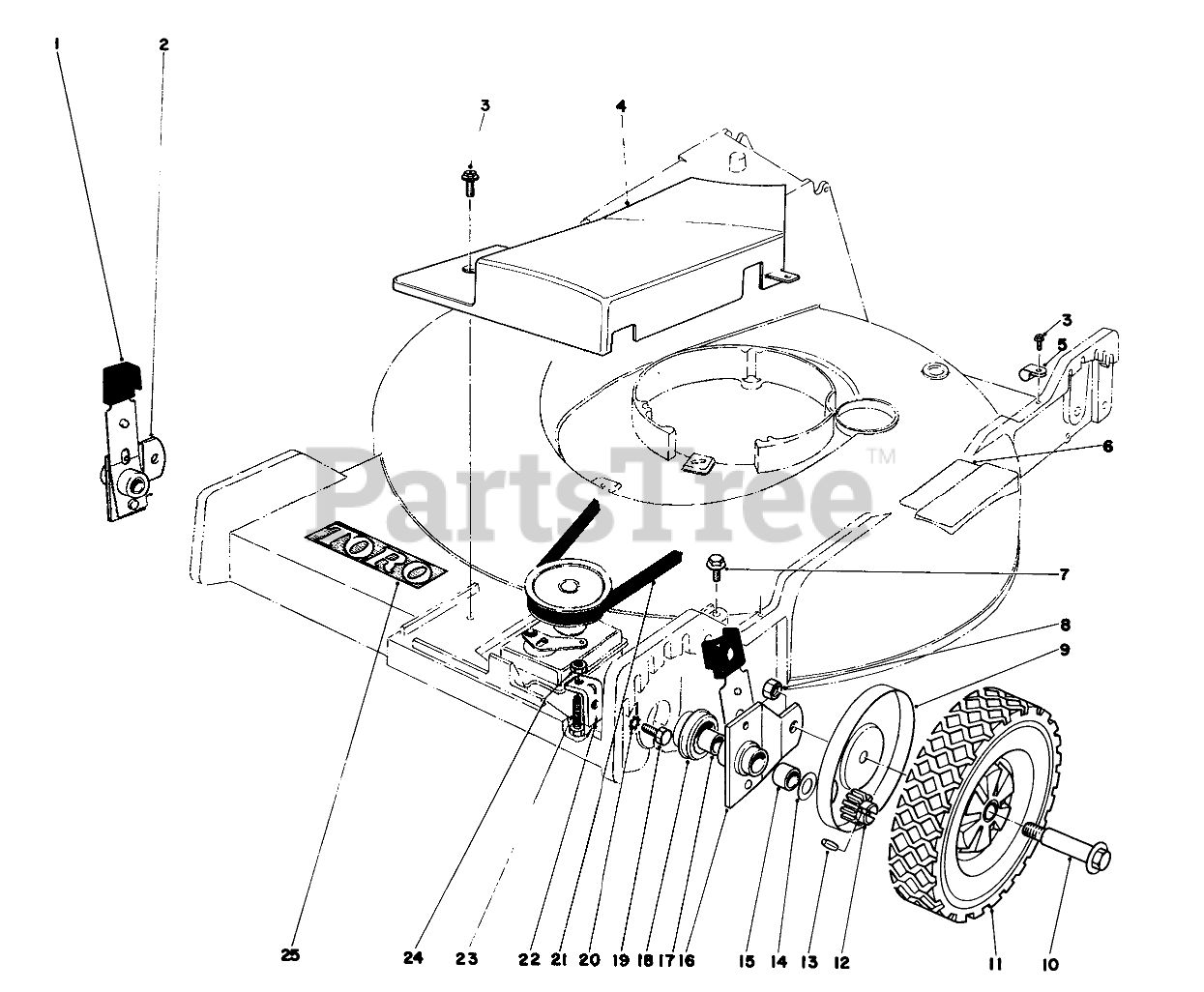

FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

2

Toro 38-1540

Pivot Arm R.H. (Incl. Ref. #15 & 17)

$

$

Not available

3

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

4

Toro 33-2950

BELT COVER

$

$

Not available

5

Toro 2412-52

CLAMP-NYLON

$

$

Not available

6

Toro 40-3200

Decal Place Foot Here

$

$

Not available

7

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

8

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

9

Toro 23-0280

WHEEL COVER

$

$

Not available

10

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

11

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

12

Toro 18-9690

Pinion
(Superseded to 99-2532)

$15.99

$

Usually ships in 3-6 days

0

13

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

14

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

15

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, only 4 left!

0

16

Toro 38-1550

Pivot Arm L.H. (Incl. Ref. #15 & 17)
(Superseded to 36-2600)

$

$

Not available

17

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 36-9040

END CAP

$11.99

$

In Stock, only 1 left!

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

21

Toro 24-9730

V-BELT

$23.99

$

Usually ships in 3-6 days

0

22

Toro 25-7560

Bracket-Gear Box

$

$

Not available

23

Toro 3-7281

SCREW

$

$

Not available

24

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 9

0

25

Toro 40-5480

Decal-Toro
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0
