20764 BC - Toro 53cm Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) HOUSING ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

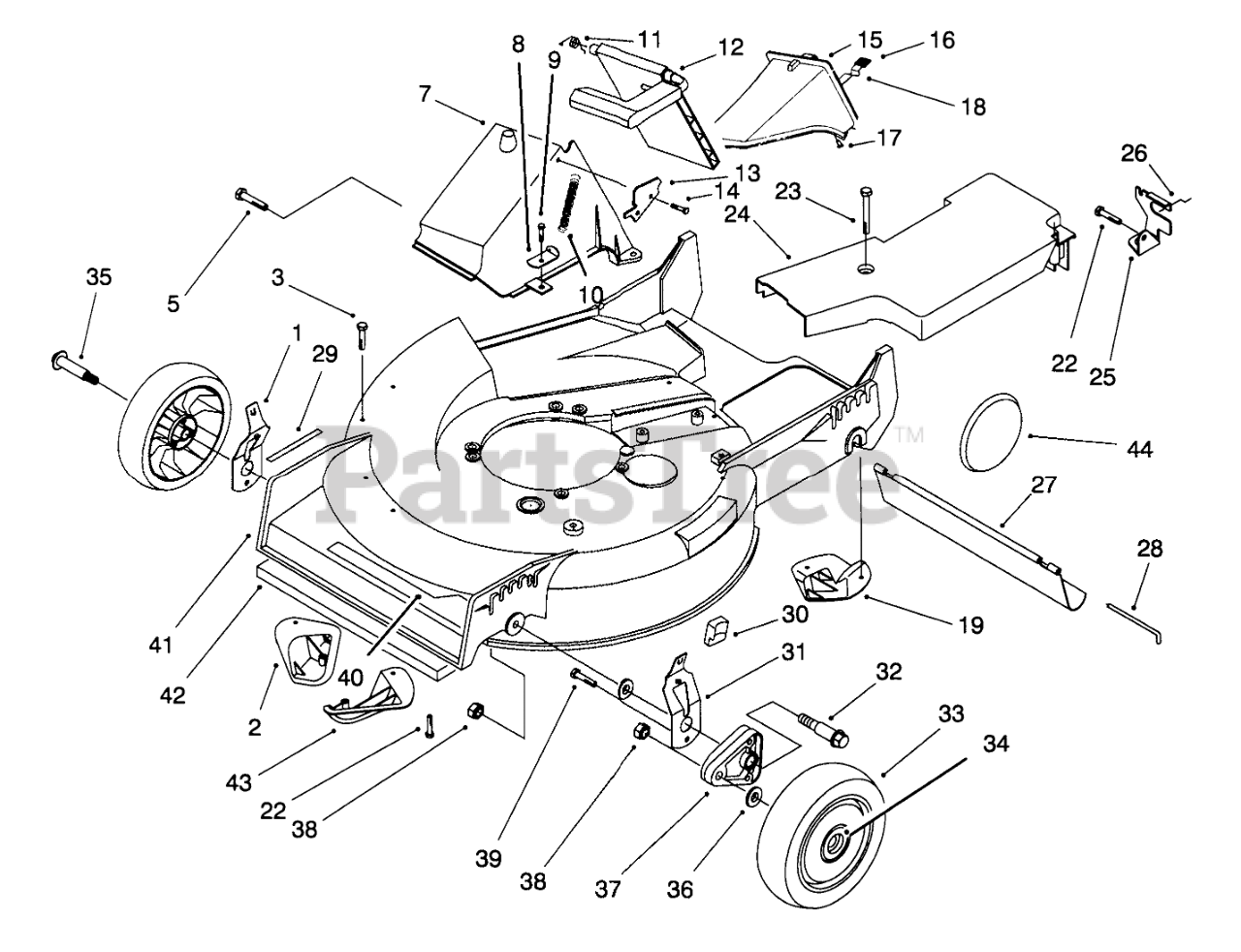

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

2

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 2 left!

0

3

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

5

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

7

Toro 82-9151

TUNNEL-DISCHARGE

$164.99

$

Usually ships in 3-6 days

0

8

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

9

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

10

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 5

0

11

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 2 left!

0

12

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

13

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

14

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

15

Toro 77-0502

Plug Assembly(Incl. Ref. #16-18)

$123.99

$

Usually ships in 3-6 days

0

16

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

17

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

18

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

19

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, only 3 left!

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

24

Toro 82-9910

BELT COVER

$

$

Not available

25

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

26

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

27

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

28

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

29

Toro 92-7856

DECAL - HOC

$

$

Not available

30

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

31

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

32

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

33

Toro 14-9949

Wheel & Tire Assembly(Incl. Ref. #34)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

34

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

35

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

36

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

37

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

38

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

40

Toro 92-7858

DECAL - DECK

$

$

Not available

41

Toro 16-8719

Housing Assembly (Incl. Ref. #2,3,19,29,43 pg. 2)(Incl. Ref. #5 & 6 pg. 3)

$

$

Not available

42

Toro 46-5400

Shield-front
(Superseded to 46-5400-03)

$56.99

$

Usually ships in 3-6 days

0

43

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

44

Toro 92-7663

COVER-WHEEL
(Superseded to 100-6351)

$20.99

$

Usually ships in 3-6 days

0
