20764 BC - Toro 53cm Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE GTS 150 Parts Diagram

53cm Recycler Walk-Behind Mower

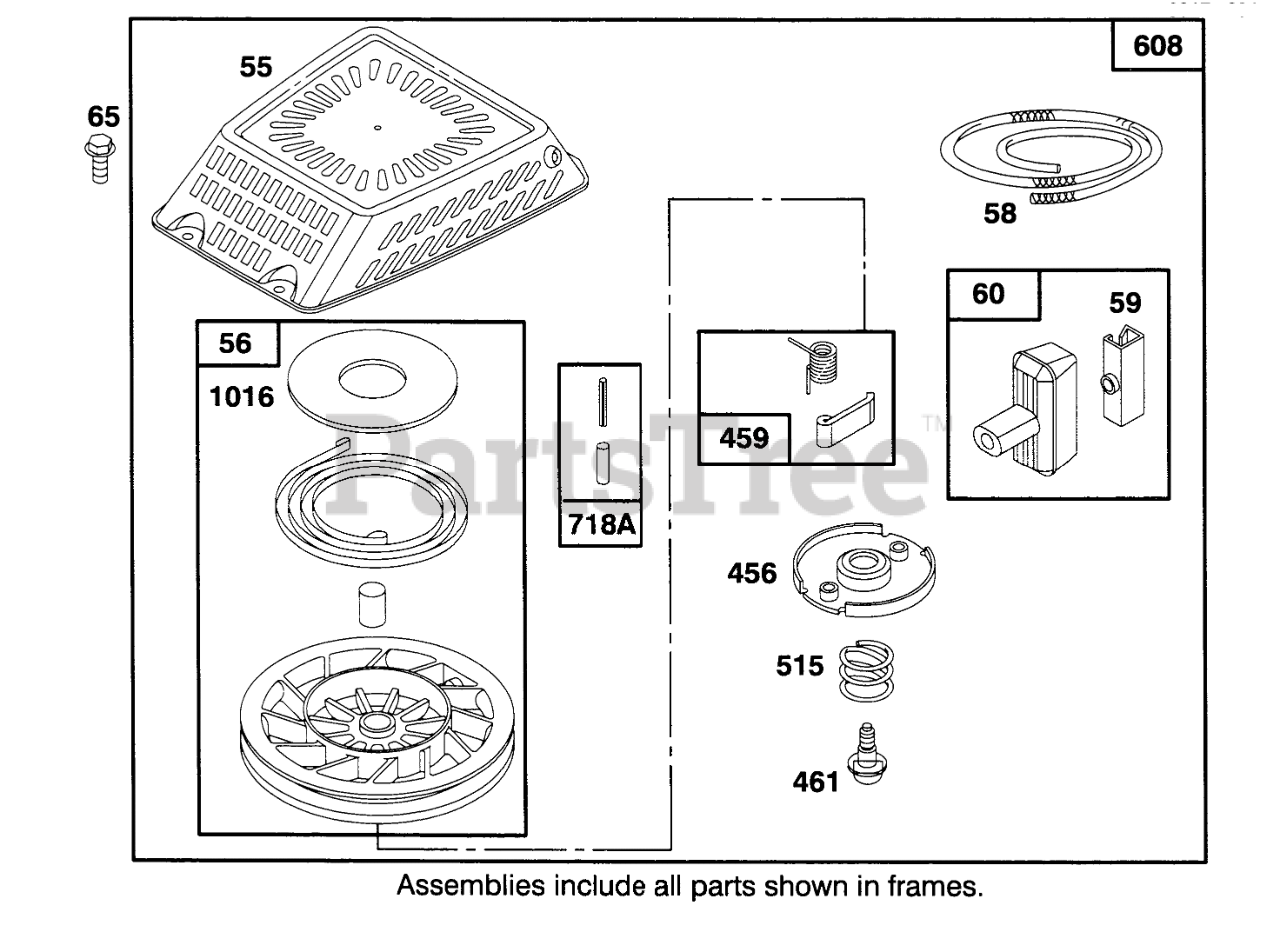

ENGINE GTS 150 Parts Diagram

  • Title
55

Toro 77-8890

Housing Rewind Starter
(Superseded to 94-1656)

$

$

Not available

56

Toro 77-9270

REWIND STARTER PULLEY

$

$

Not available

58

Toro 77-8480

ROPE - STARTER

$

$

Not available

59

Toro 77-9380

INSERT - REWIND HANDLE

$

$

Not available

60

Toro 77-9390

HANDLE-REWIND STARTER

$10.99

$

Usually ships in 3-6 days

0

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

456

Toro 77-8470

RETAINER - SPRING

$

$

Not available

459

Toro 77-8530

PAWL - RATCHET

$

$

Not available

461

Toro 77-8490

SCREW - HEX HEAD

$

$

Not available

515

Toro 77-8500

SPRING - RETAINER

$15.99

$

In Stock, only 1 left!

0

608

Toro 77-9400

Starter Assy-Rewind
(Superseded to 94-1661)

$

$

Not available

718A

Toro 77-8550

DAWL - SLEEVE

$

$

Not available

1016

Toro 77-8570

COVER - PULLEY

$

$

Not available
