20764 B - Toro 53cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

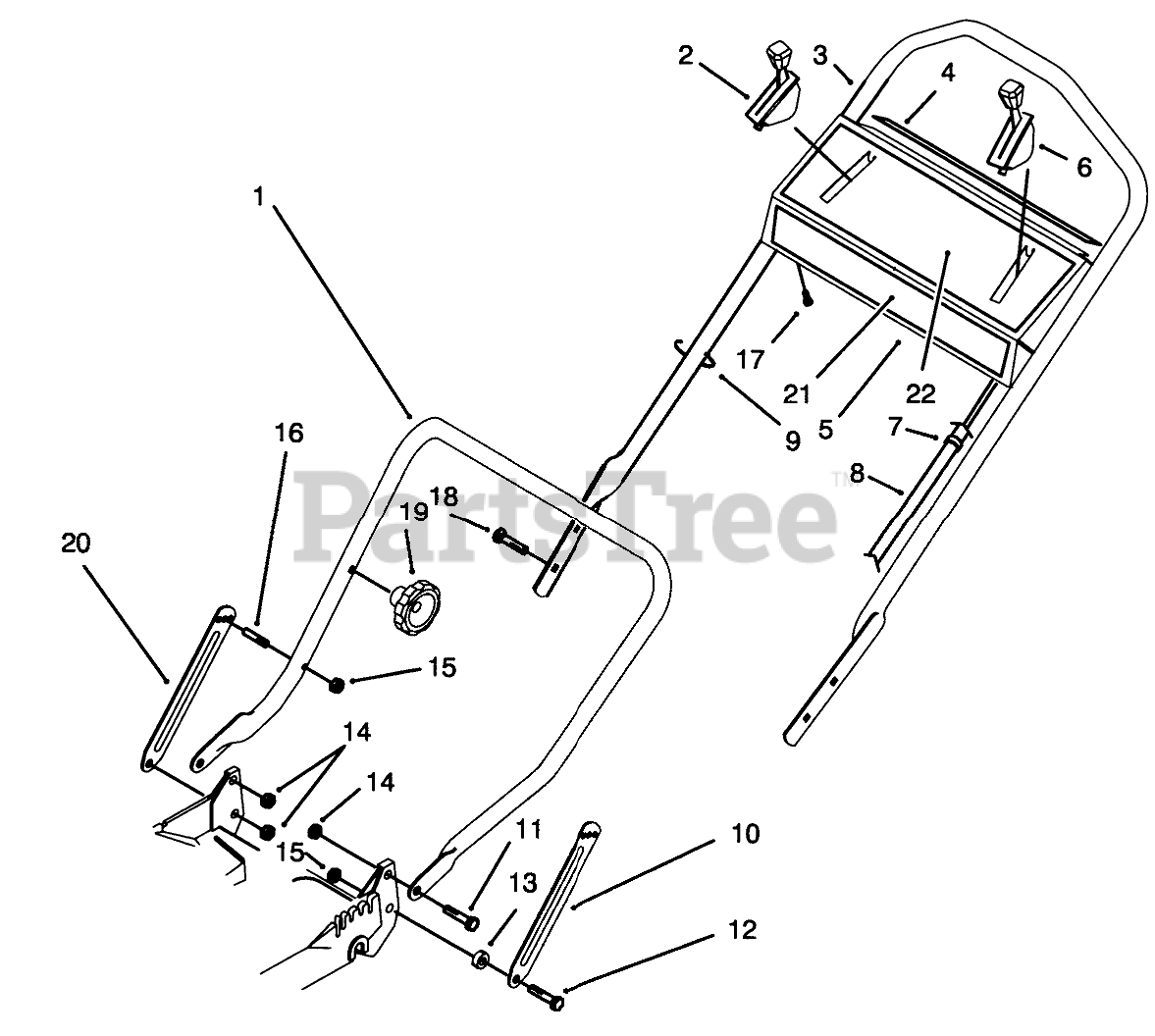

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-5530

LOWER HANDLE ASM

$

$

Not available

2

Toro 76-2712

CONTROL-SPEED, GROUND

$49.99

$

In Stock, only 1 left!

0

3

Toro 84-8330

UPPER HANDLE, PVC DIP

$

$

Not available

4

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$10.99

$

Usually ships in 3-6 days

0

5

Toro 13-6019

Panel-Control (Incl. Ref. #4 & 22)

$

$

Not available

6

Toro 66-0236

THROTTLE CONTROL

$131.99

$

Usually ships in 3-6 days

0

7

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

8

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Toro 84-8360

LH HANDLE LATCH

$19.99

$

Usually ships in 3-6 days

0

11

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

12

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

16

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$36.99

$

Usually ships in 3-6 days

0

17

Toro 32144-115

10-16X1/2 SHWH SCREW
(Superseded to 92-9665)

$6.99

$

In Stock, Qty 20+

0

18

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

19

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

20

Toro 84-8400

RH HANDLE LATCH

$

$

Not available

21

Toro 92-7859

DECAL - PANEL (TORO)

$

$

Not available

22

Toro 66-0290

DECAL - INSTRUCTION

$

$

Not available
