20764 B - Toro 53cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE ASSEMBLY Parts Diagram

53cm Recycler Walk-Behind Mower

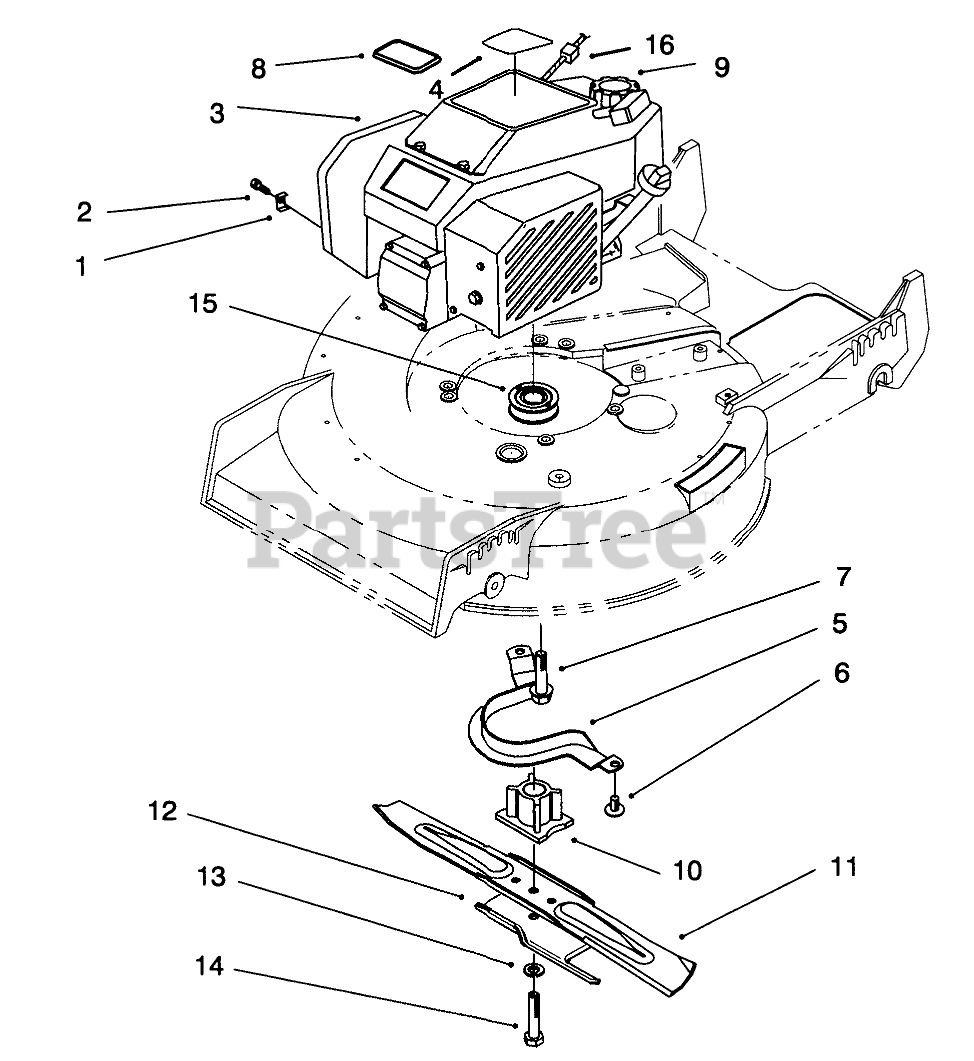

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

2

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

3

Toro 92-8872

ASM-ENGINE,GTS150 NC

$

$

Not available

4

Toro 92-7857

DECAL - ENGINE
(Superseded to 93-4355)

$

$

Not available

5

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

9

Toro 110352

ASSY FUEL CAP

$

$

Not available

10

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

11

Toro 91-2256

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

12

Toro 92-1599

Accelerator
(Superseded to 92-1599-03)

$79.99

$

Usually ships in 3-6 days

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

14

Toro 26-0670

SCREW-BLADE

$

$

Not available

15

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

16

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0
