20762 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

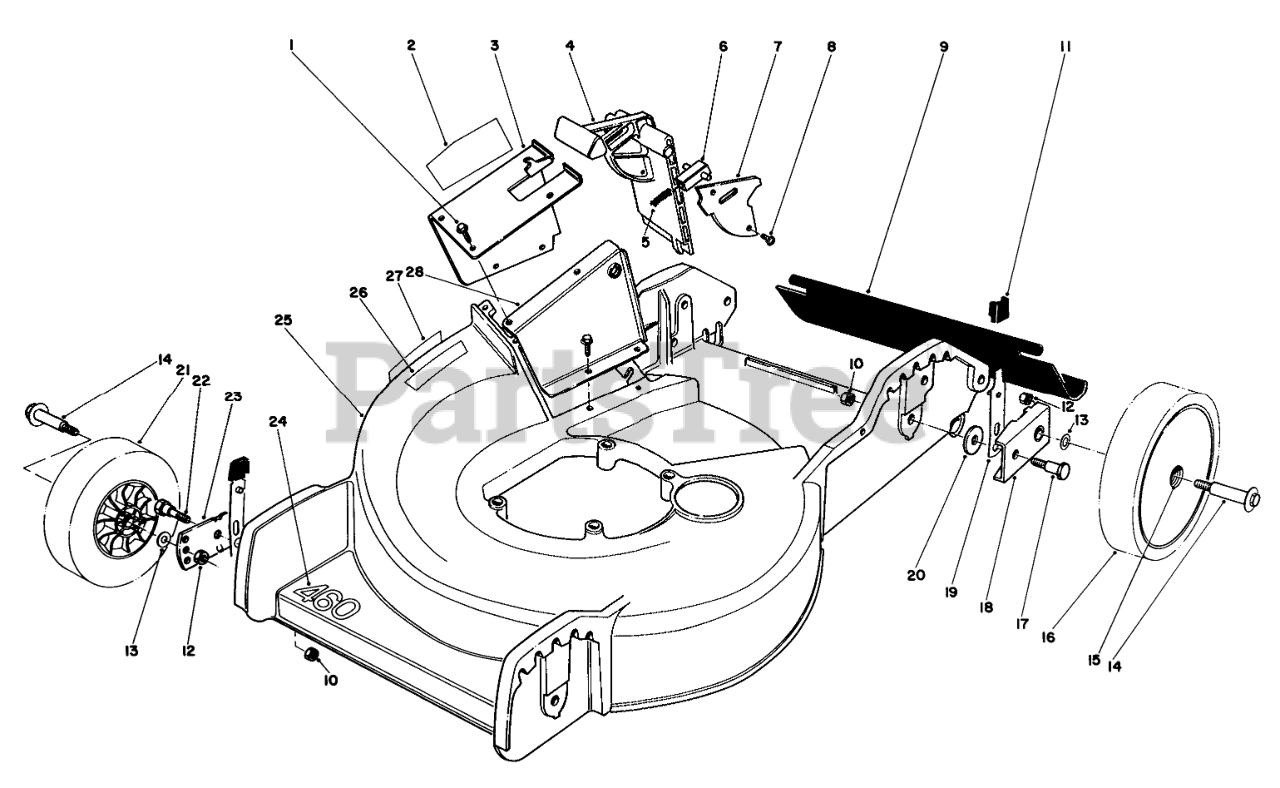

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

2

Toro 46-2400

Decal-Danger

$

$

Not available

3

Toro 11-5509

Tunnel-Outer (Incl. Ref. #2)

$

$

Not available

4

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

5

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

6

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

7

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$11.99

$

Usually ships in 3-6 days

0

8

Toro 32144-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33-2380

SHIELD - TRAILING

$59.99

$

Usually ships in 3-6 days

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

11

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

12

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

13

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

14

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

15

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

16

Toro 44-0561

Wheel & Tire Assembly (Incl.Ref. #15)

$

$

Not available

17

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 8

0

18

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

19

Toro 25-8000

SPRING ARM ASM

$69.99

$

Usually ships in 3-6 days

0

20

Toro 33-0390

PIVOT WASHER

$3.49

$

In Stock, only 2 left!

0

21

Toro 46-1111

Wheel & Tire Assembly (Incl.Ref. #15)
(Superseded to 46-1113)

$

$

Not available

22

Toro 25-3440

PIVOT SCREW

$

$

Not available

23

Toro 33-0400

PIVOT ARM ASSY

$33.99

$

Usually ships in 3-6 days

0

24

Toro 46-8330

Decal-460

$

$

Not available

25

Toro 11-4059

Housing

$

$

Not available

26

Toro 40-2720

Decal-Place Foot Here

$

$

Not available

27

Toro 46-7370

STEP PAD DECAL

$24.99

$

Usually ships in 3-6 days

0

28

Toro 33-0430

Inner Tunnel

$

$

Not available
