20762 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

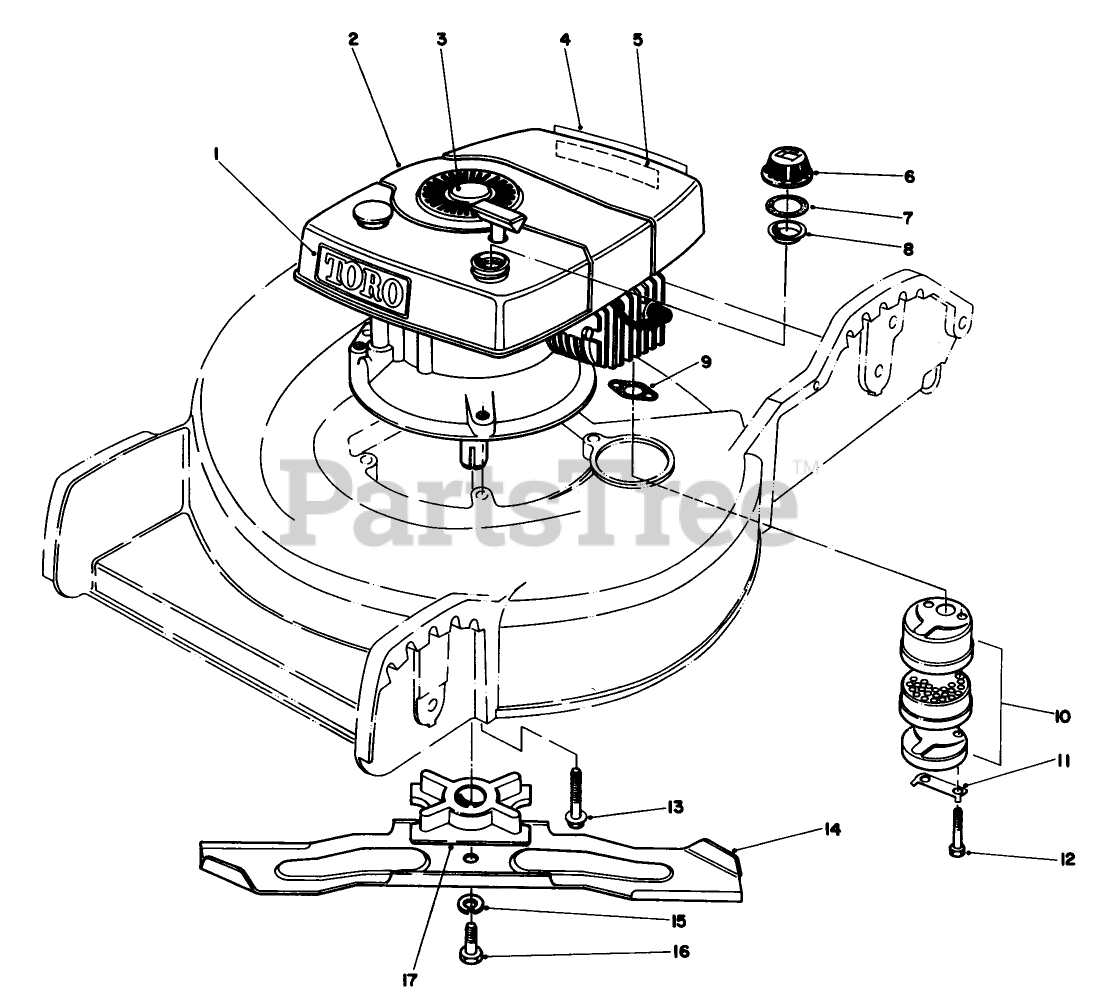

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 46-8360

Engine

$

$

Currently unavailable

3

Toro 38-1481

Plug Button

$

$

Not available

4

Toro 46-9300

Decal-Primer

$

$

Not available

5

Toro 40-2950

Decal Maintenance

$

$

Not available

6

Toro 42-0682

Gas Cap Assembly (Incl Ref. #788)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 11-9580

MUFFLER GASKET

$

$

Not available

10

Toro 5-4769

Muffler Assembly (Incl. Ref. #11 & 12)

$62.99

$

Usually ships in 3-6 days

0

11

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

12

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

13

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

14

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

Usually ships in 3-6 days

0

15

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

16

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

17

Toro 49-7890

BLADE RETAINER

$

$

Not available

Toro 39-5930

Spark Arrestor Muffler (Incl Ref. #11 & 12)

Note: Optional equipment

$

$

Not available
