20761 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

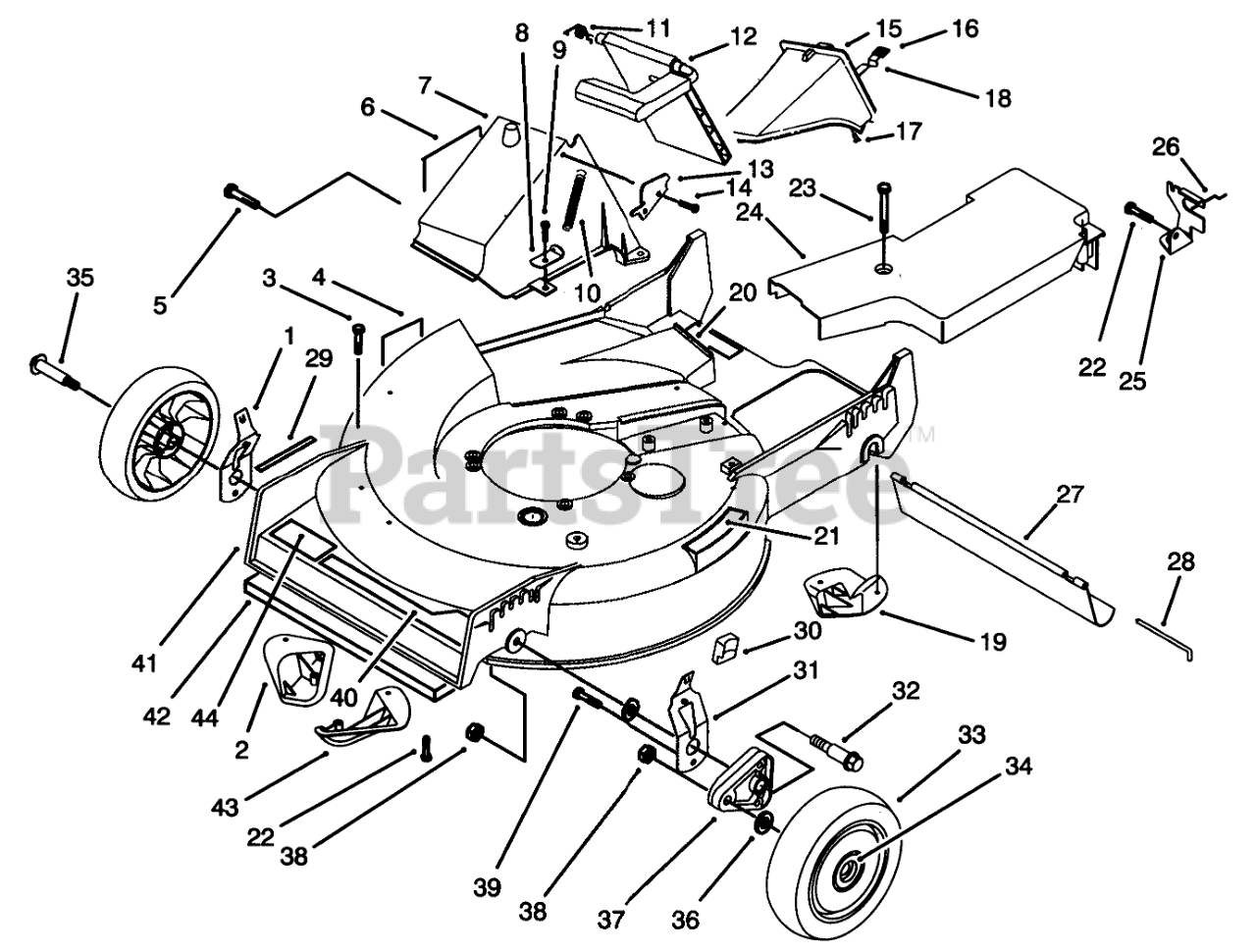

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

2

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

3

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

5

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, Qty 11

0

6

Toro 62-4060

DECAL - DANGER

$

$

Not available

7

Toro 14-7179

Tunnel-Discharge (Incl. Ref. #6)
(Superseded to 82-9150)

$

$

Not available

8

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

9

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

10

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

11

Toro 80-3770

RETAINER-DOOR

$7.49

$

In Stock, only 2 left!

0

12

Toro 77-0200

DOOR ASSEMBLY

$

$

Not available

13

Toro 76-4570

DOOR LATCH PLATE

$

$

Not available

14

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

15

Toro 77-0502

Plug Assembly (Incl. Ref. #16-18)

$

$

Not available

16

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

17

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

18

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

19

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

20

Toro 66-0680

DECAL FRENCH REGUL.

$

$

Not available

21

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 12

0

24

Toro 82-9910

BELT COVER

$

$

Not available

25

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

26

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

27

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

28

Toro 33-3208

ROD-SHIELD

$16.99

$

In Stock, Qty 12

0

29

Toro 92-2279

DECAL - HOC

$

$

Not available

30

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

31

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

32

Toro 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, only 1 left!

0

33

Toro 14-9949

Wheel & Tire Assembly (Incl. Ref. #34)
(Superseded to 51-2751)

$34.99

$

In Stock, only 4 left!

0

34

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

35

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

36

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

37

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, Qty 6

0

38

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

40

Toro 76-1950

DECAL - DECK

$19.99

$

Usually ships in 3-6 days

0

41

Toro 16-1599

Housing Assembly (Incl. Ref. #2, 3, 19, 22, 29, & 43 pg. 2) (Incl. Ref. #5 & 6 pg. 3)

$994.99

$

Usually ships in 3-6 days

0

42

Toro 46-5400

Shield-front
(Superseded to 46-5400-03)

$65.99

$

Usually ships in 3-6 days

0

43

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

44

Toro 71-0600

DECAL

$15.99

$

Usually ships in 3-6 days

0
