20761 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

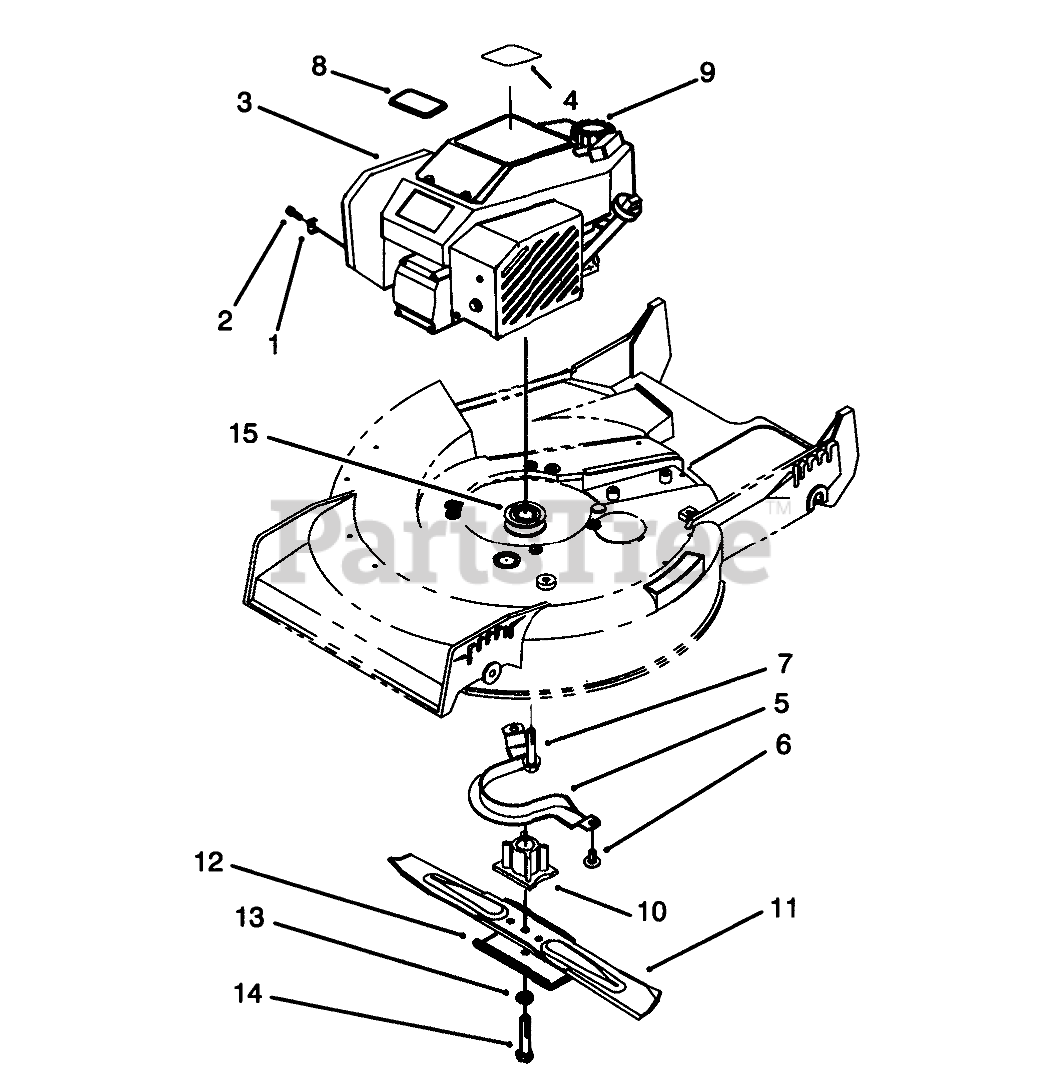

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

2

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

3

Toro 92-6528

ENG ASM-GTS 150 NC

$

$

Not available

4

Toro 80-4800

DECAL - ENGINE

$

$

Not available

5

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 76-4710

TORO LOGO PLATE

$

$

Not available

9

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

10

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

11

Toro 75-9420

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

12

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

14

Toro 26-0670

SCREW-BLADE

$

$

Not available

15

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available
