20758 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

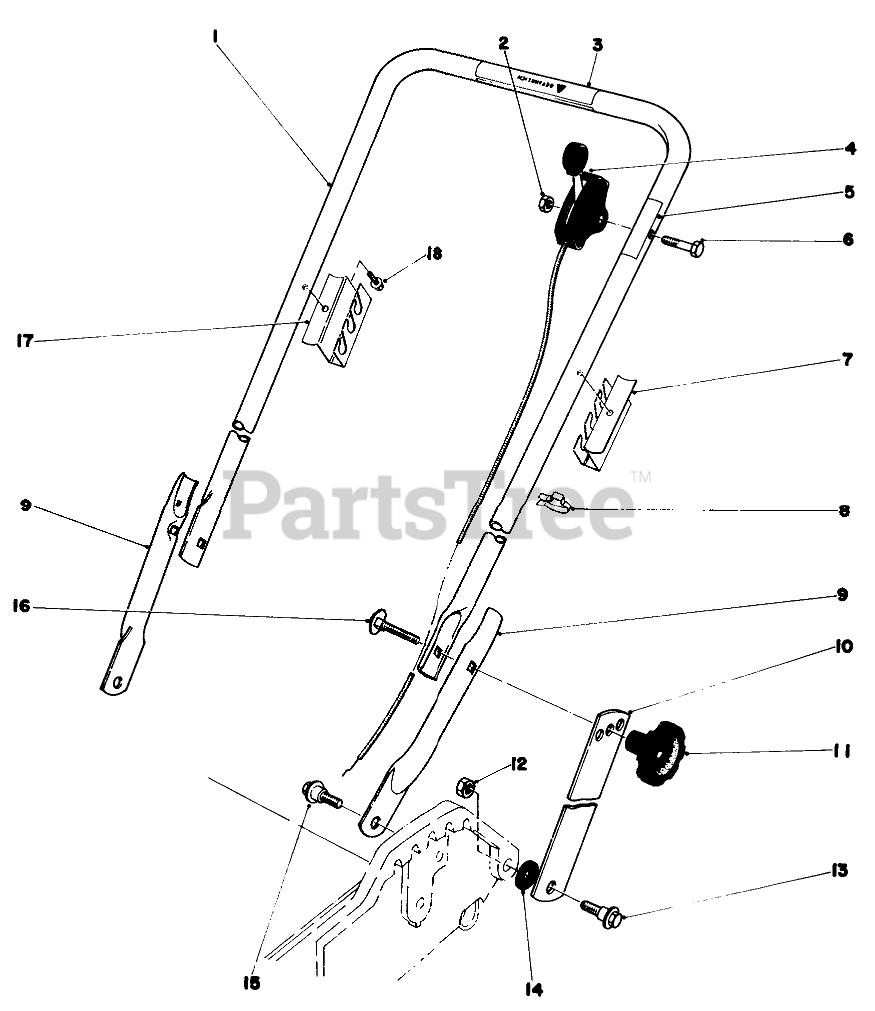

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-0510

Handle-Upper
(Superseded to 11-2859)

$

$

Not available

2

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

3

Toro 40-2510

Decal Danger

$

$

Not available

4

Toro 33-2530

Throttle Control
(Superseded to 46-6000)

$50.99

$

Usually ships in 3-6 days

0

5

Toro 39-2750

Decal-Throttle

$

$

Not available

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 36-0730

SUPPORT BAG LH

$

$

Not available

8

Toro 218-465

BOWDEN CLIP

$

$

Not available

9

Toro 33-0520

Hand-Lower

$

$

Not available

10

Toro 33-0530

18" HANDLE LATCH

$

$

Not available

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

12

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

13

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

14

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

15

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

16

Toro 17-9420

SCREW-HANDLE

$3.99

$

Usually ships in 3-6 days

0

17

Toro 36-0740

SUPPORT BAG RH

$

$

Not available

18

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
