20755 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

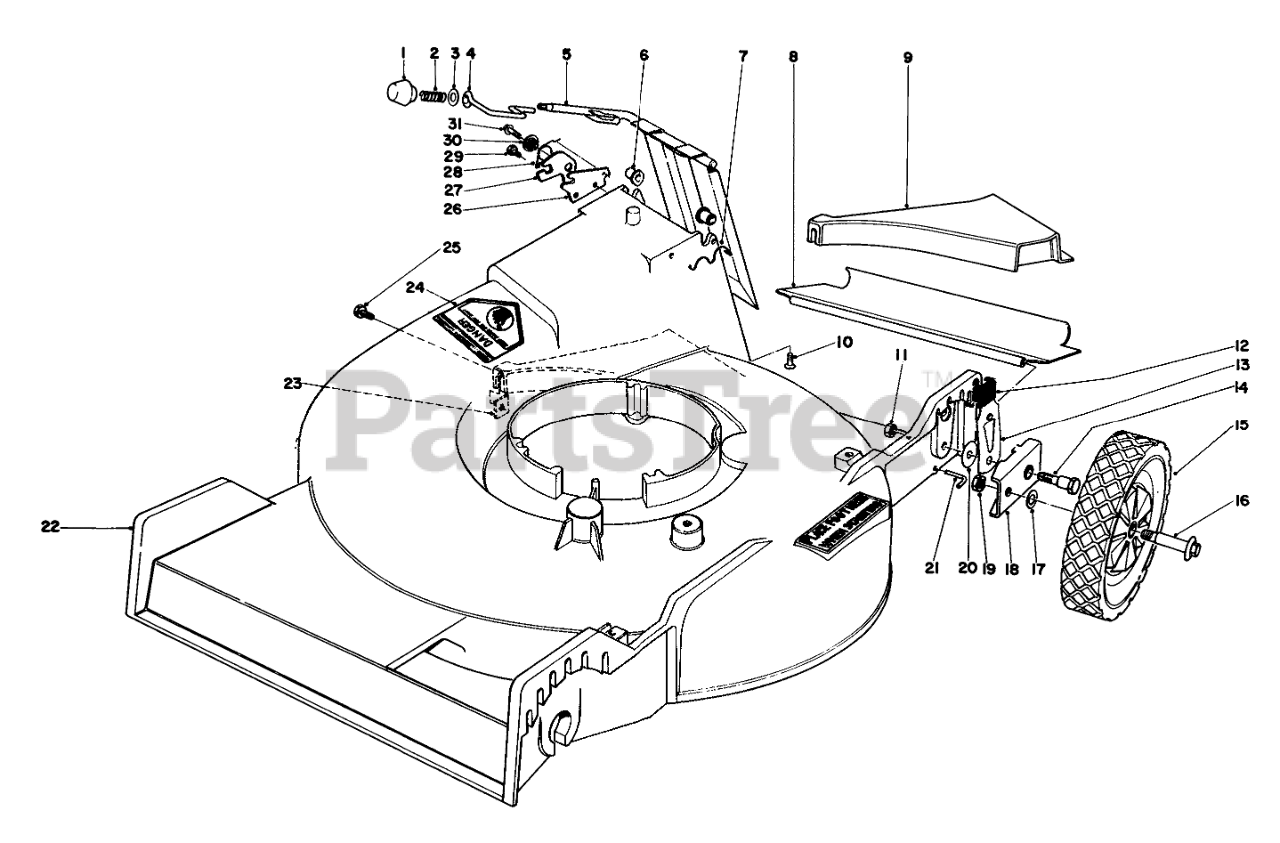

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

2

Toro 23-0920

COMPRESSION SPRING

$8.99

$

Usually ships in 3-6 days

0

3

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

4

Toro 23-0940

DOOR LATCH

$

$

Not available

5

Toro 43-7900

DOOR HANDLE WA

$

$

Not available

6

Toro 23-4880

Bushing

$

$

Currently unavailable

7

Toro 33-4830

DOOR RETAINER

$

$

Not available

8

Toro 23-0560

REAR SAFETY SHIELD

$

$

Not available

9

Toro 23-0360

REAR INSERT

$

$

Not available

10

Toro 32144-17

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

11

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Toro 44-1020

SPRING ARM ASM HP

$

$

Not available

14

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 8

0

15

Toro 27-4200

Lever-Valve
(Superseded to 27-4200-03)

$

$

Not available

16

Toro 27-4230

Wheel Bolt
(Superseded to 27-4230-03)

$

$

Not available

17

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

18

Toro 42-2430

Pivot Arm
(Superseded to 47-2940)

$51.99

$

Usually ships in 3-6 days

0

19

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

20

Toro 33-0390

PIVOT WASHER

$3.49

$

In Stock, only 2 left!

0

21

Toro 33-3202

ROD-SHIELD

$7.99

$

In Stock, only 1 left!

0

22

Toro 8-9589

Housing (Incl. Ref. #24)

$

$

Not available

23

Toro 26-0660

SPECIAL NUT

$

$

Not available

24

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

25

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

26

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

27

Toro 424010

Latch-Door

$

$

Currently unavailable

28

Toro 23-1200

TORSION SPRING

$

$

Not available

29

Toro 32104-17

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

30

Toro 434840

Latch Spacer

$

$

Currently unavailable

31

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

Toro 11-2129

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 26-9510

Replacement Stud Kit

Note: Not illustrated

$

$

Not available
