20755 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) FRONT WHEEL & PIVOT ARM ASSEMBLY Parts Diagram

Walk-Behind Mower

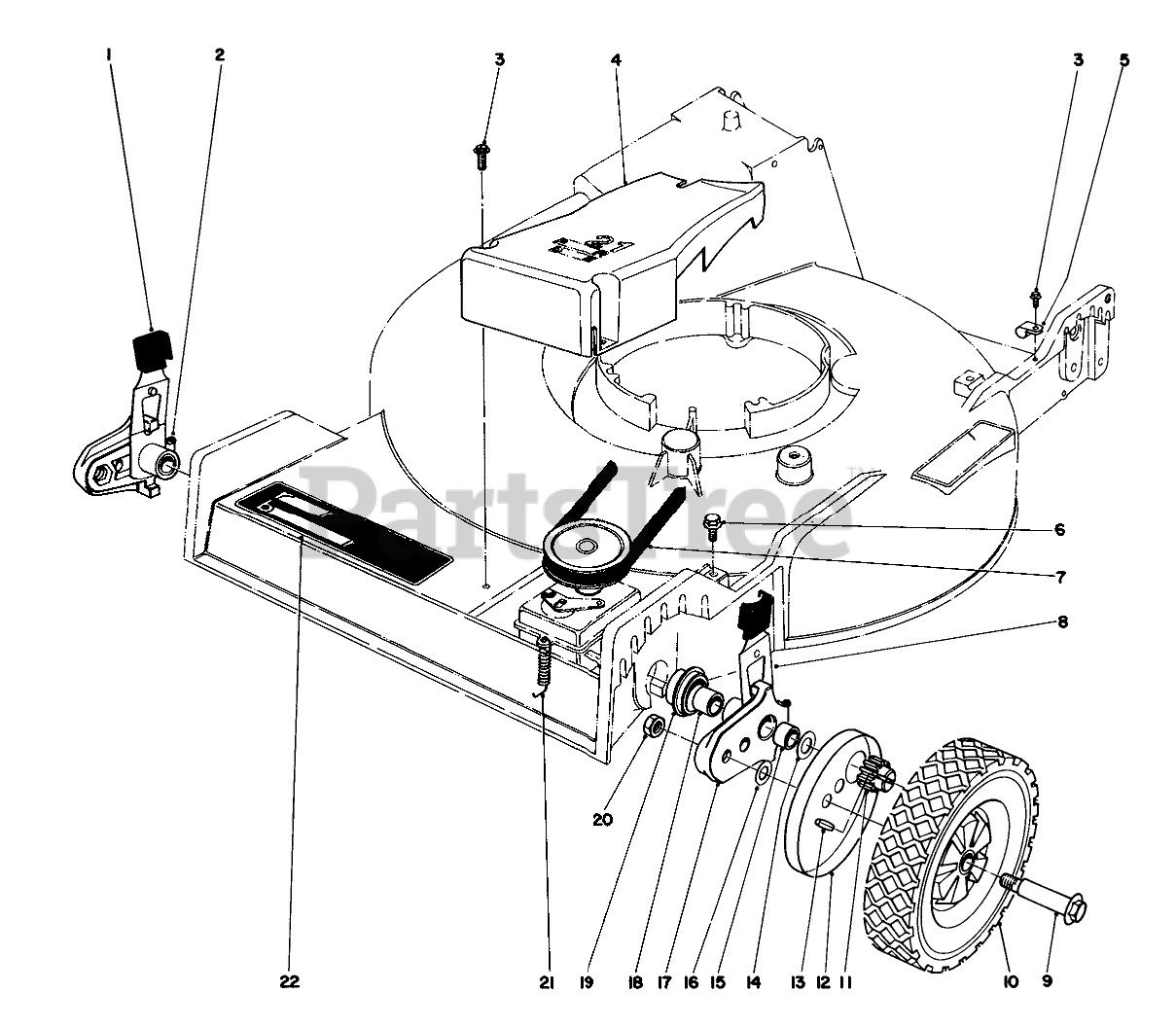

FRONT WHEEL & PIVOT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

2

Toro 302-18

FITTING-GREASE

$4.49

$

Usually ships in 3-6 days

0

3

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

4

Toro 44-0670

Belt Cover

$

$

Not available

5

Toro 2412-52

CLAMP-NYLON

$

$

Not available

6

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

7

Toro 5-4505

V BELT

$23.99

$

Usually ships in 3-6 days

0

8

Toro 44-1030

SPRING ARM ASM SP

$

$

Not available

9

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

10

Toro 36-7790

Wheel & Tire Assembly
(Superseded to 11-1419)

$

$

Not available

11

Toro 42-2400

Pinion Gear
(Superseded to 99-5252)

$

$

Not available

12

Toro 36-5630

Cover-Wheel
(Superseded to 36-5630-03)

$36.99

$

Usually ships in 3-6 days

0

13

Toro 32121-98

Pin
(Superseded to 32121-88)

$8.49

$

In Stock, only 2 left!

0

14

Toro 18-9810

WASHER-THRUST

$9.49

$

In Stock, only 2 left!

0

15

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

16

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

17

Toro 42-3510

Pivot Arm Assembly (Incl. Ref. #2, 15 & 18)

$

$

Not available

18

Toro 256-263

Bushing
(Superseded to 47-2900)

$6.49

$

In Stock, only 4 left!

0

19

Toro 36-9040

END CAP

$11.99

$

In Stock, only 1 left!

0

20

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

21

Toro 174490

Spring-Tension

$

$

Currently unavailable

22

Toro 44-0460

Decal-Deck

$

$

Not available
