20755 - Toro Walk-Behind Mower (SN: 002000001 - 002999999) (1982) CARBURETOR ASSEMBLY MODEL 93508-0192-01 Parts Diagram

Walk-Behind Mower

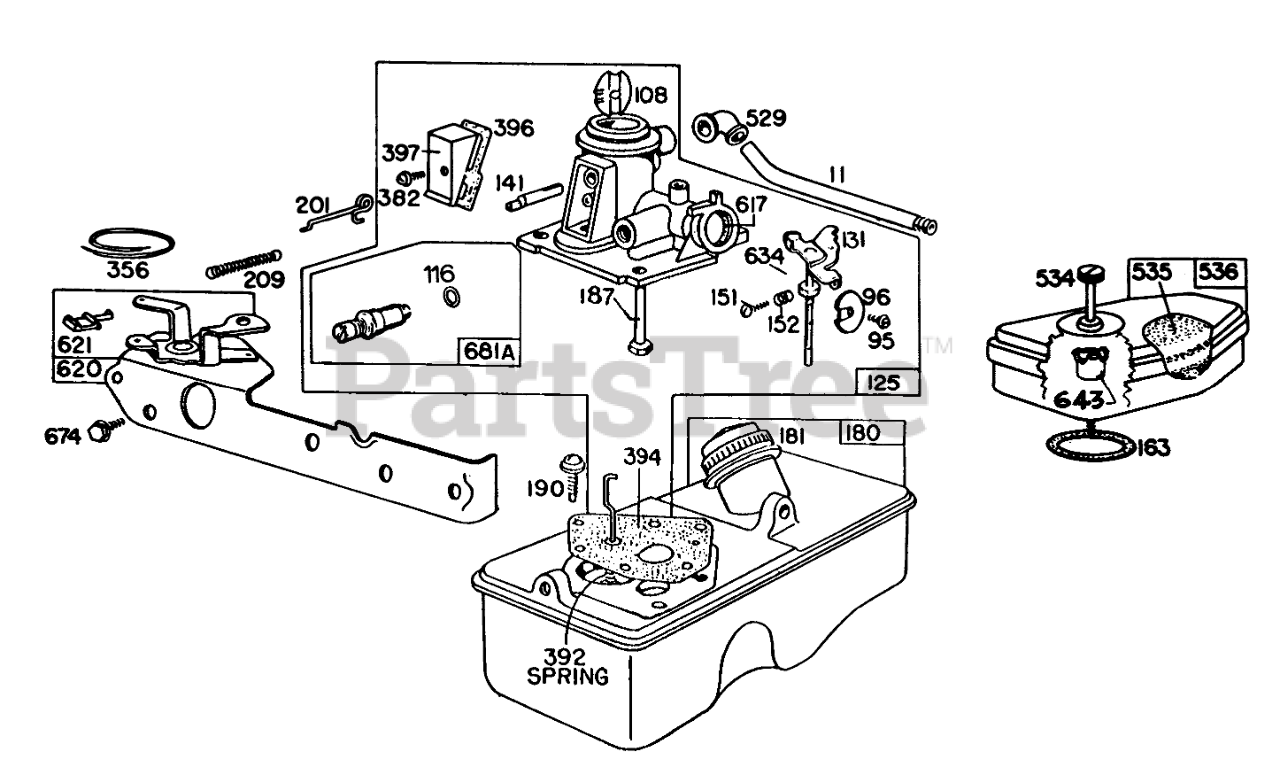

CARBURETOR ASSEMBLY MODEL 93508-0192-01 Parts Diagram

  • Title

11

Briggs & Stratton 230802

Tube Breather

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211203

Valve Throttle

$8.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

O-Ring
(Superseded to 691898)

$5.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 394591

Carburetor Assembly
(Superseded to 394596)

$57.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 394588

Shaft and Lever Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Rd. Hd

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

163

Briggs & Stratton 270816

Gasket-Air Cleaner Mtg.
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 393113

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 393001

Pipe-Fuel

$

$

Not available

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 260878

Link-Governor

$5.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260875

Spring-Governor for Engine 92508-1071-01

$6.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

382

Briggs & Stratton 93864

Screw-Choke Link Cover

$3.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 261016

Spring-Diaphragm

$6.49

$

Usually ships in 2-12 days

0

394

Briggs & Stratton 299637

Diaphragm-Carburetor

$27.99

$

Usually ships in 2-12 days

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

534

Briggs & Stratton 93374

Srew-Air Cleaner

$5.99

$

In Stock, only 1 left!

0

535

Briggs & Stratton 270579

Element Air Cleaner
(Superseded to 270579S)

$5.99

$

In Stock, Qty 20+

0

536

Briggs & Stratton 390055

Cleaner Assembly-Air

$16.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 299974

Plate Carburetor Control

$38.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

643

Briggs & Stratton 221321

Cup-Air Cleaner
(Superseded to 280374)

$7.49

$

Usually ships in 2-12 days

0

674

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

681A

Briggs & Stratton 393451

Needle Valve Kit
(Superseded to 395508)

$8.99

$

Usually ships in 2-12 days

0
