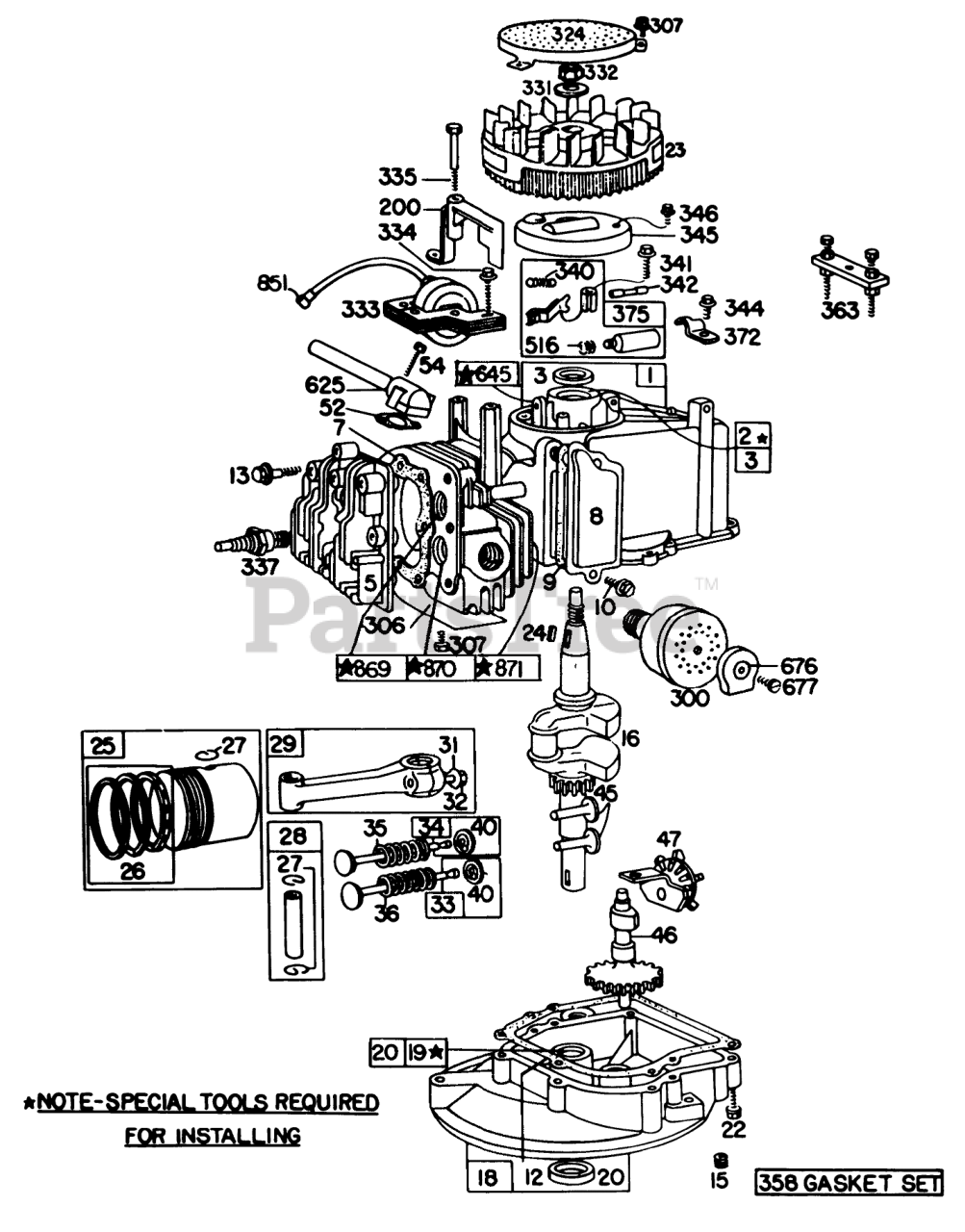

20755 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE BRIGGS & STRATTON MODEL 92908-1956-01, BRIGGS & STRATTON MODEL 93508-0192-01 Parts Diagram

Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 92908-1956-01, BRIGGS & STRATTON MODEL 93508-0192-01 Parts Diagram

  • Title

1

Briggs & Stratton 298988

Cylinder
(Superseded to 396002)

$248.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 89660

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 211479

Head Cylinder
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 270341

Gasket-Cylinder Hd.
(Superseded to 698717)

Note: Included in Gasket Set-Part No. 298989.

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 298383

Breather-Valve
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 270239

Gasket Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part No. 298989.

$4.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket-Crankcase-.015" thick
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 298989.

$

$

Not available

Briggs & Stratton 270895

Gasket-Crankcase .005"

Note: Included in Gasket Set-Part No. 298989.

$9.99

$

In Stock, only 2 left!

0

Briggs & Stratton 270896

Gasket-Crankcase .009"

Note: Included in Gasket Set-Part No. 298989.

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 93418

Plug
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 261417

Crankshaft
(Superseded to 494109)

$119.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 390810

Sump-Oil

$

$

Not available

19

Briggs & Stratton 293709

Bushing-Oil Base

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291841

&al, Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 299982

Key-Flywheel
(Superseded to 394848)

$46.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 61760

Key Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

Piston Assy.-Std.
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

Piston Assy.-010"O.S.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

Piston Assy.-020"O.S.

$

$

Not available

Briggs & Stratton 298907

Piston Assy. .030" O.S.

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Std.)

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$

$

Not available

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298985

Lock-Piston Pin

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294201

Rod Assy., Conn.
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

31

Briggs & Stratton 220756

Lock, Conn Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve Exhaust

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 230173

Tappet-Valve
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 210453

Gear-Cam
(Superseded to 793149)

$74.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 294652

Oil Slinger Gear & Bracket
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

Gasket-Intake Elbow
(Superseded to 270345S)

Note: Included in Gasket Set-Part No. 298989.

$4.49

$

In Stock, Qty 6

0

54

Briggs & Stratton 93485

Screw Intake Elbow Mtg.
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 68388

Blade Governor

$26.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 391435

Muffler-Exhaust
(Superseded to 394569S)

$10.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 221805

Shield Cylinder
(Superseded to 690400)

$6.49

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

324

Briggs & Stratton 222063

Screw-Rotating
(Superseded to 223006)

$10.99

$

Usually ships in 2-12 days

0

331

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 298502

Armature-Magneto
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93435

Screw-Armature & Governor Blade
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover Breaker Pt. & Cond.

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93014

Screw
(Superseded to 93014GS)

$14.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 298989

Gasket Set
(Superseded to 590777)

$

$

Not available

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

372

Briggs & Stratton 220477

Camp-Condenser

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Set

$

$

Not available

516

Briggs & Stratton 260374

Spring Connector

$7.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 298775

Tube Intake
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

645

Briggs & Stratton 23513

Bushing-Plunger

$2.49

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 222522

Deflector-Exhaust
(Superseded to 393760)

$9.49

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 210879

Seat-Intake Valve

$6.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Exhaust Valve
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0
