20755 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

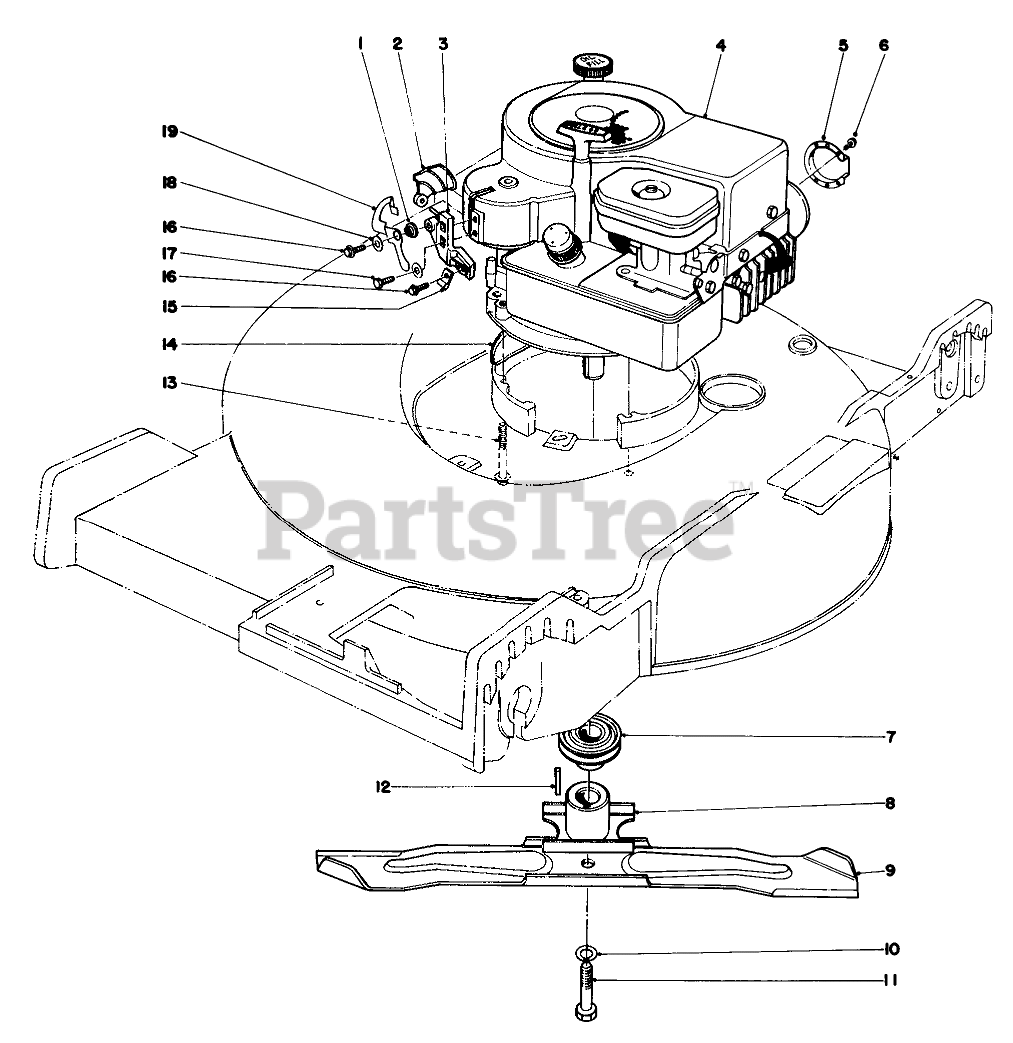

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 25-0520

BUSHING

$32.99

$

Usually ships in 3-6 days

0

2

Toro 25-0350

INTERLOCK LEVER

$

$

Not available

3

Toro 27-9280

CABLE & PIVOT BLOCK

$

$

Not available

4

Toro 221-549

Engine

$

$

Currently unavailable

5

Toro 2210-184

Deflector

$

$

Not available

6

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

7

Toro 21-5580

DRIVER PULLEY

$

$

Not available

8

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

9

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

11

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

12

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

13

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

14

Toro 27-7470

HOUSING CAP

$

$

Not available

15

Toro 2412-63

CLAMP

$

$

Not available

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 32144-19

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

18

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 25-8150

CAM INTERLOCK

$

$

Not available
