20752 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

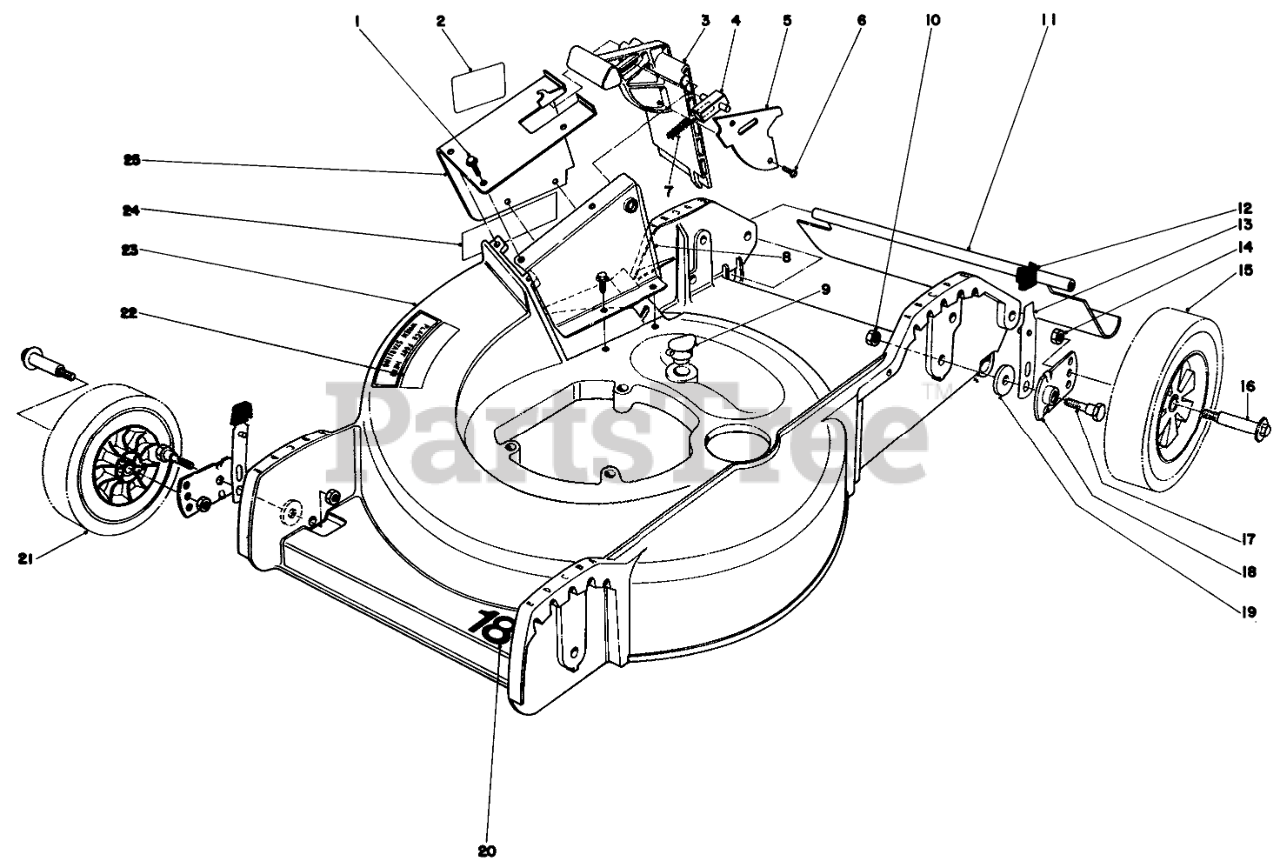

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

2

Toro 33-0460

Decal Door
(Superseded to 71-3410)

$

$

Not available

3

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

4

Toro 33-0470

Door Latch
(Superseded to 47-5551)

$

$

Not available

5

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$14.99

$

Usually ships in 3-6 days

0

6

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

7

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

8

Toro 33-0430

Inner Tunnel

$

$

Not available

9

Toro 6-4500

WASHOUT PLUG

$

$

Not available

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

12

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

13

Toro 25-7890

SPRING ARM ASM

$

$

Not available

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 33-5600

WHEEL & TIRE ASM

$

$

Not available

16

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

17

Toro 25-3440

PIVOT SCREW

$

$

Not available

18

Toro 33-0400

PIVOT ARM ASSY

$38.99

$

Usually ships in 3-6 days

0

19

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

20

Toro 33-0500

Decal

$

$

Not available

21

Toro 38-2650

Wheel & Tire Assembly
(Superseded to 27-6210)

$

$

Not available

22

Toro 36-9080

Decal Place Foot Here

$

$

Not available

23

Toro 8-3539

Housing

$

$

Not available

24

Toro 36-9090

Decal Door

$

$

Not available

25

Toro 33-0420

Tunnel Outer
(Superseded to 13-5829)

$

$

Not available

Toro 8-2149

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
