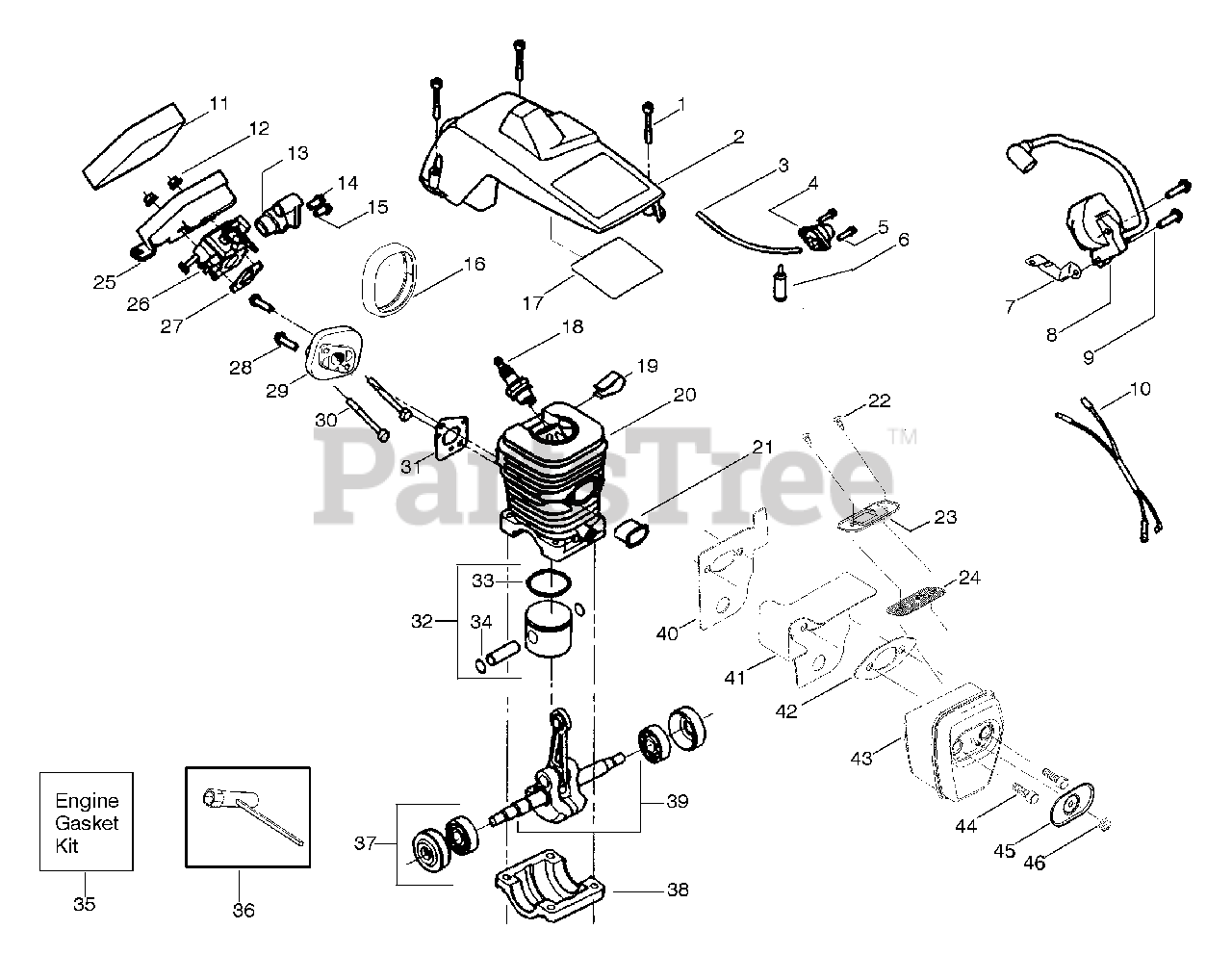

2075 LE - Poulan Chainsaw Engine Assembly Parts Diagram

Chainsaw

Engine Assembly Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 530055637

Assy-Cylinder Shield

Note: (Includes # 17)

$

$

Not available

3

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

4

Poulan 530047213

Assy-Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

5

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

7

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

9

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

10

Poulan 530052296

Assy-Wire Harness

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 530037793

Foam-Air Filter

$4.99

$

In Stock, Qty 7

0

12

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

13

Poulan 530049244

Grommet-Carb Adjust

$4.99

$

In Stock, only 3 left!

0

14

Poulan 530038479

Limiter Cap-High

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530038478

Limiter Cap-Low

$3.99

$

In Stock, Qty 19

0

16

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

17

Poulan 530055698

Reflector-Heat

$3.99

$

In Stock, only 1 left!

0

18

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

19

Poulan 530016136

Clip- High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 530071412

Kit- Cylinder
(Superseded to 530012550)

$51.99

$

Usually ships in 3-10 days

0

21

Poulan 530037652

Insulator- Heat

$

$

Not available

22

Poulan 530016351

Screw-Outlet cover

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530054883

Cover-

Note: Outlet

$

$

Not available

24

Poulan 530071413

Kit-Spark Arrestor
(Superseded to 530071904)

Note: (Incl. 22,23)

$20.99

$

Usually ships in 3-10 days

0

25

Poulan 530037804

Air Filter Housing
(Superseded to 530057480)

$

$

Not available

26

Poulan 530071410

Kit-Carburetor (WT600)

Note: (Incl. 14 & 15)

$

$

Not available

27

Poulan 530069608

Gasket-Carb.

$8.99

$

In Stock, Qty 13

0

28

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

29

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

30

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530069608

Gasket-Carb Adaptor

$8.99

$

In Stock, Qty 13

0

32

Poulan 530071408

Kit-Piston

Note: (Incl. 33 & 34)

$

$

Not available

33

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

34

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

35

Poulan 530069608

Kit-Engine Gasket

Note: (Incl. 27, 31 & 42)

$8.99

$

In Stock, Qty 13

0

36

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 12

0

37

Poulan 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

38

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

39

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

40

Poulan 530054885

Backplate

$

$

Not available

41

Poulan 530054880

Guide-Outlet

$

$

Not available

42

Poulan 530069608

Gasket-Muffler

$8.99

$

In Stock, Qty 13

0

43

Poulan 530054886

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 22-24)

$20.99

$

Usually ships in 3-10 days

0

44

Poulan 530016338

Bolt-Muffler

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530055586

Cover-Bolt

$

$

Not available

46

Poulan 530016359

Nut-Brass
(Superseded to 574266401)

$4.99

$

In Stock, Qty 6

0

Poulan 530086523

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0
