20747 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

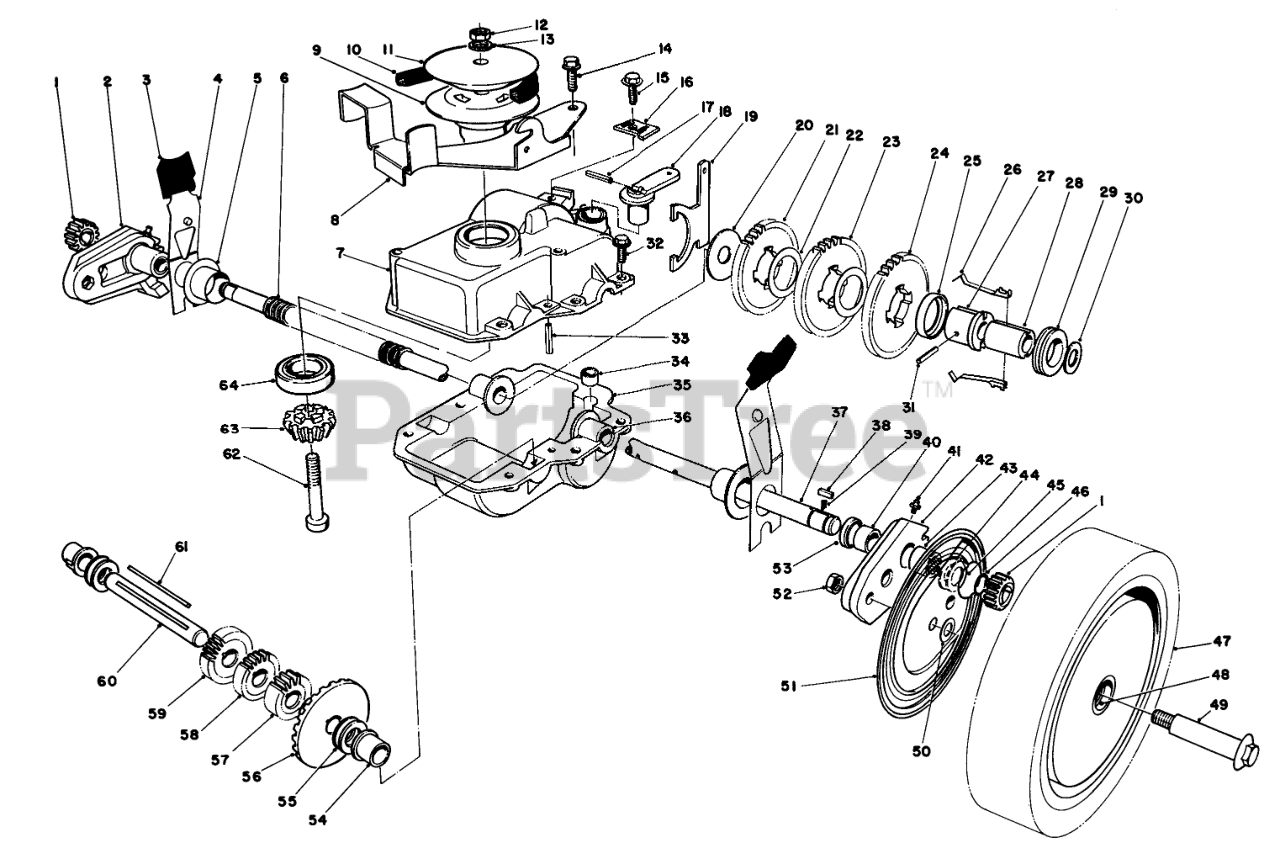

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

2

Toro 49-7720

Pivot Arm Assembly-R.H. (Incl. Ref. #40, 41, 43 & 53)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 44-1010

SPRING ARM ASM SP

$45.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 49-8370

Case-Upper

$

$

Not available

8

Toro 49-8460

BELT GUIDE BRKTB

$

$

Not available

9

Toro 49-8330

PULLEY-LOWER HALF

$

$

Not available

10

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 15

0

11

Toro 49-8340

PULLEY-UPPER HALF

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

16

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

17

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

18

Toro 29-9560

LEVER-SHIFT

$16.99

$

Usually ships in 3-6 days

0

19

Toro 29-9520

Shift Yoke
(Superseded to 60-8870)

$23.99

$

In Stock, only 2 left!

0

20

Toro 29-9690

WASHER

$13.99

$

Usually ships in 3-6 days

0

21

Toro 42-4740

GEAR-38T

$84.99

$

In Stock, only 2 left!

0

22

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

23

Toro 29-9271

GEAR-42T

$88.99

$

Usually ships in 3-6 days

0

24

$79.99

$

In Stock, only 1 left!

0

25

Toro 39-7830

KEY RETAINER

$

$

Not available

26

Toro 29-9330

KEY-SHIFT

$27.99

$

In Stock, only 3 left!

0

27

Toro 39-6730

Body-Sleeve
(Superseded to 55-8010)

$19.99

$

In Stock, only 4 left!

0

28

Toro 39-6720

SLEEVE

$16.99

$

Usually ships in 3-6 days

0

29

Toro 29-9340

COLLAR-SHIFT

$40.99

$

Usually ships in 3-6 days

0

30

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

31

Toro 32121-106

PIN-SPRING
(Superseded to 32121-108)

$6.99

$

Usually ships in 3-6 days

0

32

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

33

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$1.99

$

Usually ships in 3-6 days

0

34

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

35

Toro 29-9410

LOWER GEAR CASE CAST

$

$

Not available

36

Toro 47-5220

Bushing-Output Shaft

$

$

Not available

37

Toro 44-0850

Output Shaft
(Superseded to 12-6659)

$267.99

$

Usually ships in 3-6 days

0

38

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

39

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 13

0

40

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

41

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

42

Toro 49-7710

Pivot Arm Assembly-L.H. (Incl. Ref. #40, 41, 43 & 53)

$

$

Not available

43

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

44

Toro 49-7690

INNER THRUST WASHER

$

$

Not available

45

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 15

0

46

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 6

0

47

Toro 11-9519

Wheel, Tire & Gear Assembly (Incl. Ref. #48)
(Superseded to 14-9959)

$62.99

$

In Stock, only 2 left!

0

48

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

49

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

50

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

51

Toro 52-4860

WHEEL COVER

$38.99

$

Usually ships in 3-6 days

0

52

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

53

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

54

Toro 52-5410

BUSHING

$

$

Not available

55

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

56

Toro 39-6670

BEVEL GEAR

$

$

Not available

57

Toro 46-3540

GEAR-12T

$13.99

$

In Stock, Qty 5

0

58

Toro 46-3550

GEAR-14T

$21.99

$

Usually ships in 3-6 days

0

59

Toro 39-6650

GEAR-18T

$13.99

$

In Stock, only 2 left!

0

60

Toro 46-9470

INTERMEDIATE SHAFT

$

$

Not available

61

Toro 39-7841

Key Square
(Superseded to 39-7843)

$

$

Not available

62

Toro 3274-61

Screw-Socket Hd

$

$

Not available

63

Toro 49-8350

BEVEL PINION

$

$

Not available

64

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

Toro 49-8610

Gear Case Complete

Note: Not illustrated

$

$

Not available
