20747 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

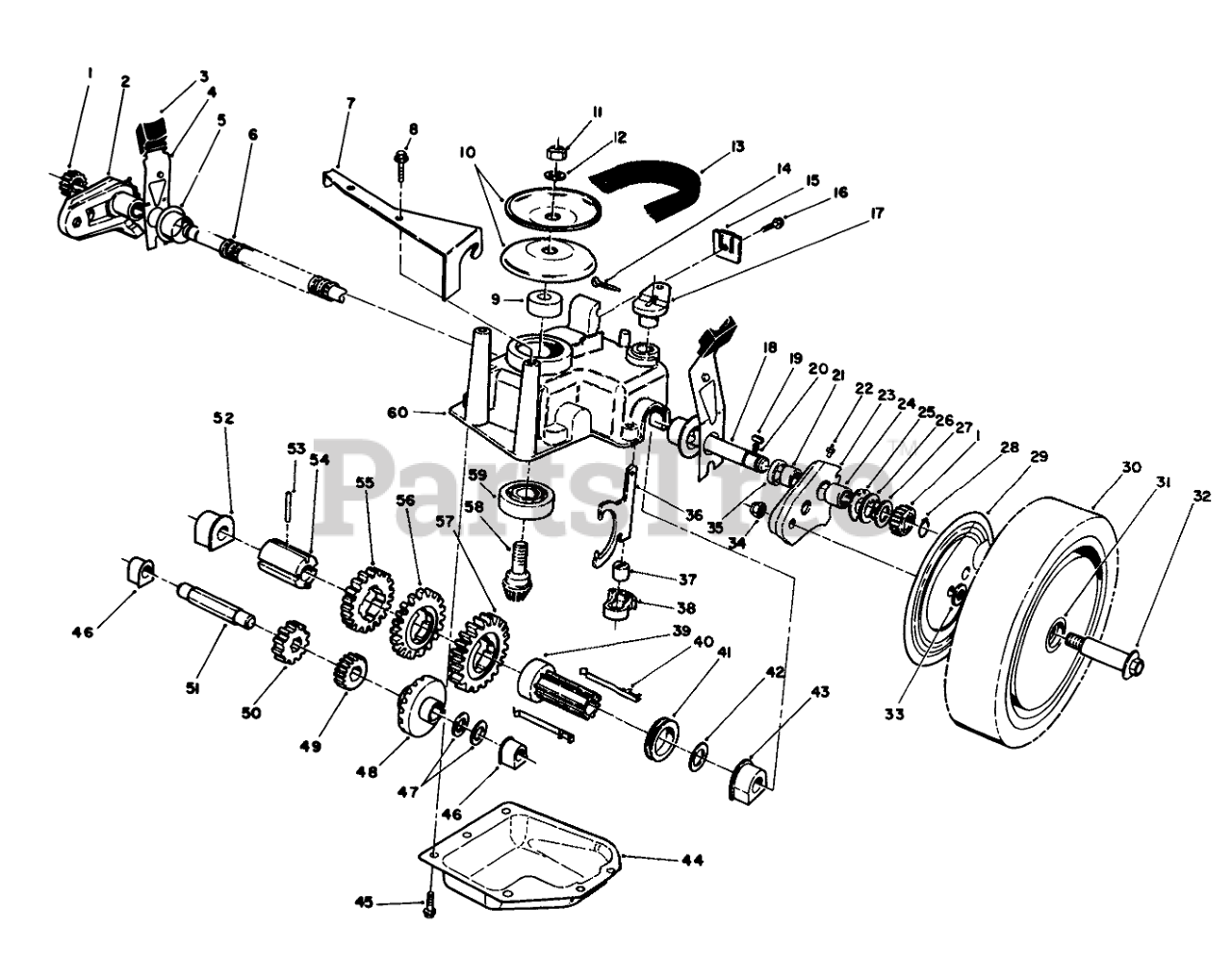

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

2

Toro 49-7720

Pivot Arm Assembly-R.H. (Incl. Ref. #21, 22, 24 & 35)

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 44-1010

SPRING ARM ASM SP

$45.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 62-4320

Bracket-Guide
(Superseded to 62-4320-03)

$

$

Not available

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

$

$

Not available

10

Toro 60-8840

Pulley Half
(Superseded to 100-1176)

$9.99

$

In Stock, only 2 left!

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

13

Toro 62-3900

V-BELT E

$25.99

$

In Stock, only 1 left!

0

14

Toro 3272-31

PIN-COTTER

$1.99

$

Usually ships in 3-6 days

0

15

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

16

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

17

Toro 60-8820

SHIFT LEVER

$9.99

$

Usually ships in 3-6 days

0

18

Toro 62-3280

Output Shaft
(Superseded to 12-6659)

$267.99

$

Usually ships in 3-6 days

0

19

Toro 39-9680

KEY RECTANGULAR

$5.99

$

In Stock, Qty 20+

0

20

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 11

0

21

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

22

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

23

Toro 49-7710

Pivot Arm Assembly-L.H. (Incl. Ref. #21, 22, 24 & 35)

$

$

Not available

24

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

25

Toro 49-7690

INNER THRUST WASHER

$

$

Not available

26

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 15

0

27

Toro 62-3830

WASHER-THRUST, OUTER

$3.99

$

In Stock, Qty 14

0

28

Toro 32121-68

PIN-ROLL

$1.99

$

In Stock, Qty 8

0

29

Toro 52-4860

WHEEL COVER

$38.99

$

Usually ships in 3-6 days

0

30

Toro 51-2741

Wheel-Tire & Gear Assembly (Incl. Ref. #31)
(Superseded to 14-9969)

$45.99

$

In Stock, only 2 left!

0

31

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

32

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

34

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

35

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

36

Toro 60-8870

YOKE-SHIFT

$23.99

$

In Stock, only 2 left!

0

37

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 4 left!

0

38

Toro 60-8810

RETAINER-FORK, SHIFT

$

$

Not available

39

Toro 60-8780

Sleeve-Shift Key
(Superseded to 74-3620)

$

$

Not available

40

Toro 60-8740

Key Shift
(Superseded to 99-5261)

$

$

Not available

41

Toro 60-8760

SHIFT COLLAR

$

$

Not available

42

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

43

Toro 60-8770

BUSHING-OUTPUT

$7.99

$

In Stock, only 3 left!

0

44

Toro 60-8730

Cover-Gearcase
(Superseded to 60-8730-03)

$

$

Not available

45

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

46

Toro 60-8750

BUSHING

$6.99

$

In Stock, Qty 10

0

47

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

48

Toro 55-3760

Gear-Bevel
(Superseded to 104-7668)

$34.99

$

In Stock, only 1 left!

0

49

Toro 55-3780

PINION-20T

$40.99

$

In Stock, only 1 left!

0

50

Toro 55-3800

PINION-25T

$46.99

$

Usually ships in 3-6 days

0

51

Toro 60-8800

SHAFT-INTERMEDIATE
(Superseded to 614696)

$108.99

$

Usually ships in 3-6 days

0

52

Toro 60-8850

BUSHING

$8.49

$

In Stock, Qty 17

0

53

Toro 32121-120

PIN-SPRING

$1.99

$

In Stock, only 2 left!

0

54

Toro 60-8790

SLEEVE-GEAR

$58.99

$

Usually ships in 3-6 days

0

55

Toro 55-3810

GEAR-39T

$58.99

$

Usually ships in 3-6 days

0

56

Toro 55-3790

GEAR-44T

$73.99

$

Usually ships in 3-6 days

0

57

Toro 55-3770

GEAR-49T

$73.99

$

Usually ships in 3-6 days

0

58

Toro 60-8890

Gear-Pinion
(Superseded to 104-7667)

$18.99

$

In Stock, only 1 left!

0

59

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 17

0

60

Toro 60-8710

CASE-GEAR, UPPER

$

$

Not available

Toro 62-6670

GEAR CASE ASM 3-SPEED

$1359.99

$

Usually ships in 3-6 days

0
