20747 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY (MODEL NO. 47PG7) Parts Diagram

Walk-Behind Mower

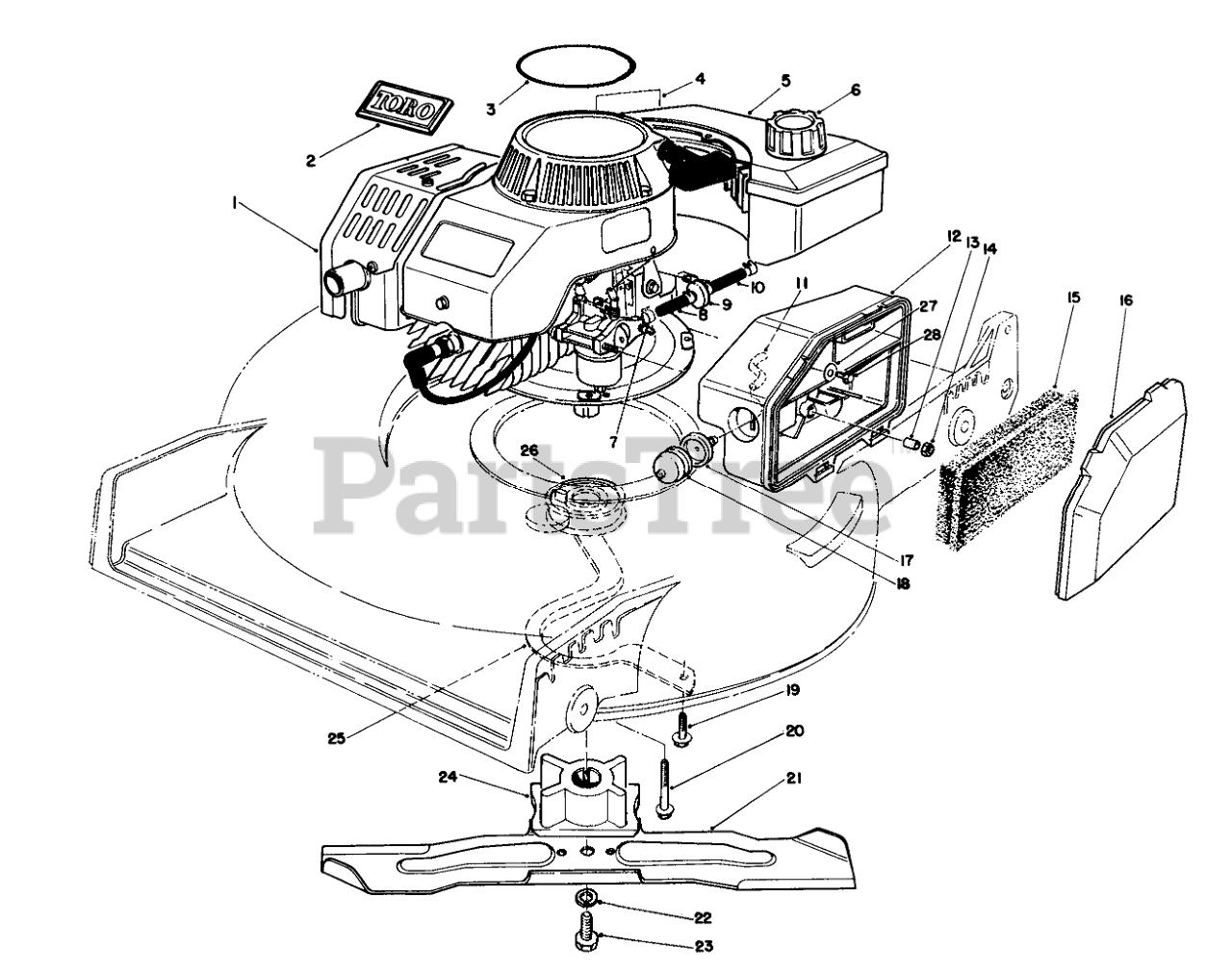

ENGINE ASSEMBLY (MODEL NO. 47PG7) Parts Diagram

  • Title
1

Engine (Complete)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 57-3110

DECAL- 2 CYC RECOIL

$

$

Not available

4

Toro 40-2440

Decal-Maintenance

$

$

Not available

5

Toro 81-0042

Gas Tank Assembly
(Superseded to 99-5263)

$

$

Not available

6

Toro 55-3575

GAS CAP ASM

$20.99

$

In Stock, only 1 left!

0

7

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

8

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

9

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

10

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

11

Toro 44-3172

HOSE-PRIMER

$6.49

$

In Stock, only 1 left!

0

12

Toro 63-9330

BODY-AIR CLEANER

$

$

Not available

13

Toro 62-3980

SPACER

$2.99

$

Usually ships in 3-6 days

0

14

$6.99

$

In Stock, Qty 5

0

15

Toro 63-9380

ELEMENT-AIR CLEANER

$12.99

$

In Stock, only 3 left!

0

16

Toro 63-9340

COVER-AIR CLEANER

$

$

Not available

17

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

18

Toro 44-3100

Bulb Primer
(Superseded to 66-7460)

$6.49

$

In Stock, Qty 20+

0

19

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

20

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

21

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

22

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

23

Toro 26-0670

SCREW-BLADE

$

$

Not available

24

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

25

Toro 40-5720

BELT GUIDE

$

$

Not available

26

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

27

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

28

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

Toro 46-1040

SPK PLUG WRENCH/HDLE

$

$

Not available

Toro 46-1041

WRENCH KEY

$11.99

$

Usually ships in 3-6 days

0
